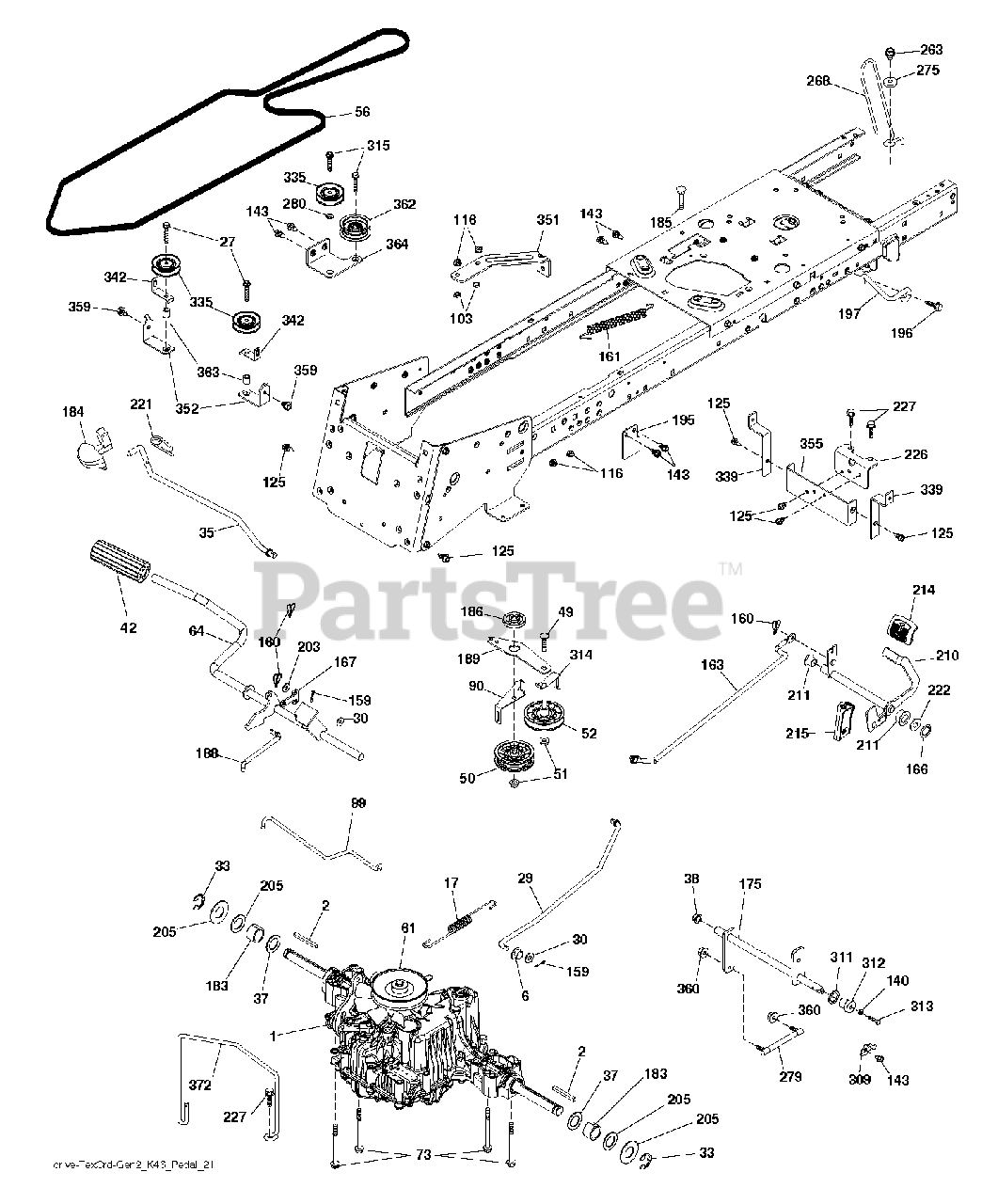

TC 242 (960510127-01) - Husqvarna 42" Garden Tractor (2015-07) DRIVE Parts Diagram

42" Garden Tractor

DRIVE Parts Diagram

  • Title
1

000000000

Note: Transaxle Tufftorq K46DF (446488) (Order parts from transaxle manufacturer )

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

6

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 532436227

SPRING
(Superseded to 583508701)

$7.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532442795

ROD ROD BRAKE K46 TCRD GEN 2
(Superseded to 583566601)

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532442781

BELT BELT DRIVE GROUND 114.25
(Superseded to 591065301)

$51.99

$

In Stock, Qty 9

0

61

Husqvarna 532445151

PULLEY PULLEY INPUT FLANGED TR
(Superseded to 583577801)

$48.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532443605

KEEPER KEEPER BELT CLUTCHING T
(Superseded to 583570001)

$5.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532443947

ROD ROD BYPASS CRD TEX GEN 2
(Superseded to 583571801)

$9.99

$

Usually ships in 3-10 days

0

103

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

140

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532442793

ROD ROD CONTROL SHIFT PEDAL TC
(Superseded to 583566501)

$40.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532429359

SHAFT SUBASM.SHAFT.CROSS.SHIFT
(Superseded to 583450901)

$21.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Husqvarna 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$66.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 10

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532433611

BELLCRANK BELLCRANK GROUNDDRI
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

195

Husqvarna 580456901

BRACKET.ROD.BRAKE

$7.49

$

Usually ships in 3-10 days

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 585658601

CLUTCH.ANTIROTATION.WIREFORM.

$4.99

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

$4.99

$

In Stock, Qty 20+

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

$37.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$20.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

226

Husqvarna 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Husqvarna 817490512

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

268

Husqvarna 532182402

GUARD MUFFLER
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

279

Husqvarna 532444283

LINK SUBASM. LINK AND STUD

$

$

Not available

280

$6.49

$

Usually ships in 3-10 days

0

309

Husqvarna 532165581

PLATE FASTENING LT

$4.99

$

Usually ships in 3-10 days

0

311

Husqvarna 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

312

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

314

Husqvarna 532444713

RETAINER KEEPER BELT
(Superseded to 583575801)

$4.99

$

Usually ships in 3-10 days

0

315

Husqvarna 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

335

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

339

Husqvarna 532436867

STRAP STRAP TORQUE K46 CRD TE
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

342

Husqvarna 532182682

BELT GUIDE
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

351

Husqvarna 532436998

BRACKET BRACKET DECK SWAY
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

352

Husqvarna 532435645

BRACKET BRACKET IDLER CRD TEX
(Superseded to 583506401)

$5.99

$

Usually ships in 3-10 days

0

355

Husqvarna 532435669

STRAP STRAP TORQUE K46 CRD TEX
(Superseded to 583506501)

$8.99

$

Usually ships in 3-10 days

0

359

Husqvarna 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days

0

360

Husqvarna 532444714

NUT NUT HEX CENTERLOCK 5/16-24
(Superseded to 583575901)

$3.99

$

Usually ships in 3-10 days

0

362

Husqvarna 532436812

IDLER.FLAT.2.25.INCH
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

363

Husqvarna 532442780

SPACER SPACER 343X63X.62
(Superseded to 583566301)

$4.99

$

Usually ships in 3-10 days

0

364

Husqvarna 532443032

BRACKET BRACKET IDLER CRD TEX
(Superseded to 583567401)

$9.49

$

Usually ships in 3-10 days

0

372

Husqvarna 587062701

RB KEEPER.BELT.TRXL.CRD2.K46
(Superseded to 582654901)

$13.99

$

Usually ships in 3-10 days

0
