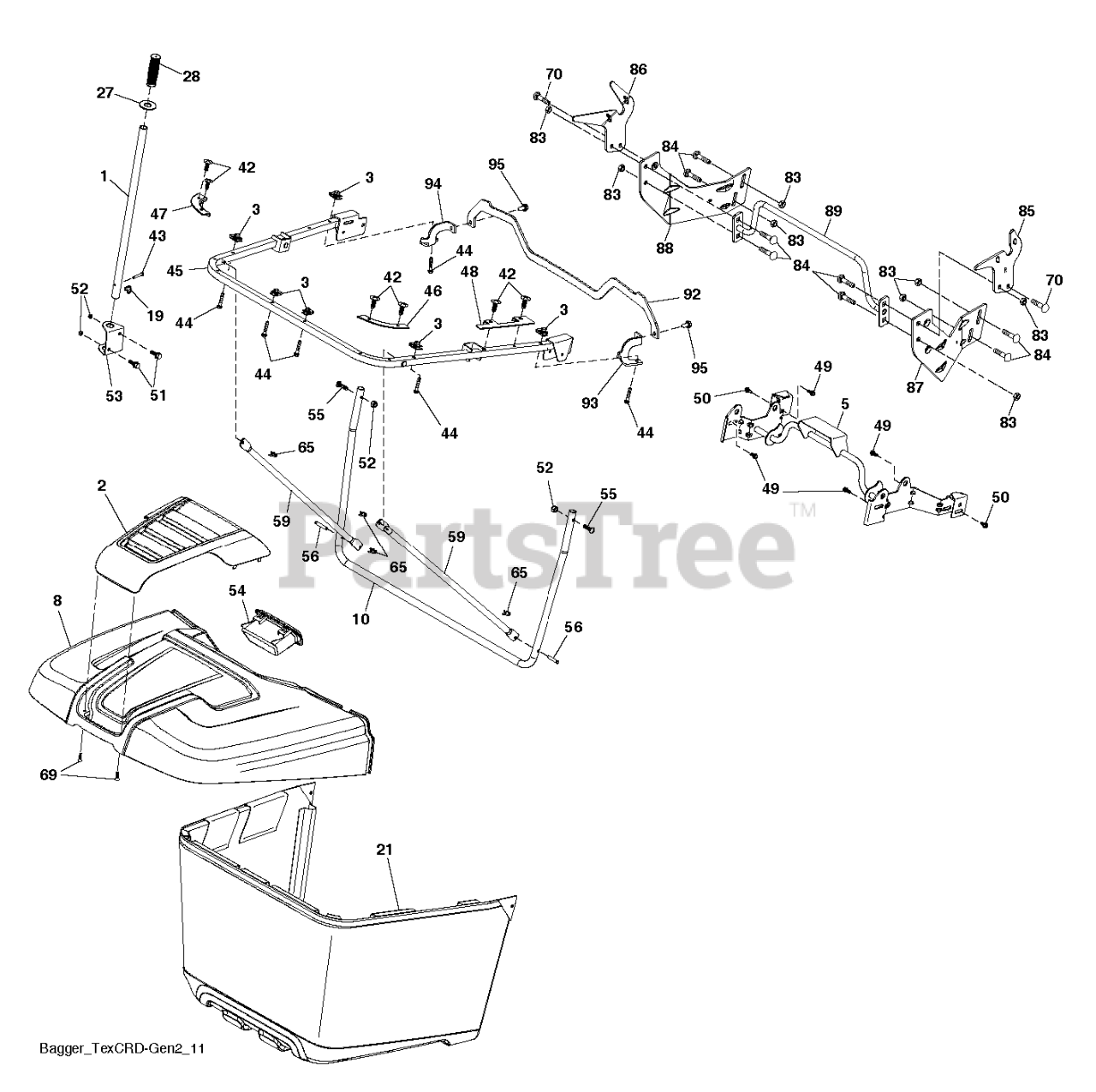

TC 238 TX (960510192-00) - Husqvarna 38" Garden Tractor (2019-06) BAGGER Parts Diagram

38" Garden Tractor

BAGGER Parts Diagram

  • Title
65

Husqvarna 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532444763

TUBE BAGGER SPREADER TUBE, TEX
(Superseded to 583826601)

$22.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532428610

TUBE.HANDLE.BAGGER.CRD/SRD.BLA

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532443762

FRAME TEX_CRD_GEN2 UPPER PIVOT
(Superseded to 583570401)

$133.99

$

Usually ships in 3-10 days

0

88

Husqvarna 581314702

BRACKET.LH.MID.SUP.BAG.TEX.CRD

$56.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532445541

CONNECTOR RIGHT BAGGER CORNER
(Superseded to 583580501)

$9.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

- -

Husqvarna 501705601

KIT.DUMP.MANUAL.BAGGER.SUPPORT
(Superseded to 587589001)

Note: Bagger Complete Kit (Includes Key#'s 1, 5, 10, 19, 21, 27, 28, 42, 43, 46, 47, 48, 49, 50, 52, 54, 56, 59, 65)

$136.99

$

Usually ships in 3-10 days

0

94

Husqvarna 593144502

BRCKT.ATTACHMENT.SUPP.LH.X431

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532443754

FRAME TEX_CRD_GEN2 UPPER U FRA
(Superseded to 583570301)

$113.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 532445529

GROMMET RUBBER GROMMET, DUMP T
(Superseded to 583580401)

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532443755

FRAME TEX_CRD_GEN2 BAGGER FRAM
(Superseded to 583825801)

$34.99

$

Usually ships in 3-10 days

0

95

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

2

Husqvarna 532447572

APPLIQUE.BAGGER
(Superseded to 583765001)

$39.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581337103

BAGGER.ASM.FABRIC.CRD.GII.HUSQ

$125.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532447575

BAGGER TOP
(Superseded to 583825901)

$194.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

83

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

86

Husqvarna 581314302

BRACKET.LH.PIVOT.MAN.DUMP.BLAC

$27.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532421801

SCREW,#8.FLAT.HEAD.DRILL.TIP
(Superseded to 583392101)

$

$

Not available

87

Husqvarna 581314802

BRACKET.RH.MID.SUP.BAG.TEX.CRD

$40.99

$

Usually ships in 3-10 days

0

92

Husqvarna 586052302

BRACKET.PNT.BAGGER.TOP.SUPPORT

$31.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532420306

PIN.CLEVIS.183

$9.49

$

Usually ships in 3-10 days

0

93

Husqvarna 593682102

BRACKET.SUPP.ATTACHMENT.RH.431

$2.49

$

Usually ships in 3-10 days

0

70

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

53

Husqvarna 532444195

BRACKET DUMP HANDLE BRACKET, T
(Superseded to 583573601)

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532444080

BAFFLE BAGGER SIDE CLOSE-OUT
(Superseded to 583573101)

$9.49

$

Usually ships in 3-10 days

0

85

Husqvarna 581314402

BRACKET.RH.PIVOT.MAN.DUMP.BLAC

$27.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

89

Husqvarna 581315104

TUBE.WELD.OFSET.STRUT.BAG.X431

$36.99

$

Usually ships in 3-10 days

0

51

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

54

Husqvarna 532447218

HANDLE BAGGER TOP FRONT HANDLE
(Superseded to 583827701)

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

47

Husqvarna 532444079

CONNECTOR LEFT BAGGER CORNER C
(Superseded to 583573001)

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532440428

CLIP CHRISTMAS TREE CLIP
(Superseded to 583548101)

$3.49

$

Usually ships in 3-10 days

0
