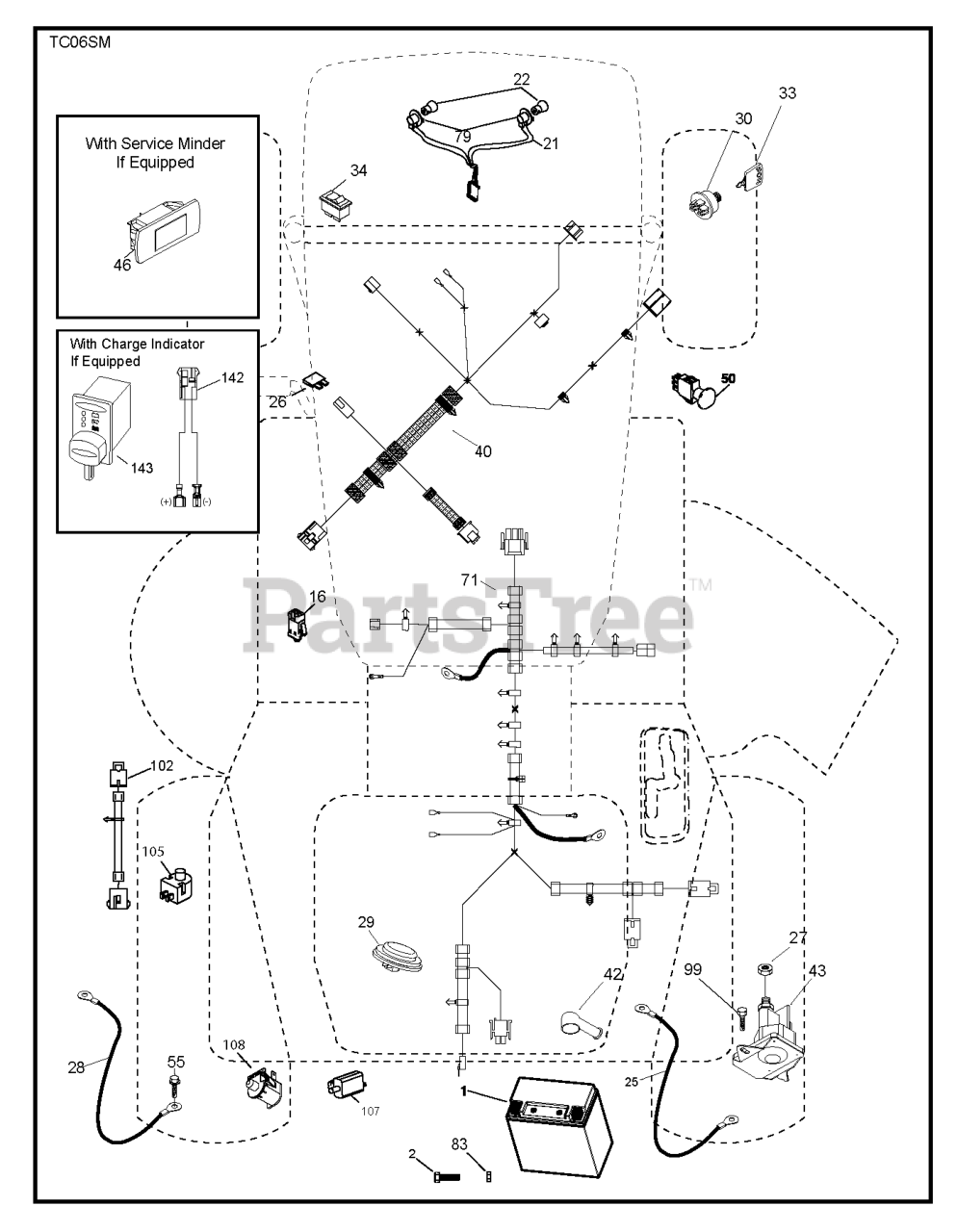

TC 238 (960510163-01) - Husqvarna 38" Garden Tractor (2017-09) ELECTRICAL Parts Diagram

38" Garden Tractor

ELECTRICAL Parts Diagram

  • Title
1

Husqvarna 532437157

BATTERY BATTERY 14AH 12V LEOC
(Superseded to 583516701)

$136.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

108

Husqvarna 589500301

SWITCH.SNPMT.NCBT.CRD.MTL.BKPL

$13.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

40

Husqvarna 587268901

HARNESS.DASH.EL.SRD.CRD.RDY.ST

$125.99

$

Usually ships in 3-10 days

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532440820

HARNESS
(Superseded to 587268701)

$113.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

2

Husqvarna 532440923

SCREW.HEX.HEAD.CAP.M6 X1.12W

$

$

Not available

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, Qty 7

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532441262

HARNESS ASSY
(Superseded to 583555601)

$15.99

$

Usually ships in 3-10 days

0

107

Husqvarna 532180379

.WITCH.FULL BAGGER.INDICATOR
(Superseded to 583100701)

$15.99

$

In Stock, only 1 left!

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

25

Husqvarna 589323701

CABLE.BATT.8GA.RED9.CRD2.5

$10.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532436774

NUT NUT SQUARE
(Superseded to 594086501)

$2.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

28

Husqvarna 589323601

CABLE.BATT.BLCK10.SLV.CRD2.5

$11.99

$

Usually ships in 3-10 days

0

34

$9.49

$

In Stock, only 2 left!

0

22

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

46

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0
