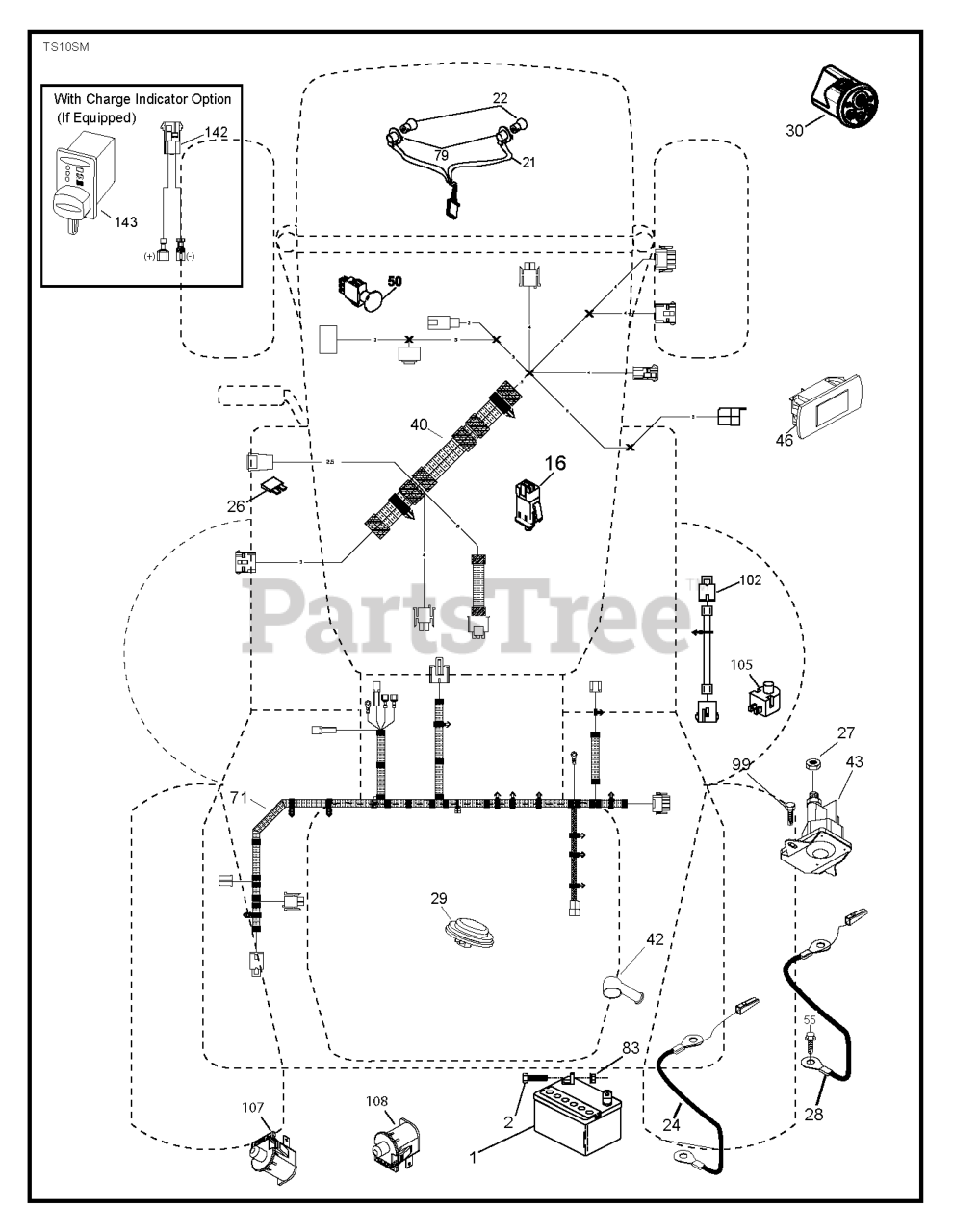

TC 238 (960510159-01) - Husqvarna 38" Garden Tractor (2016-10) ELECTRICAL Parts Diagram

38" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 532437157

BATTERY BATTERY 14AH 12V LEOC
(Superseded to 583516701)

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532440923

SCREW.HEX.HEAD.CAP.M6 X1.12W

$

$

Not available

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 589443001

CABLE.BAT.8GA.TCRD.GE

$

$

Not available

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Husqvarna 589443001

CABLE.BAT.8GA.TCRD.GE

$

$

Not available

29

Husqvarna 581429302

SWITCH.SEAT.OPC.GRY.BUTTON/CAP

$26.99

$

In Stock, only 1 left!

0

30

Husqvarna 584790603

SMART SWITCH MY14 CRD
(Superseded to 586590707)

$341.99

$

Usually ships in 3-10 days

0

40

Husqvarna 585216801

HARNESS.DASH.EL.SIS.RECT.CRD

$

$

Not available

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

46

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, only 4 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 585216601

HARNESS CHAS,TEX,SIS,CRD SMART

$

$

Not available

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532436774

NUT NUT SQUARE
(Superseded to 594086501)

$2.49

$

Usually ships in 3-10 days

0

99

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 13

0

102

Husqvarna 532441262

HARNESS ASSY
(Superseded to 583555601)

$15.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

107

Husqvarna 532180379

.WITCH.FULL BAGGER.INDICATOR
(Superseded to 583100701)

$15.99

$

In Stock, only 1 left!

0

108

Husqvarna 589500201

SWITCH.SNPMT.N0BT.CRD

$22.99

$

Usually ships in 3-10 days

0
