TC 238 (960510137-00) - Husqvarna 38" Garden Tractor (2015-03) CHASSIS / FRAME Parts Diagram

38" Garden Tractor

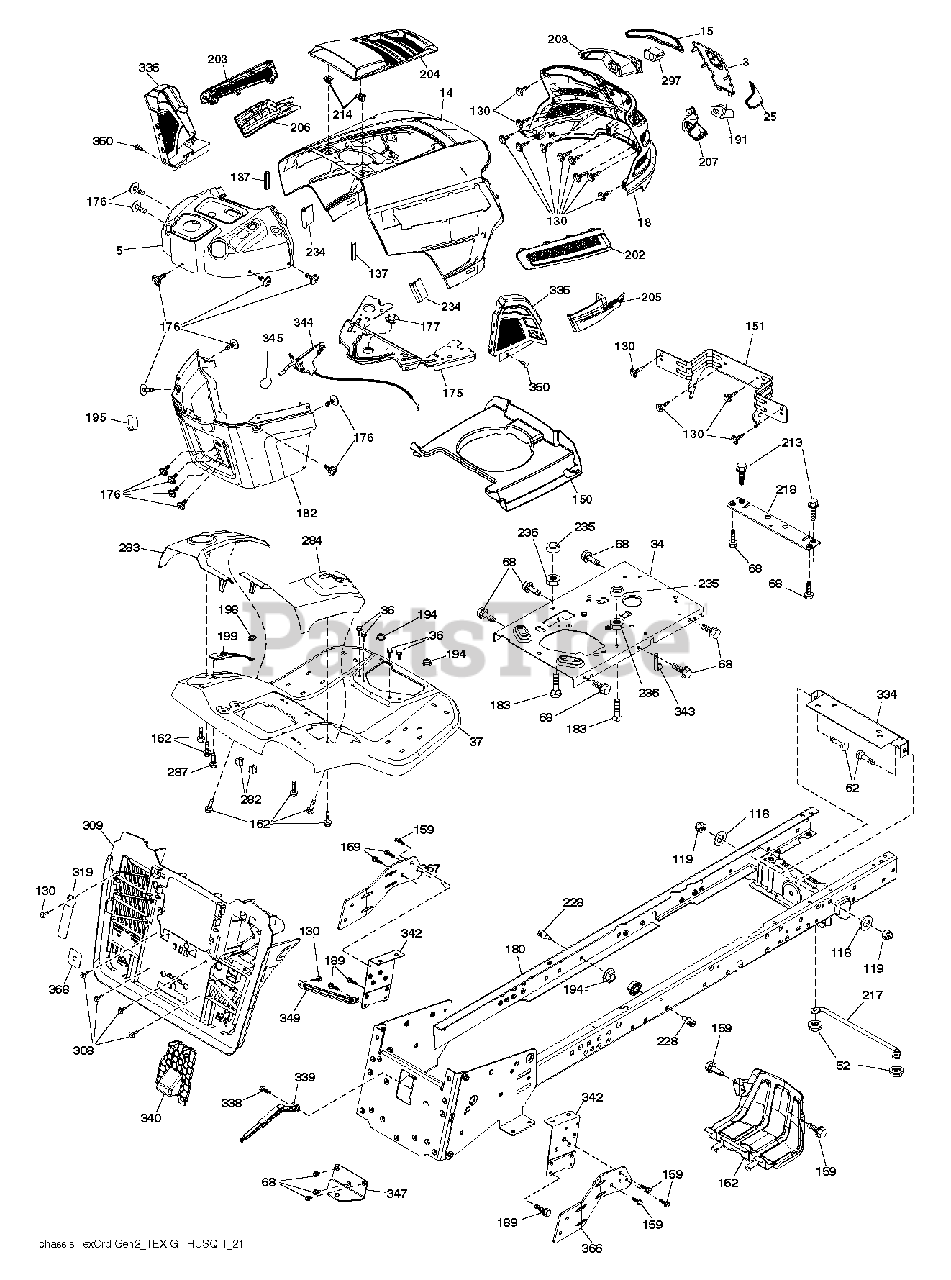

CHASSIS / FRAME Parts Diagram

  • Title

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 581466803

UPPER.GT2.SVC.MINDING.PTO.H.
(Superseded to 590748821)

$45.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

Note: LH

$13.99

$

In Stock, only 1 left!

0

18

Husqvarna 532440653

GRILLE.SUBSTRATE.2011.
(Superseded to 597247201)

$100.99

$

In Stock, only 1 left!

0

25

Husqvarna 532443385

LENS.HEADLIGHT.RH.GTII.2011

Note: RH

$13.99

$

In Stock, only 1 left!

0

34

Husqvarna 580910901

PLATE.ENGINE.10GA.CRD.GENII

$

$

Not available

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441419

FENDER.TEX.SRD.CRD.BASE

$182.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

68

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

118

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

119

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$17.99

$

In Stock, only 2 left!

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Husqvarna 583902701

WELDMENT.CHASSIS.TEX.CRD.GEN.2

$159.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532438967

DASH DASH LOWER
(Superseded to 583536501)

$79.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

198

Husqvarna 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

In Stock, only 1 left!

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, only 3 left!

0

204

Husqvarna 532435714

VENT.TOP.HUSQ.GT2
(Superseded to 587485801)

$26.99

$

In Stock, only 3 left!

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$14.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$17.99

$

In Stock, only 1 left!

0

207

Husqvarna 532439734

BEZEL LIGHT.RH.GT.II.MYLAR
(Superseded to 587464801)

Note: RH

$13.99

$

In Stock, Qty 10

0

208

Husqvarna 532439735

BEZEL LIGHT.LH.GT.II.MYLAR
(Superseded to 587464501)

Note: LH

$13.99

$

In Stock, only 1 left!

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

283

Husqvarna 532447212

CONSOLE.DECKLIFT.CRDII.498

$148.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532447220

CONSOLE.PEDAL.HYDRO

$62.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

In Stock, only 1 left!

0

308

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

309

Husqvarna 581328911

BACKPLATE.ASM.TEX.CRD.GEN2.1
(Superseded to 581328910)

$

$

Not available

319

Husqvarna 581313906

LEVER.BAG.CRDII.ANTIROTATION

$14.99

$

Usually ships in 3-10 days

0

334

Husqvarna 532442537

BRACKET.ENGINE
(Superseded to 583564401)

$12.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

In Stock, only 1 left!

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, only 1 left!

0

338

Husqvarna 532436640

BOLT BOLT SHOULDER
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

339

Husqvarna 532436641

LEVER LEVER BAGGER
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

340

Husqvarna 581329001

BATTERY.DOOR.TEX.CRD.GEN.2,1
(Superseded to 581328906)

$125.99

$

Usually ships in 3-10 days

0

342

Husqvarna 532435938

SUPPORT SUPPORT FENDER
(Superseded to 583507901)

$20.99

$

Usually ships in 3-10 days

0

343

Husqvarna 532440749

CLIP CLIP
(Superseded to 582671501)

$2.99

$

Usually ships in 3-10 days

0

344

Husqvarna 532438970

CONTROL.EZ.MULCH.TEX/CRD
(Superseded to 583536701)

$133.99

$

Usually ships in 3-10 days

0

345

Husqvarna 532440639

RP KNOB.OVAL.TAPERED.3/8-16BLK
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0

347

Husqvarna 532442887

HITCH HITCH TOW TEX CRD GEN 2
(Superseded to 583566701)

$14.99

$

Usually ships in 3-10 days

0

349

Husqvarna 532436606

BRACKET.SUPPORT.LRVB/CRD
(Superseded to 583509701)

$6.99

$

Usually ships in 3-10 days

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, only 1 left!

0

366

Husqvarna 581314602

BRACKET.RH.FRONT.BAGGER.BLACK

$34.99

$

Usually ships in 3-10 days

0

367

Husqvarna 581314502

BRACKET.LH.FRONT.BAGGER.BLACK

$34.99

$

Usually ships in 3-10 days

0

368

Husqvarna 581424801

FULL.LEVER.BAGGER.TEX.CRD

$6.49

$

Usually ships in 3-10 days

0

--

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

--

Husqvarna 586297601

PLUG.LIGHT.SWITCH.GREY

$

$

Not available

--

Husqvarna 532400944

BUMPER.FRONT.BLACK
(Superseded to 531307007)

$83.99

$

Usually ships in 3-10 days

0
