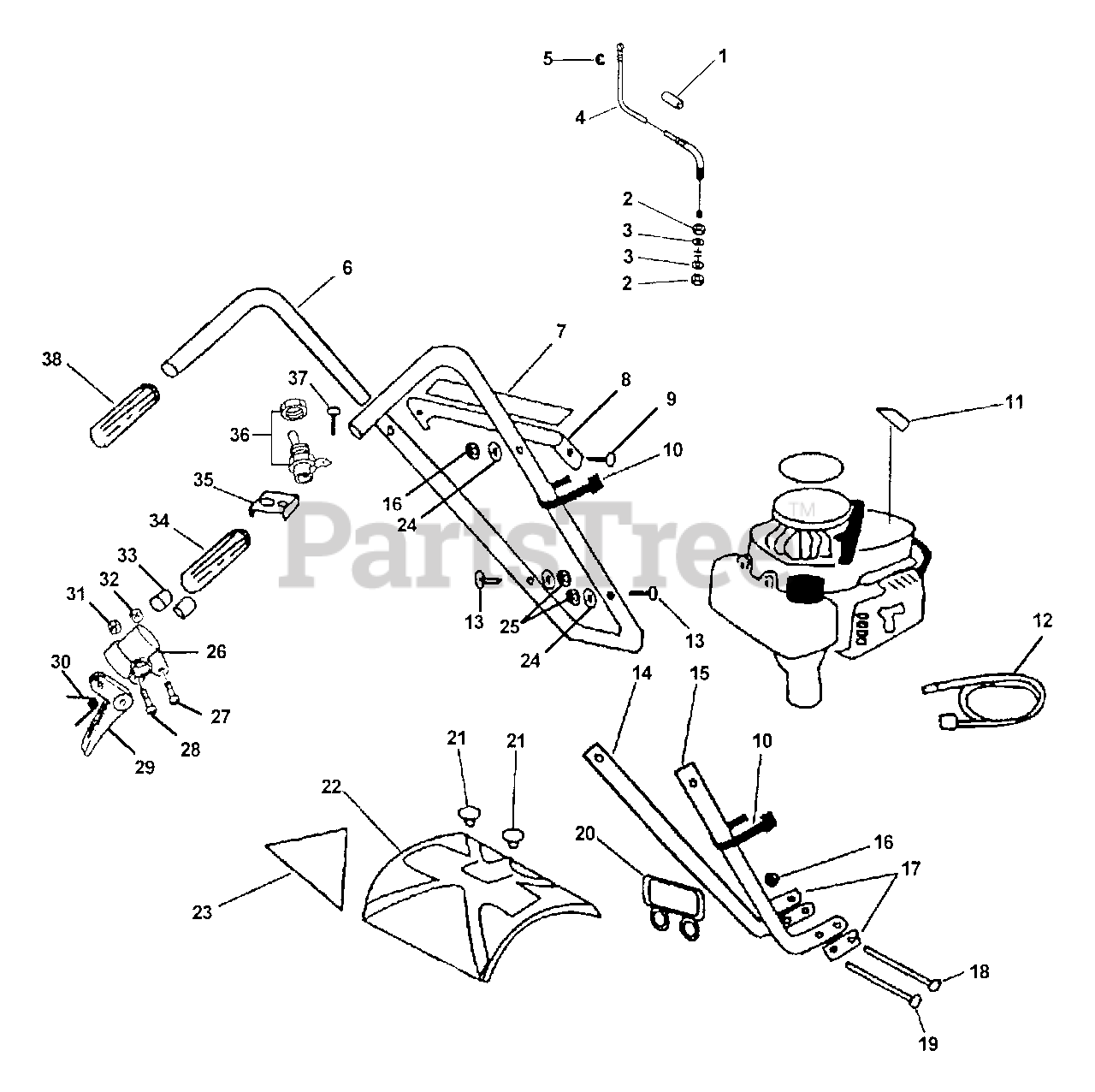

TC-2100 - Echo Tiller Cultivator (Type 1) (SN: 001001 - 999999) Handles, Shield, Throttle, Stop Switch Parts Diagram

Tiller Cultivator (Type 1)

Handles, Shield, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, Qty 5

0

2

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

3

Echo 90061000006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 6

0

4

Echo 17800111520

CABLE, THROTTLE
(Superseded to V430004200)

$18.99

$

In Stock, Qty 7

0

5

Echo 90070007032

RING, RETAINING - 7/32"
(Superseded to V583000020)

$0.99

$

In Stock, Qty 8

0

6

Echo 35101013350

HANDLE - UPPER
(Superseded to 35101013351)

$67.99

$

Usually ships in 2-4 days

0

7

Echo 89016011760

LABEL - CAUTION

$3.49

$

Usually ships in 2-4 days

0

8

Echo 35131213350

BRACKET, HANDLE

$14.99

$

Usually ships in 2-4 days

0

9

Echo 90001708040

BOLT - 1/4 X 1-1/4"

$0.99

$

Usually ships in 2-4 days

0

10

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 8

0

11

Echo 89011211760

LABEL - MODEL TC-2100 TYPE 1E

$3.99

$

Usually ships in 2-4 days

0

12

Echo 16201013350

LEAD - GROUND
(Superseded to V485000250)

$

$

Not available

13

Echo 90001808040

BOLT - 1/4 X 1-1/4"

$0.99

$

Usually ships in 2-4 days

0

14

Echo 35121013350

HANDLE, LOWER - LEFT
(Superseded to C701000990)

$30.99

$

Usually ships in 2-4 days

0

15

Echo 35111013350

HANDLE, LOWER - RIGHT
(Superseded to C701000980)

$30.99

$

Usually ships in 2-4 days

0

16

Echo 90003100008

LOCKNUT - 1/4"
(Superseded to Discontinued)

$

$

Not available

17

Echo 69401113350

PLATE

$4.99

$

Usually ships in 2-4 days

0

18

Echo 90001708096

BOLT - 1/4 X 3"

$1.49

$

Usually ships in 2-4 days

0

19

Echo 90001708104

BOLT - 1/4 X 3-1/4"

$0.99

$

In Stock, only 3 left!

0

20

Echo 30581113350

HANDLE - FRONT
(Superseded to C800000150)

$15.99

$

In Stock, only 3 left!

0

21

Echo 90002108016

BOLT - 1/4 X 1/2"

$1.99

$

Usually ships in 2-4 days

0

22

Echo 69401013350

SHIELD, BLADE
(Superseded to 69401013351)

$22.99

$

Usually ships in 2-4 days

0

23

Echo 89016811760

LABEL - CAUTION
(Superseded to X505001210)

$3.49

$

Usually ships in 2-4 days

0

24

Echo 16389213350

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

25

Echo 90003208032

NUT - 1/4"

$0.99

$

Usually ships in 2-4 days

0

26

Echo 17802408730

BRACKET, TRIGGER

$7.49

$

In Stock, only 3 left!

0

27

Echo 90022005028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

28

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

29

Echo 17801006460

TRIGGER, THROTTLE

$4.99

$

In Stock, only 4 left!

0

30

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 7

0

31

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

32

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 17811113350

CLIP

$2.99

$

In Stock, only 2 left!

0

34

Echo 35131527931

GRIP, HANDLE - RIGHT

$5.49

$

In Stock, only 1 left!

0

35

Echo 16381013350

BRACKET, SWITCH

$8.99

$

Usually ships in 2-4 days

0

36

Echo 16340002160

IGNITION SWITCH KIT

$8.49

$

In Stock, only 3 left!

0

37

Echo 90025305010

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

38

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, only 3 left!

0
