TC-210 i - Echo Tiller Cultivator (SN: 07001001 - 07999999) Carburetor -- C1U-K54A Parts Diagram

Tiller Cultivator

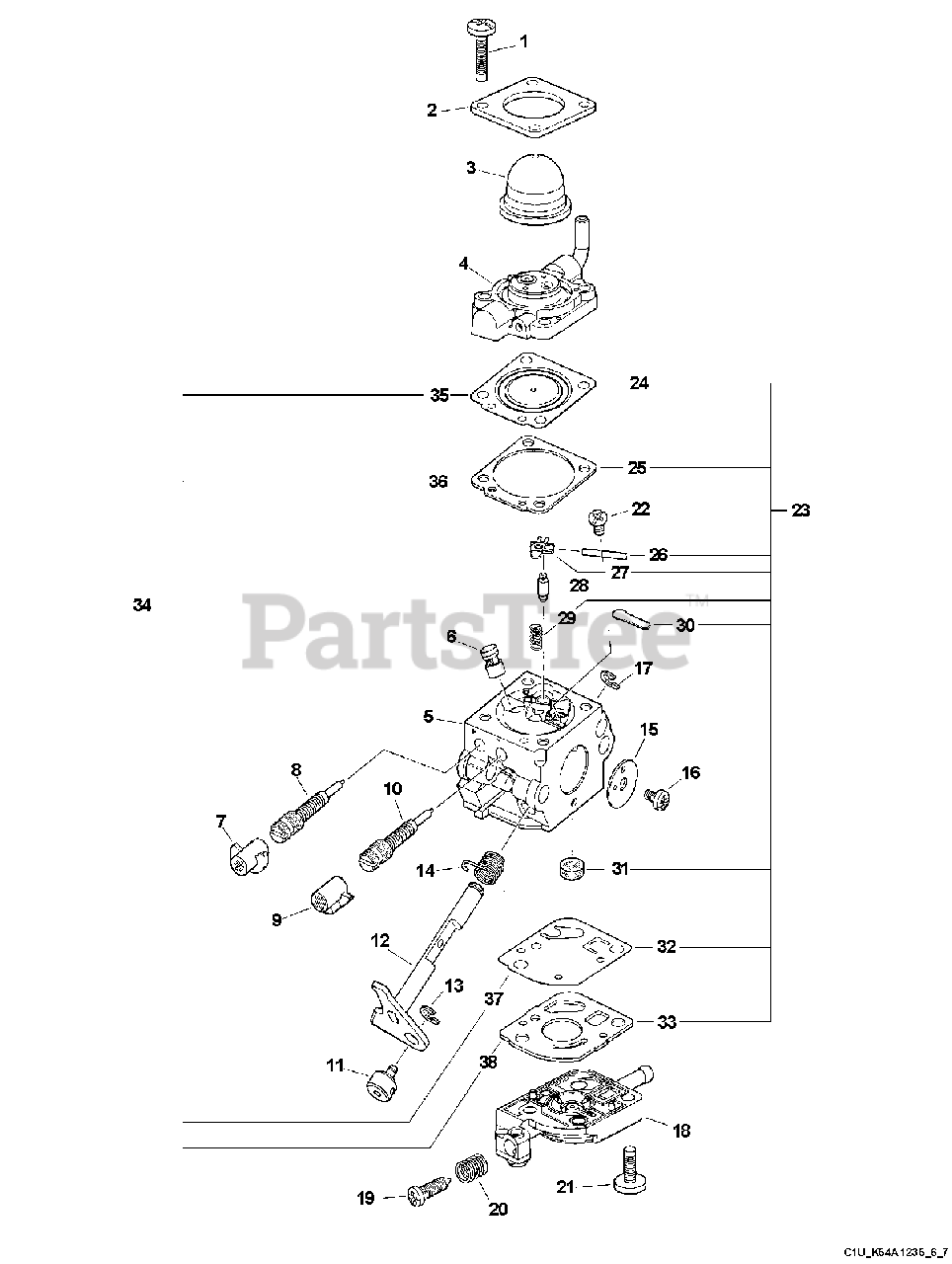

Carburetor -- C1U-K54A Parts Diagram

  • Title

Echo 12520013123

CARBURETOR C1U-K54
(Superseded to 12520013124)

$92.99

$

In Stock, Qty 7

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo P005000620

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 17

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo P005000600

BASE, PURGE
(Superseded to P005000970)

$20.99

$

In Stock, only 1 left!

0

5

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

6

Echo 12537613120

NOZZLE, CHECK VALVE

$6.49

$

Usually ships in 2-4 days

0

7

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

8

Echo 12532013310

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

9

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

10

Echo 12531813120

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

11

$4.49

$

Usually ships in 2-4 days

0

12

Echo 12531713310

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

13

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

14

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

15

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

16

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

18

Echo 12532412820

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

19

Echo 12533406960

SCREW, IDLE ADJUST

$4.99

$

Usually ships in 2-4 days

0

20

Echo 12533306960

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 10

0

21

Echo 12531012820

SCREW, PUMP COVER

$1.49

$

Usually ships in 2-4 days

0

22

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

23

Echo 12530012820

REPAIR KIT

Note: Includes ITEMS 24-33

$15.99

$

In Stock, Qty 7

0

24

------------------

DIAPHRAGM, METERING

$

$

Not available

25

------------------

GASKET, DIAPHRAGM

$

$

Not available

26

------------------

PIN, METERING LEVER

$

$

Not available

27

------------------

LEVER, METERING

$

$

Not available

28

------------------

VALVE, INLET NEEDLE

$

$

Not available

29

------------------

SPRING, METERING LEVER

$

$

Not available

30

------------------

PLUG, WELCH

$

$

Not available

31

------------------

STRAINER

$

$

Not available

32

------------------

DIAPHRAGM, PUMP

$

$

Not available

33

------------------

GASKET, PUMP

$

$

Not available

34

Echo 12530320560

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 35-38

$8.99

$

In Stock, only 4 left!

0

35

------------------

DIAPHRAGM, METERING

$

$

Not available

36

------------------

GASKET, DIAPHRAGM

$

$

Not available

37

------------------

DIAPHRAGM, PUMP

$

$

Not available

38

------------------

GASKET, PUMP

$

$

Not available
