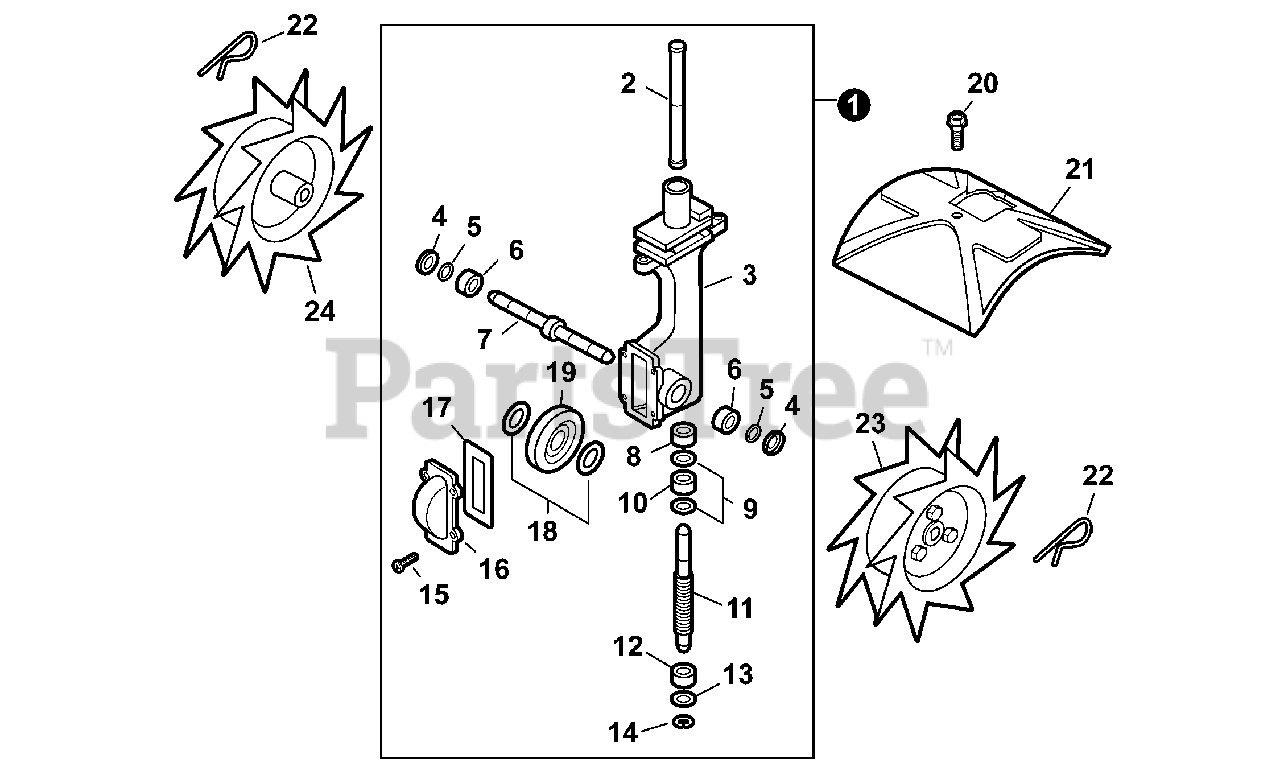

TC-210 - Echo Tiller Cultivator (SN: E14813001001 - E14813999999) Tines, Gear Case, Shield Parts Diagram

Tiller Cultivator

Tines, Gear Case, Shield Parts Diagram

  • Title

1

Echo 900106

GEAR CASE ASSY

Note: Includes Items 2-19

$202.99

$

Usually ships in 2-4 days

0

2

Echo 60531012350

SHAFT, DRIVE

$63.99

$

Usually ships in 2-4 days

0

3

Echo 60541012350

CASE, GEAR

$136.99

$

Usually ships in 2-4 days

0

4

Echo 60541713350

SEAL

$1.49

$

In Stock, only 4 left!

0

5

Echo 60542813350

RETAINER

$1.49

$

Usually ships in 2-4 days

0

6

Echo 60422113350

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

7

Echo 60531413350

AXLE

$74.99

$

Usually ships in 2-4 days

0

8

Echo 60541813350

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

9

Echo 60532413350

WASHER

$4.49

$

Usually ships in 2-4 days

0

10

Echo 60543313350

BEARING, THRUST

$6.99

$

Usually ships in 2-4 days

0

11

Echo 60531313350

GEAR, WORM

$127.99

$

Usually ships in 2-4 days

0

12

Echo 60541812350

BEARING, ROLLER

$13.99

$

Usually ships in 2-4 days

0

13

Echo 60551112350

WASHER

$1.99

$

Usually ships in 2-4 days

0

14

Echo 90070200015

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

15

Echo 90008200100

SCREW, TAPPING

$0.99

$

Usually ships in 2-4 days

0

16

Echo 66002012350

COVER, GEAR CASE

$3.99

$

Usually ships in 2-4 days

0

17

Echo 60541212350

GASKET, GEAR CASE

$2.99

$

In Stock, only 2 left!

0

18

Echo 60531613350

WASHER, THRUST 8

$3.99

$

Usually ships in 2-4 days

0

19

Echo 60531513350

GEAR, WORM

$121.99

$

Usually ships in 2-4 days

0

20

Echo 90002108016

BOLT 1/4×1/2

$1.99

$

Usually ships in 2-4 days

0

21

Echo C550000300

SHIELD, DEBRIS

$22.99

$

Usually ships in 2-4 days

0

22

Echo 60561213350

PIN, SNAP

$1.49

$

In Stock, Qty 7

0

23

Echo 69001013350

TINE, RIGHT

$65.99

$

In Stock, Qty 5

0

24

Echo 69001113350

TINE, LEFT

$65.99

$

In Stock, only 1 left!

0
