TC 138 T (960510198-00) - Husqvarna 38" Garden Tractor (2021-03) MOWER DECK / CUTTING DECK Parts Diagram

38" Garden Tractor

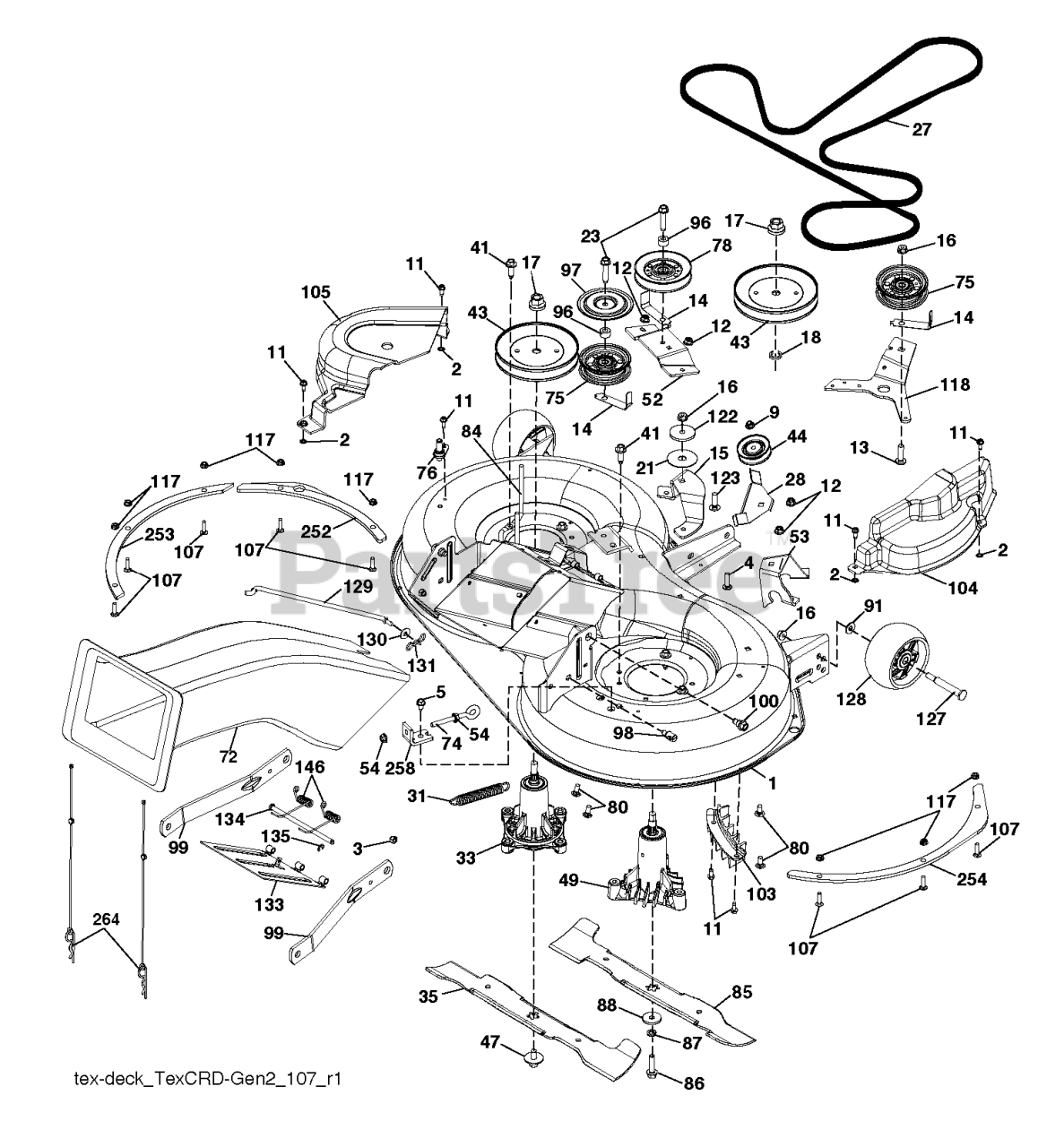

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

9

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, Qty 8

0

52

Husqvarna 595098003

BRACKET 97 CRD CENTER V-IDLER

$24.99

$

Usually ships in 3-10 days

0

133

Husqvarna 532435538

DOOR
(Superseded to 583505301)

$13.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

107

Husqvarna 592807801

BOLT CUP HEAD SQUARE NECK 1/4-

$4.99

$

In Stock, only 3 left!

0

117

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

104

Husqvarna 592848101

GUARD 97CRD RH MANDREL COVER;

$37.99

$

Usually ships in 3-10 days

0

15

Husqvarna 592854702

BRACKET CRD IDLER ARM MOUNT BL

$26.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$53.99

$

In Stock, only 1 left!

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

17

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

128

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

80

Husqvarna 595901601

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 581454103

CHUTE.SLOTTED.HOLES.TEX.CRD.II

$91.99

$

Usually ships in 3-10 days

0

75

Husqvarna 597025001

CLG

$26.99

$

In Stock, Qty 6

0

122

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

127

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

105

Husqvarna 532438744

MANDREL MANDREL COVER LH
(Superseded to 583534001)

$28.99

$

In Stock, only 1 left!

0

49

Husqvarna 532165579

MANDREL ASM.CRD RH 6PT STAR

$91.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 1 left!

0

44

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

27

Husqvarna 599249201

Belts

$40.99

$

Usually ships in 3-10 days

0

47

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532173902

REPL BY 532 1467-63
(Superseded to 532146763)

$

$

Not available

146

Husqvarna 532445896

SPRING SPRING: EZ MULCH DOOR
(Superseded to 583582001)

$3.49

$

Usually ships in 3-10 days

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

98

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

103

Husqvarna 532436992

GUARD GUARD FRONT VENT
(Superseded to 583514601)

$8.99

$

Usually ships in 3-10 days

0

264

Husqvarna 589392902

Retainers

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

118

Husqvarna 592854802

ARM 97 CRD IDLER ARM BLACK E-C

$26.99

$

Usually ships in 3-10 days

0

134

Husqvarna 593889501

Pins

$5.99

$

Usually ships in 3-10 days

0

87

Husqvarna 596238701

Washers

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

--

Husqvarna 597001001

Decks

$

$

Not available

258

Husqvarna 592856001

BRACKET CRD ELEC DECK DRIVE TE

$10.99

$

Usually ships in 3-10 days

0

253

Husqvarna 585308805

PLATE.REINFORCEMENT.LHS.X431

$

$

Not available

135

Husqvarna 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

254

Husqvarna 585309005

PLATE.REINFORCEMENT.LHS.X431

$13.99

$

Usually ships in 3-10 days

0

53

Husqvarna 595098103

BRACKET 97 CRD ANGLED V-IDLER

$27.99

$

Usually ships in 3-10 days

0

23

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

91

Husqvarna 596134901

GSPH

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"

$20.99

$

Usually ships in 3-10 days

0

31

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

252

Husqvarna 585308705

PLATE.REINFORCEMENT.X431

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 5

0

33

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$56.99

$

In Stock, Qty 20+

0

3

Husqvarna 596135701

GSPW Nuts

Note: RH

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 592855602

KEEPER 97 CRD ANGLED IDLER KEE

$26.99

$

Usually ships in 3-10 days

0

74

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 597000801

Service Kit

$455.99

$

Usually ships in 3-10 days

0

4

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

54

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

123

Husqvarna 596987501

Bolts

$4.99

$

In Stock, only 3 left!

0
