TC 138 - Husqvarna 38" Garden Tractor (Original) MOWER DECK / CUTTING DECK Parts Diagram

38" Garden Tractor

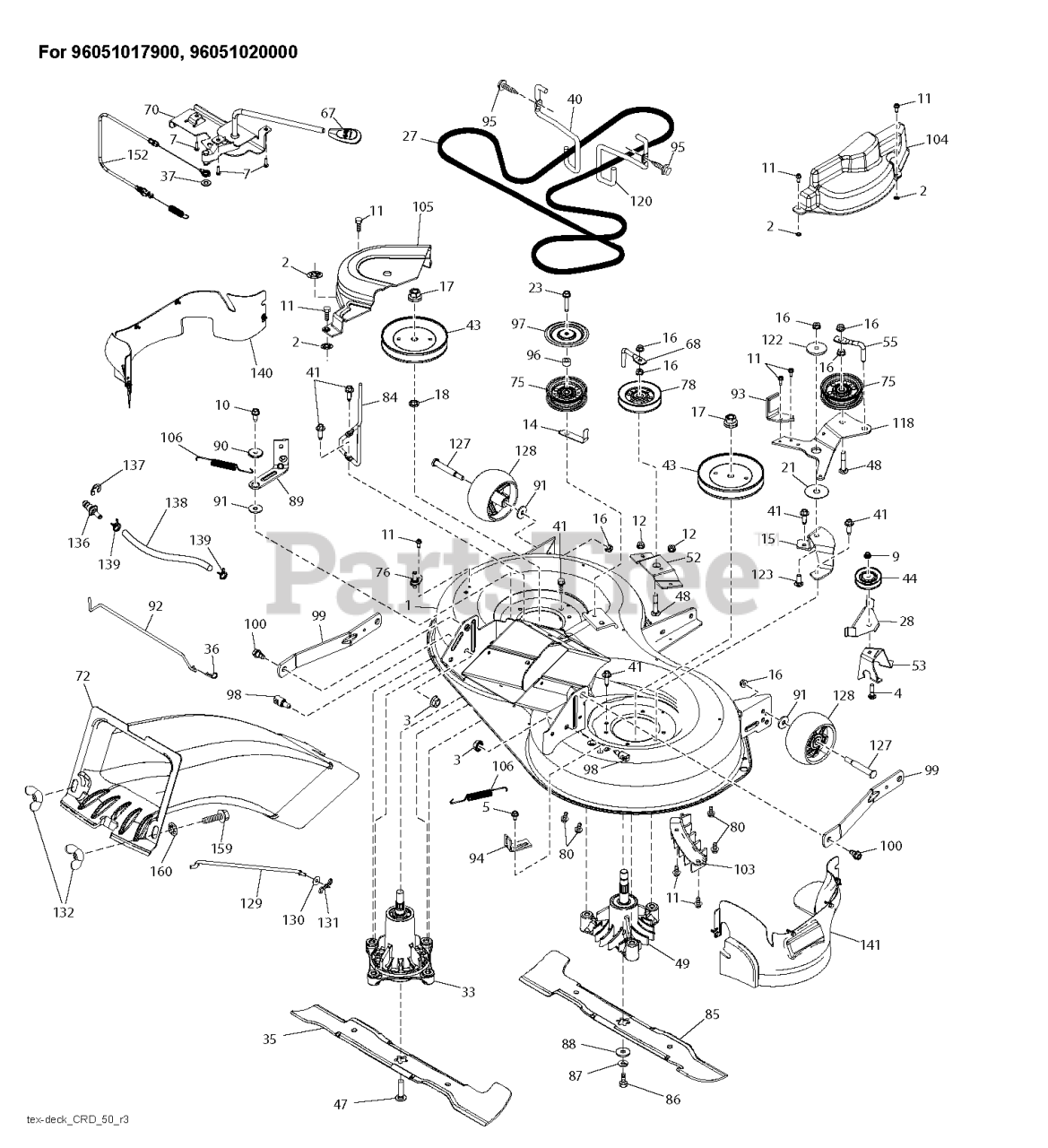

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

33

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$56.99

$

In Stock, Qty 20+

0

136

Husqvarna 532439639

PLUG WASHOUT PORT HOOKUP
(Superseded to 583544201)

$6.49

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

141

Husqvarna 501579301

GUARD.ASSEMBLY.97.RH.FRENCH

$

$

Not available

52

Husqvarna 599210703

Idler

$20.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

49

Husqvarna 529910001

KIT.MANDREL.3 POINT

$46.99

$

Usually ships in 3-10 days

0

--

Husqvarna 596551301

CUTTING DECK DECK.SVC.97.TXCRD

Note: Complete deck assy

$848.99

$

Usually ships in 3-10 days

0

140

Husqvarna 598660801

GUARD.ASM.LH.CRD.FRENCH.97CM

Note: For 96051020000

$56.99

$

Usually ships in 3-10 days

0

123

Husqvarna 596987501

Bolts

$4.99

$

In Stock, only 3 left!

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532436992

GUARD GUARD FRONT VENT
(Superseded to 583514601)

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

91

Husqvarna 596134901

GSPH

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532439640

1/2" BARB.DECK.WASHOUT.PORT
(Superseded to 583544301)

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

78

Husqvarna 532173902

REPL BY 532 1467-63
(Superseded to 532146763)

$

$

Not available

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

98

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 599365301

Belts

Note: For 96051020000

$66.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

92

Husqvarna 592855701

LINK 97 CRD MANUAL DRIVE BRAKE

$9.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

104

Husqvarna 592848101

GUARD 97CRD RH MANDREL COVER;

$37.99

$

Usually ships in 3-10 days

0

84

Husqvarna 589676102

KEEPER.BLT.PNT.MNDRL.PULL.6.25
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

138

Husqvarna 532440743

HOSE.3/8ID.BULK.12"

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

17

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

106

Husqvarna 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

68

Husqvarna 598903802

Keepers

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 597025001

CLG

$26.99

$

In Stock, Qty 6

0

132

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

89

Husqvarna 532438124

ARM.BRAKE.97.LH
(Superseded to 583527001)

$24.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

120

Husqvarna 532197259

KEEPER BELT RH

$

$

Not available

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

93

Husqvarna 592854902

BRAKE CRD RH BRAKE ARM BLACK E

$17.99

$

Usually ships in 3-10 days

0

53

Husqvarna 595098103

BRACKET 97 CRD ANGLED V-IDLER

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

87

Husqvarna 596238701

Washers

$4.99

$

In Stock, Qty 19

0

152

Husqvarna 532440488

CABLE CABLE CLUTCH MANUAL W/S
(Superseded to 583548401)

$37.99

$

Usually ships in 3-10 days

0

12

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

37

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

141

Husqvarna 598660701

GUARD.ASM.RH.CRD.FR.97CM.SLOT

Note: For 96051020000

$68.99

$

Usually ships in 3-10 days

0

27

Husqvarna 597122201

BELT CRD DECK DRIVE

Note: For all except 96051020000

$54.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

9

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

139

Husqvarna 596867401

Clamps

$2.49

$

Usually ships in 3-10 days

0

72

Husqvarna 582035601

CHUTE.TEX.CRD.GEN I.97 UPPER

$84.99

$

Usually ships in 3-10 days

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

128

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 592854702

BRACKET CRD IDLER ARM MOUNT BL

$26.99

$

Usually ships in 3-10 days

0

127

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

129

Husqvarna 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, Qty 5

0

94

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

140

Husqvarna 501579401

GUARD.ASSEMBLY.97.LH.FRENCH
(Superseded to 598660801)

$56.99

$

Usually ships in 3-10 days

0

48

Husqvarna 596136301

Bolts

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

55

Husqvarna 598969201

Wires

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

4

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 592970001

KIT.SVC.DECK.WLD.97CM.TEX.498

$

$

Not available

47

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

137

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 595901601

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

159

Husqvarna 872140614

BOLT

$4.99

$

Usually ships in 3-10 days

0

118

Husqvarna 599236302

Clutches

$17.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532438744

MANDREL MANDREL COVER LH
(Superseded to 583534001)

$28.99

$

In Stock, only 1 left!

0

28

Husqvarna 592855602

KEEPER 97 CRD ANGLED IDLER KEE

$26.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 3 left!

0
