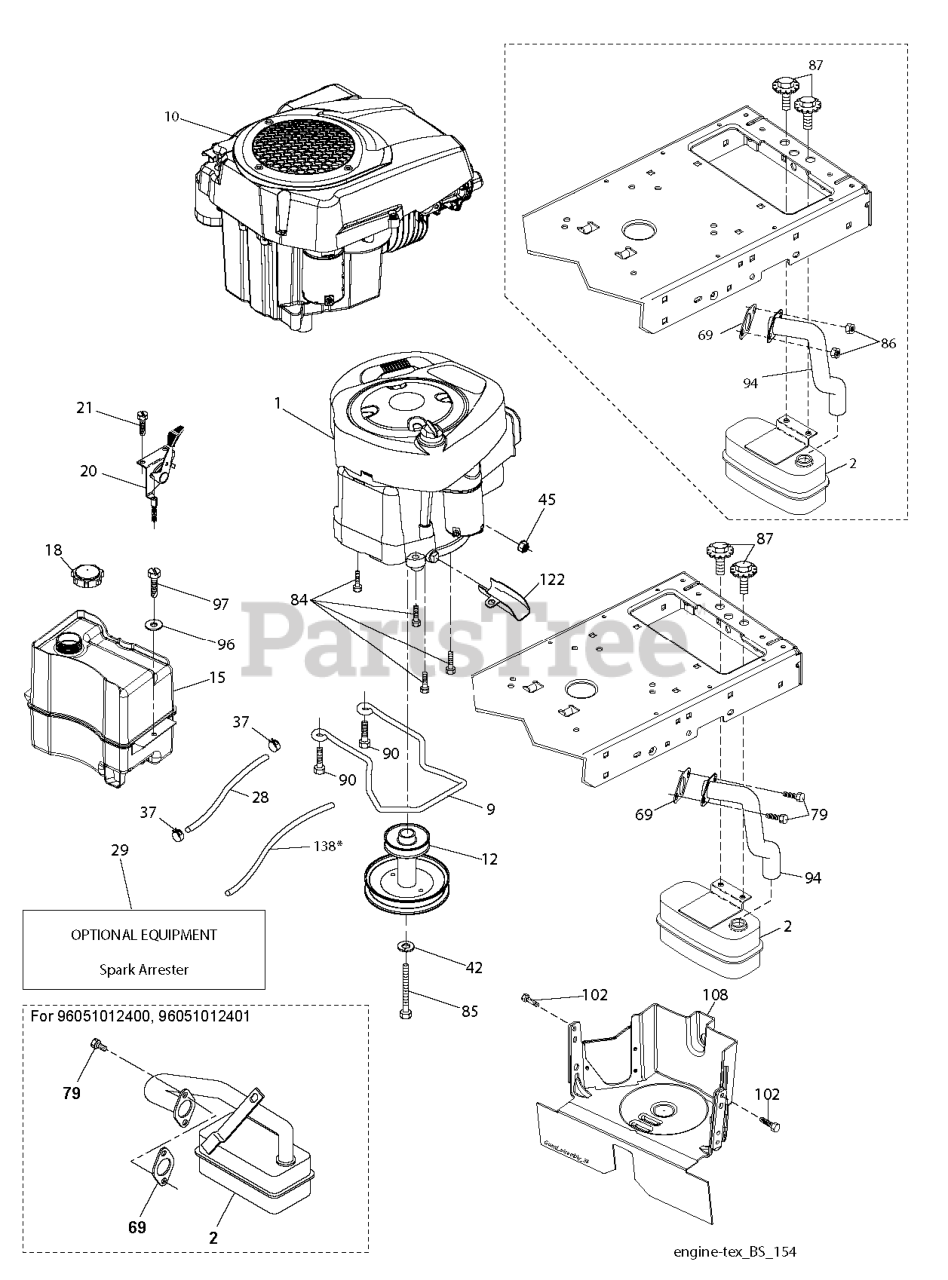

TC 138 - Husqvarna 38" Garden Tractor (Original) ENGINE Parts Diagram

38" Garden Tractor

ENGINE Parts Diagram

  • Title

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

Note: For all EXCEPT 96051012400, 96051012401, 96051020000

$31.99

$

In Stock, only 3 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532446760

MUFFLER.ASM.SNGL.XTNDED.DFLCTR
(Superseded to 590645302)

Note: For 96051012403

$45.99

$

Usually ships in 3-10 days

0

108

Husqvarna 587179510

COVER ENGINE PULLEY COVER WITH

$79.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596501502

Keepers

Note: For 96051020000

$11.99

$

In Stock, Qty 5

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

45

Husqvarna 596133601

Hardware

Note: For 96051017900

$3.99

$

Usually ships in 3-10 days

0

1

000000000

Note: For 96051017900, Engine Briggs Model No. 31R577-0027-B5 (597359601

$

$

Not available

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK

Note: For 96051012403, 96051012404, 96051017900

$

$

Not available

84

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 96051020000

$5.99

$

In Stock, Qty 17

0

138*

Husqvarna 587044531

NEEDS DESCRIPTION

Note: For 96051017900, only equipped with the EPA tank

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

69

Husqvarna 590863501

GASKET GASKET.EXHAUST.LONCIN 3

Note: For 96051020000

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

Note: For 96051012402, 96051012404, 96051017900

$45.99

$

In Stock, only 2 left!

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

Note: For 96051020000

$11.99

$

In Stock, Qty 9

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

Note: For 96051017900, NON-EPA TANK

$87.99

$

In Stock, only 1 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

1

Husqvarna 598694001

NEEDS DESCRIPTION

Note: ENGINE HUSQVARNA MODEL NO. HS452 For 96051020000 (COMPLETE IPL AVAILABLE SEPARATELY)

$

$

Currently unavailable

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

Note: For 96051020000

$45.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 597952201

Tanks
(Superseded to 597952202)

Note: For 96051017900, EPA TANK

$96.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

Note: For 96051012400, 96051012401, 96051012402, 96051020000

$37.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

Note: For all EXCEPT 96051017900, 96051020000

$4.99

$

In Stock, Qty 16

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$87.99

$

In Stock, only 1 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: For 96051020000

$6.49

$

In Stock, only 1 left!

0

94

Husqvarna 590864701

TUBE TUBE.EXHAUST.LONCIN 452.T

Note: For 96051020000

$28.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: For all EXCEPT 96051012400, 96051012401

$7.49

$

In Stock, Qty 5

0

2

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

Note: For 96051012400, 96051012401

$45.99

$

In Stock, only 3 left!

0

79

Husqvarna 596134201

Screws

$3.99

$

In Stock, Qty 13

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 2 left!

0

10

Husqvarna 598694001

NEEDS DESCRIPTION

Note: For 96051020000, Husqvarna Model HV 452CC. Engine ipl available separately.

$

$

Currently unavailable

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

Note: For 96051020000

$2.49

$

Usually ships in 3-10 days

0

1

000000000

Note: For all EXCEPT 96051017900,96051020000 B&S MODEL 31R577-0027-B1 (587333501)

$

$

Not available

102

Husqvarna 593337601

Screws

$4.99

$

Usually ships in 3-10 days

0
