TC 130 (960510188-00) - Husqvarna 30" Garden Tractor (2019-07) CHASSIS & ENCLOSURES Parts Diagram

30" Garden Tractor

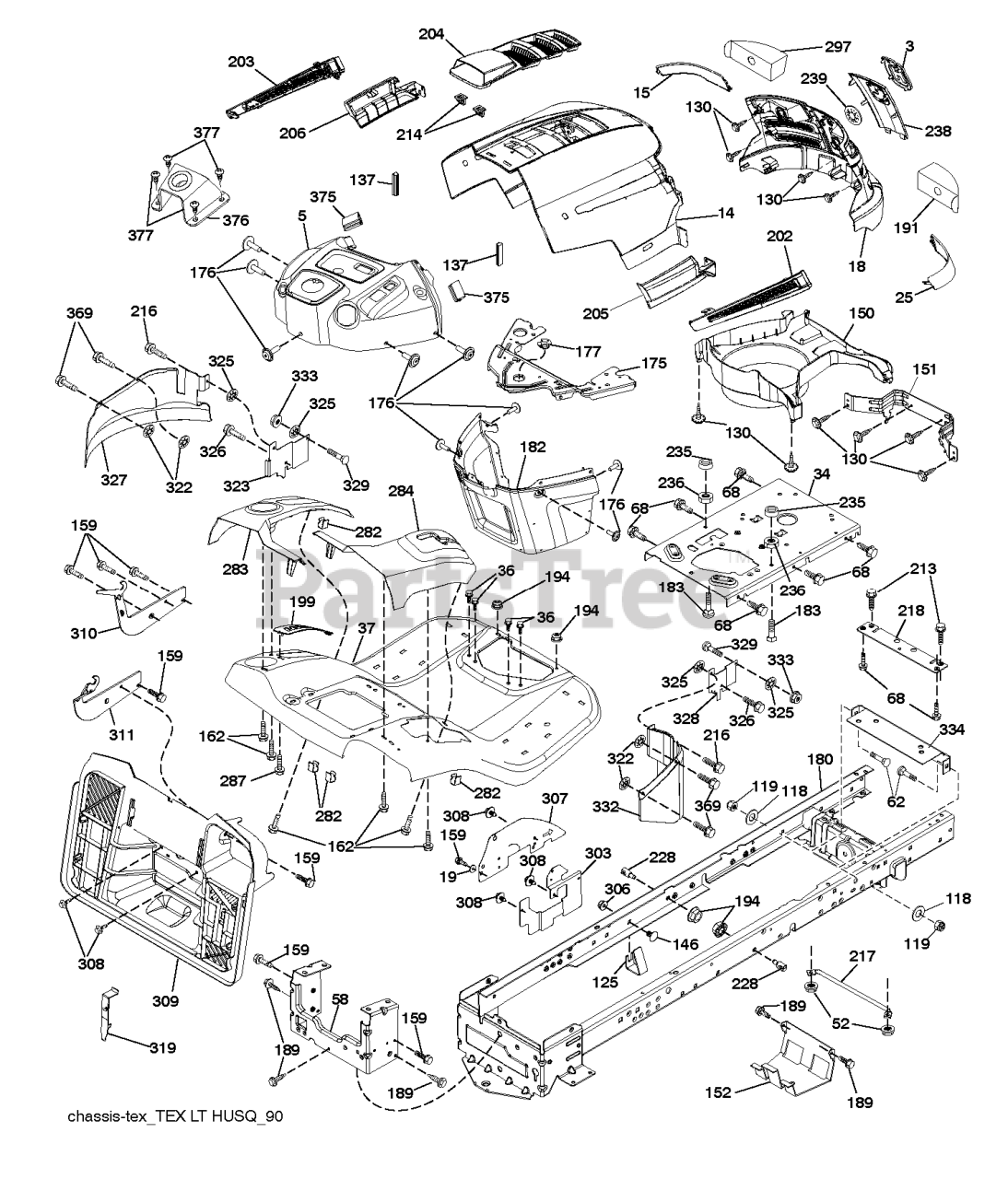

CHASSIS & ENCLOSURES Parts Diagram

  • Title
14

Husqvarna 532441267

HOOD.HUSQVARNA.LT.ORANGE

$91.99

$

Usually ships in 3-10 days

0

326

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

376

Husqvarna 589458701

MOUNT.ASM.HUSLT.UPPER.STRNG
(Superseded to 589458401)

$31.99

$

Usually ships in 3-10 days

0

52

$3.99

$

In Stock, Qty 20+

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

310

Husqvarna 532445428

BRACKET BRACKET.LH REAR BAG HA
(Superseded to 583579301)

$13.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 6

0

297

Husqvarna 532406665

INSERT REFLECTIVE

$9.99

$

Usually ships in 3-10 days

0

328

Husqvarna 532431487

GUARD FRONT RIGHT
(Superseded to 583470201)

$27.99

$

Usually ships in 3-10 days

0

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

In Stock, only 2 left!

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 13

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 585529805

DASH.UPPER.HUS.LT.CABLE.CLUTCH

$43.99

$

Usually ships in 3-10 days

0

239

$15.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

162

$3.99

$

In Stock, Qty 5

0

150

$30.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532441345

SKIRT.SIDE.HUSQVARNA.LT.LEFT

$13.99

$

Usually ships in 3-10 days

0

19

$6.99

$

In Stock, only 1 left!

0

34

Husqvarna 580910901

PLATE.ENGINE.10GA.CRD.GENII

$

$

Not available

238

Husqvarna 532441374

TRIM.HUSQ LT.668
(Superseded to 532407881)

$22.99

$

Usually ships in 3-10 days

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

235

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532441368

GRILLE.SVC.HUSQVARNA.GREY
(Superseded to 532426963)

$72.99

$

Usually ships in 3-10 days

0

309

Husqvarna 532430246

BACKPLATE.BAGGER.V2.SRD
(Superseded to 584454501)

$182.99

$

Usually ships in 3-10 days

0

118

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

151

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

130

$3.99

$

In Stock, Qty 15

0

183

$4.99

$

In Stock, only 3 left!

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532440530

CONSL.SHFT.PEDAL.RH.SRD.TEXCRD

$60.99

$

Usually ships in 3-10 days

0

322

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 4 left!

0

216

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

175

Husqvarna 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

377

Husqvarna 589455301

SCREW 10 X 1/2 ZN PL PHIL PAN

$3.49

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 532441428

LENS.HUSQVARNA LT.RH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532441343

VENT.SIDE.HUSQVARNA.LT.LFT
(Superseded to 532406671)

$10.99

$

Usually ships in 3-10 days

0

327

Husqvarna 532431483

GUARD LEFT
(Superseded to 583470101)

$30.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532441427

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

311

Husqvarna 532445430

BRACKET BRACKET.RH REAR BAG HA
(Superseded to 583579501)

$14.99

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

204

Husqvarna 532441375

SUBASM.TOP.VENT.HUSQ.LT

$30.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441369

FENDER.TEX.SRD.CRD.FRN.GUARDS
(Superseded to 583759601)

$169.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 20+

0

334

Husqvarna 532442537

BRACKET.ENGINE
(Superseded to 583564401)

$12.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

182

Husqvarna 532407176

DASH.LOWER.PREDATOR LT

$79.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

323

Husqvarna 532431488

GUARD FRONT LEFT
(Superseded to 583470301)

$30.99

$

Usually ships in 3-10 days

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 581056301

LOGO.HUSQ.GT.LT.CROWN.H
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

191

Husqvarna 532416501

INSERT.REFLECTIVE.RH.
(Superseded to 583358401)

$15.99

$

Usually ships in 3-10 days

0

369

$3.99

$

Usually ships in 3-10 days

0

332

Husqvarna 532431482

GUARD RIGHT
(Superseded to 583470001)

$26.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532441344

SKIRT.SIDE.HUSQVARNA.LT.RT

$13.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

303

Husqvarna 589007602

SHIELD.LWR.LH.30DECK/CRD1&2

$20.99

$

Usually ships in 3-10 days

0

194

$3.99

$

In Stock, only 3 left!

0

325

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532414685

CHASSIS.WLDMNT.14GA.2PC.18".TI
(Superseded to 597630801)

$250.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532441342

VENT.SIDE.HUSQVARNA.LT.RT

$13.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

319

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

283

Husqvarna 532440531

CONSL.DECKLIFT.LH.SRD.TEX.CRD

$66.99

$

Usually ships in 3-10 days

0

307

Husqvarna 587494501

SHIELD.UPPER.CRD.SRD.ISO

$26.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 20+

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+
