TC 130 (960510187-00) - Husqvarna 30" Garden Tractor (2019-04) ELECTRICAL Parts Diagram

30" Garden Tractor

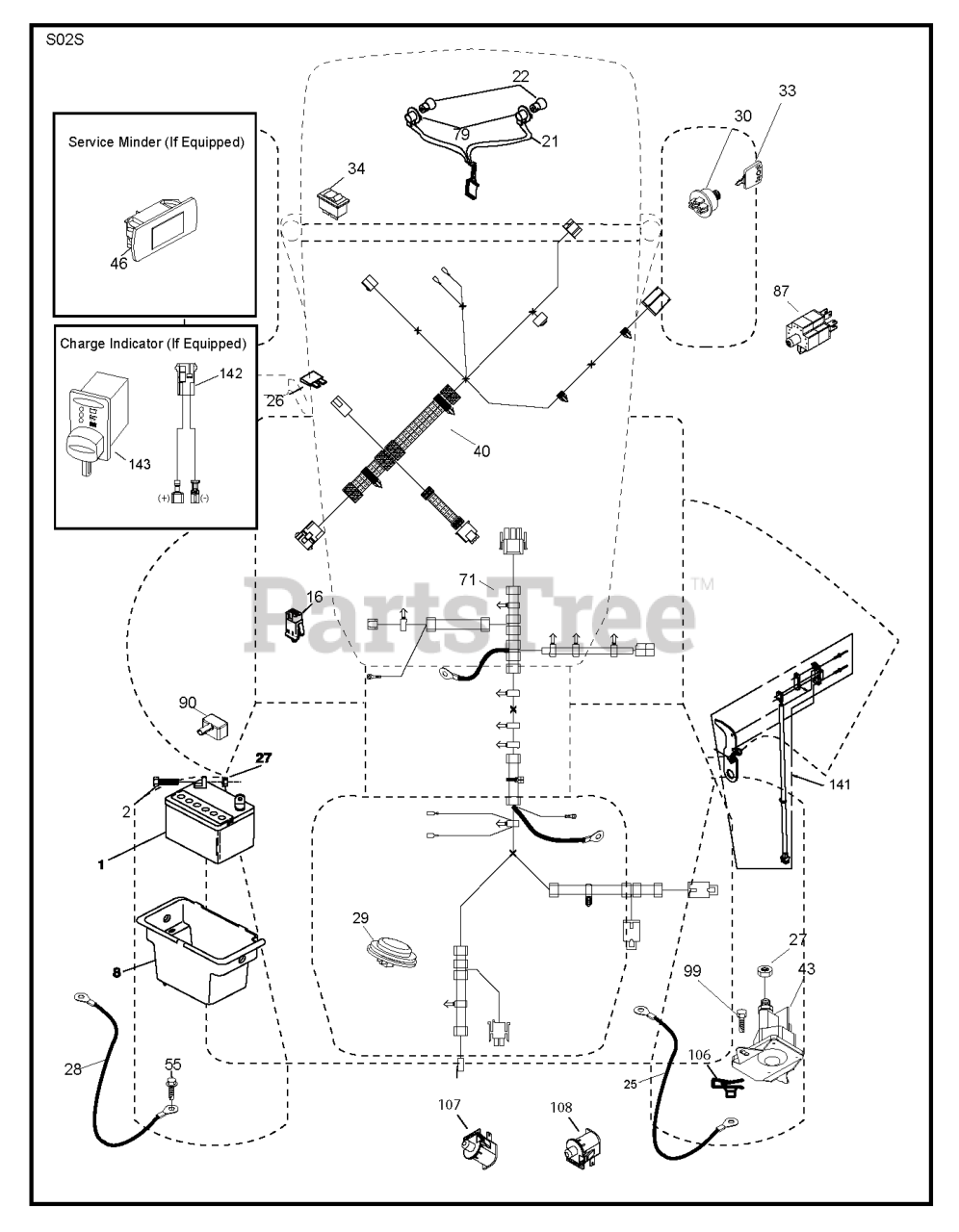

ELECTRICAL Parts Diagram

  • Title
25

Husqvarna 532416694

CABLE.BATTERY.20.RED.8 AWG

$20.99

$

In Stock, only 3 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

108

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$14.99

$

In Stock, only 2 left!

0

71

Husqvarna 501133401

HARNESS.CHASS.SRD.RDY.START

$

$

Not available

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

27

$3.99

$

Usually ships in 3-10 days

0

141

Husqvarna 532416977

KIT T2.ROS 71677

$145.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

46

Husqvarna 594919101

GUAGE.SRVCMNDR.HRMTR.

$24.99

$

In Stock, Qty 6

0

28

Husqvarna 532421686

CABLE.GROUND.REAR.BATTERY.8G
(Superseded to 583390701)

$15.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 532419791

BOX.BATTERY.LT/SRD
(Superseded to 583377701)

$24.99

$

Usually ships in 3-10 days

0

43

$26.99

$

In Stock, Qty 20+

0

142

Husqvarna 583857801

CHARGE.PORT.PIGTAIL HARNESS
(Superseded to 583593501)

$37.99

$

In Stock, only 1 left!

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

87

Husqvarna 532421060

RP SWITCH.RAILMOUNT.NO-NC-NC
(Superseded to 583385701)

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

107

Husqvarna 532421061

SWITCH.SNAPMOUNT.NO.#2

$14.99

$

In Stock, only 2 left!

0

40

Husqvarna 585849901

HARN.DASH.CRD.CC.SQ.RDSTRT

$85.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 9

0

34

$9.49

$

In Stock, only 4 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

106

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

143

Husqvarna 532448059

CHARGE.PORT
(Superseded to 583593501)

$37.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

22

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0
