TBTB (41AJTB-C063) - Troy-Bilt Blower Attachment Turbo Blower Add-On Parts Diagram

Blower Attachment

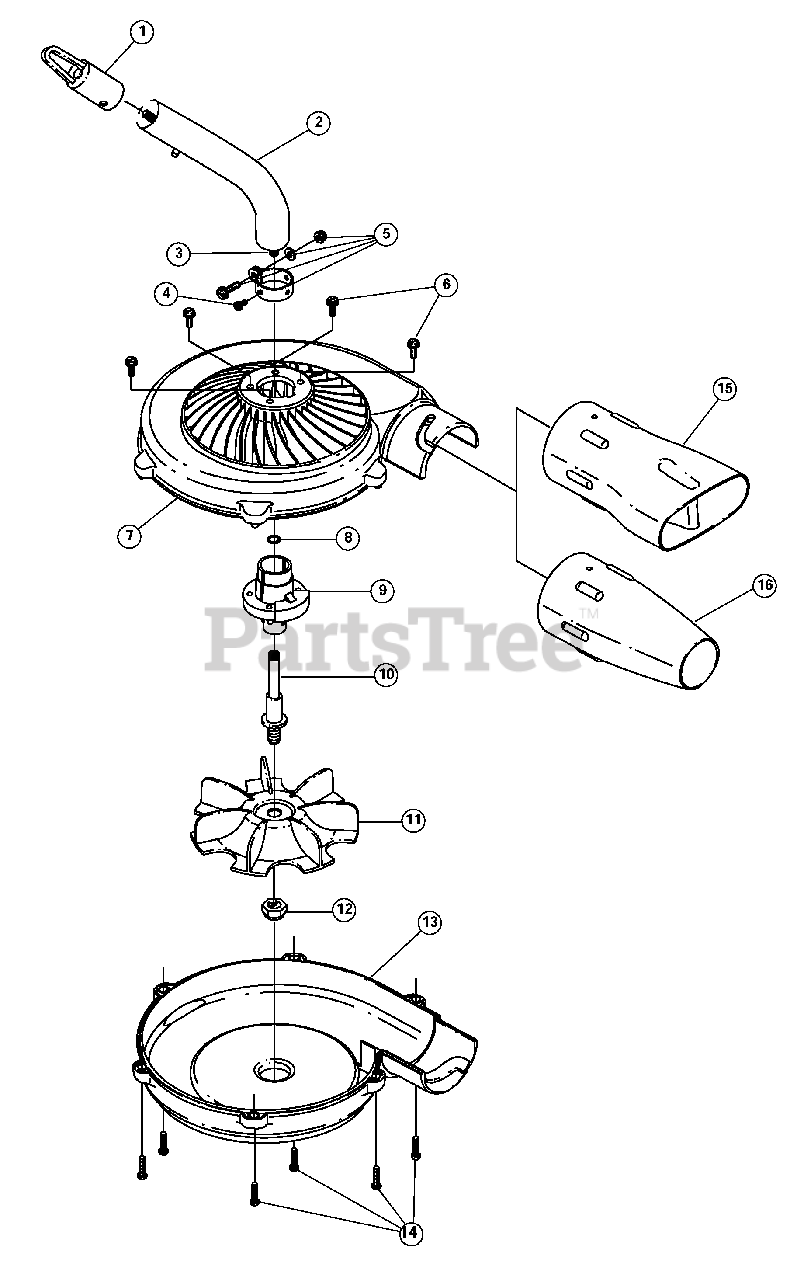

Turbo Blower Add-On Parts Diagram

  • Title

1

Troy-Bilt 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 753-1218

Drive Shaft Housing Assembly

$105.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-181852

Drive Shaft Assembly

$59.99

$

In Stock, Qty 11

0

4

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

5

Troy-Bilt 791-153597

Lower Clamp Assembly

Note: (includes 4)

$

$

Not available

6

Troy-Bilt 791-181853

Mounting Screw

$

$

Not available

7

Troy-Bilt 791-181996

Upper Housing

$

$

Not available

8

Troy-Bilt 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 791-181636

Bushing Assembly Housing

$

$

Not available

10

Troy-Bilt 791-181634

Shaft Impeller

$

$

Not available

11

Troy-Bilt 791-181635

Impeller

$

$

Not available

12

Troy-Bilt 791-181637

Nut and Washer

$

$

Not available

13

MTD 791-181997

Lower Housing

$

$

Not available

14

Troy-Bilt 791-181345

Mounting Screw

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 791-181632

Flare Nozzle

$

$

Not available

16

Troy-Bilt 791-181633

Concentrator Nozzle

$24.99

$

In Stock, only 1 left!

0
