TBSS (41AJSS-C063) - Troy-Bilt String Trimmer Attachment Boom And Trimmer Parts Parts Diagram

String Trimmer Attachment

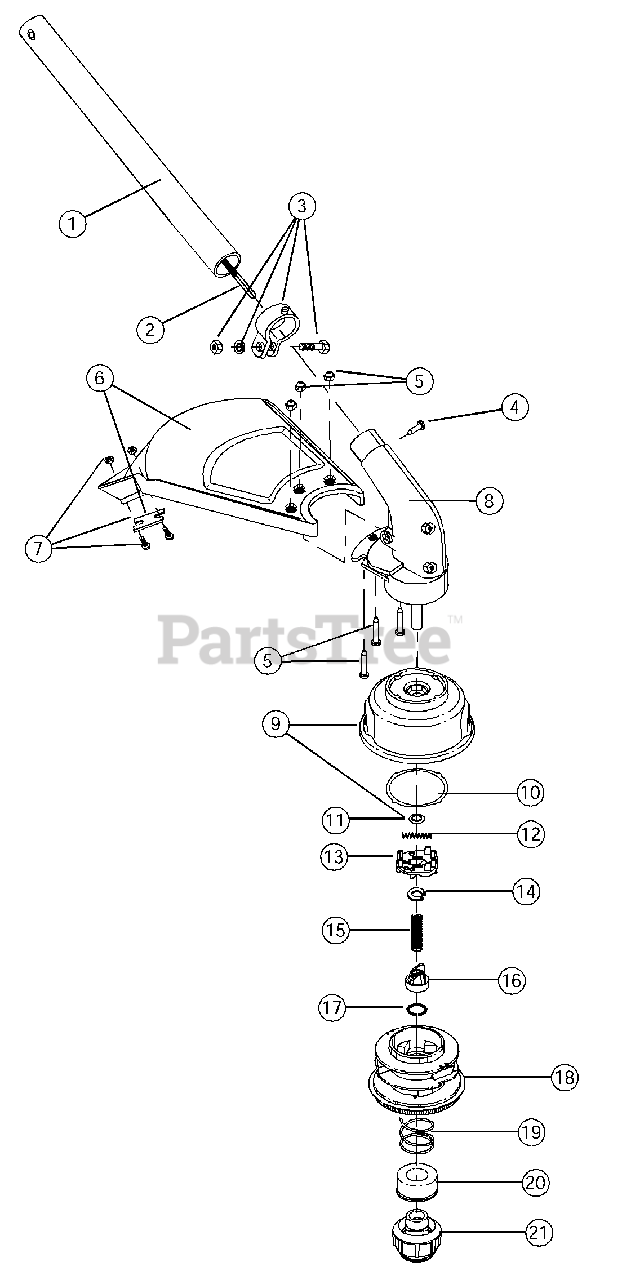

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

Note: (includes 2)

$49.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-153597

Lower Clamp Assembly

Note: (includes 4)

$

$

Not available

4

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

5

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

6

MTD 791-180548

Shield and Blade Assembly

Note: (includes 21)

$

$

Not available

7

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

8

MTD 791-181566

Gearbox Assembly

Note: (includes 9 & 10)

$

$

Not available

9

Troy-Bilt 791-181457

Outer Spool & Eyelet Assembly

$39.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

11

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

15

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

16

Troy-Bilt 791-181462

Plunger

$

$

Not available

17

Troy-Bilt 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

20

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

21

Troy-Bilt 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 19 & 20)

$

$

Not available

Troy-Bilt 791-181472

Replacement Line, .080 Diameter
(Superseded to 791-181460B)

Note: Optional Accessory; Item

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessory; Item

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Item

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-147192

Hanger Accessory
(Superseded to 731-08926)

Note: Optional Accessory; Item

$2.99

$

In Stock, only 3 left!

0

MTD 791-181470

Complete Cutting Head Assembly

Note: (includes 4, 5, 8-21); Optional Accessory; Item

$

$

Not available
