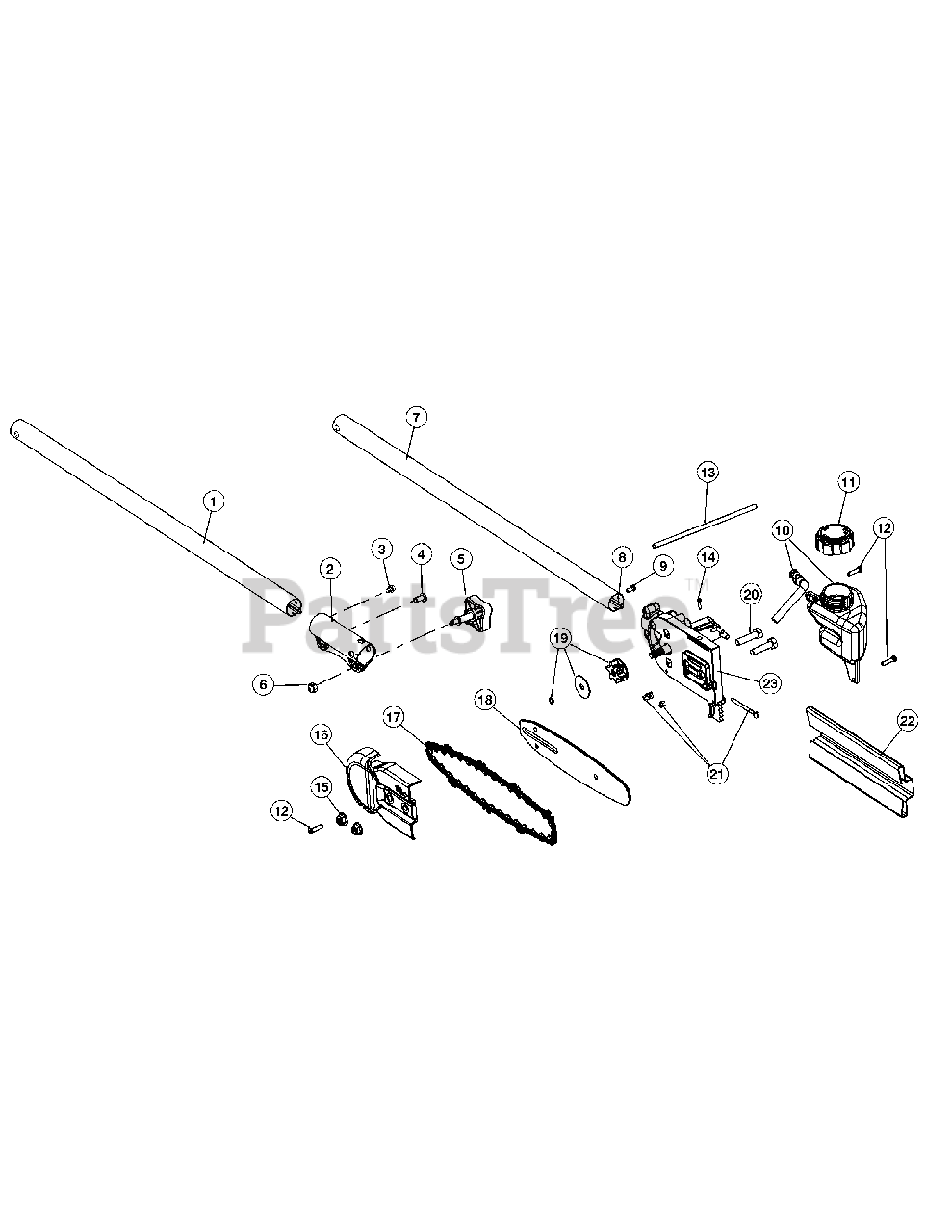

TBPS-8 DL (41AJPS-C966) - Troy-Bilt Pole Saw Attachment General Assembly Parts Diagram

Pole Saw Attachment

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 753-04352

Extension Boom

$80.99

$

In Stock, Qty 5

0

2

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 3-6)

$23.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, Qty 5

0

$5.49

$

In Stock, Qty 11

0

5

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

6

Troy-Bilt 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

7

Troy-Bilt 753-05724

Drive Shaft Housing

$40.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 791-181166

Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-180288

Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-05586

Oil Tank Assembly

$30.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05587

Fuel Cap Assembly

$8.99

$

In Stock, Qty 10

0

12

Troy-Bilt 753-05274

Screw
(Superseded to 710-04508)

$4.49

$

In Stock, only 2 left!

0

13

$9.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-05589

Screw
(Superseded to 710-04696)

$3.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 753-05591

Nut
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-05593

Chain Guard

$13.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-05592

Chain Guard

$38.99

$

In Stock, Qty 13

0

$54.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 753-05595

Sprocket Assembly

$11.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-05596

Bolt
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 753-05597

Chain Tension Hardware Assembly

$10.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 753-05598

Chain Cover
(Superseded to 731-05906)

$6.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05599

Gearbox Assembly

Note: (Incl. Ref No. 14 & 19)

$106.99

$

In Stock, only 2 left!

0

Troy-Bilt 791-612605

Hanger
(Superseded to 731-08926)

Note: (Not Shown)

$2.99

$

In Stock, Qty 20+

0

Troy-Bilt 753-05774

Allen Wrench
(Superseded to 797-00056)

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0
