TBE 550 (25A-55T4B66) - Troy-Bilt Edger (2023) Blade Parts Diagram

Edger

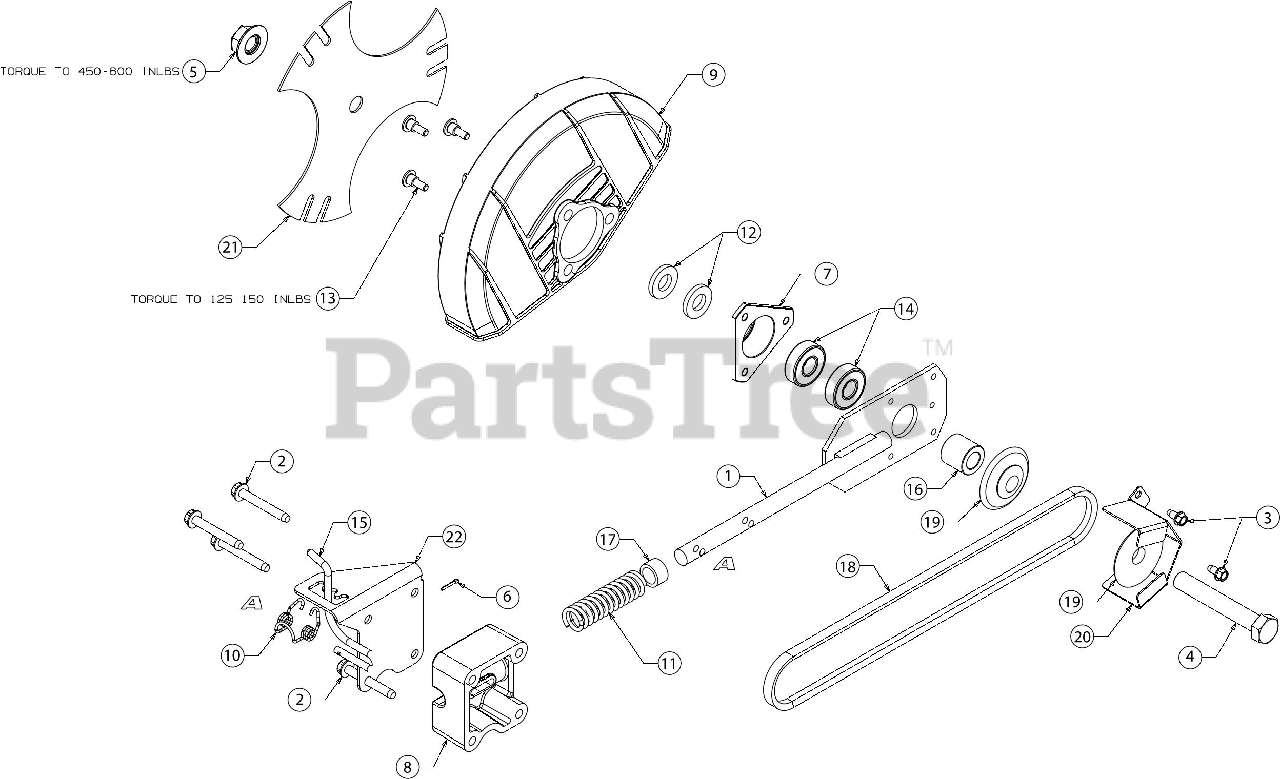

Blade Parts Diagram

  • Title
1

Troy-Bilt 687-02126

BLADE PLATE ASSEMBLY

$56.99

$

In Stock, only 1 left!

0

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1143A

SCREW 5/8-18 X 4 GR5

$11.99

$

In Stock, only 1 left!

0

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 714-3010

COTTER PIN-3/32X62

$4.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 718-04012

BEARING CUP

$21.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 931-04207

BEARING BLOCK

$27.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 731-05064

BLADE GUARD
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 732-0188A

TORSION SPRING

$12.99

$

In Stock, Qty 10

0

11

Troy-Bilt 932-04169

COMPRESSION SPRING

$10.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 936-04088

FLAT WASHER .635 X 1.24 X .181
(Superseded to 736-04088)

$4.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 738-0706C

SHOULDER SCREW .375X.280:1/4-14
(Superseded to 738-0706D)

$4.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 941-0524A

BALL BEARING

$23.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 747-04110A

ADJUSTMENT ROD

$17.99

$

In Stock, Qty 20+

0

$15.99

$

Usually ships in 3-6 days

0

17

$5.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 954-04032B

BELT 3L X 35.8

$25.99

$

In Stock, Qty 20+

0

19

$14.99

$

In Stock, only 2 left!

0

20

$20.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 781-0748-0637

BLADE TRI-CUT (POWDER BLACK)

$21.99

$

In Stock, Qty 14

0

22

Troy-Bilt 787-01081A-0638

INDEX BRACKET
(Superseded to 787-01081A-0637)

$6.49

$

Usually ships in 3-6 days

0
