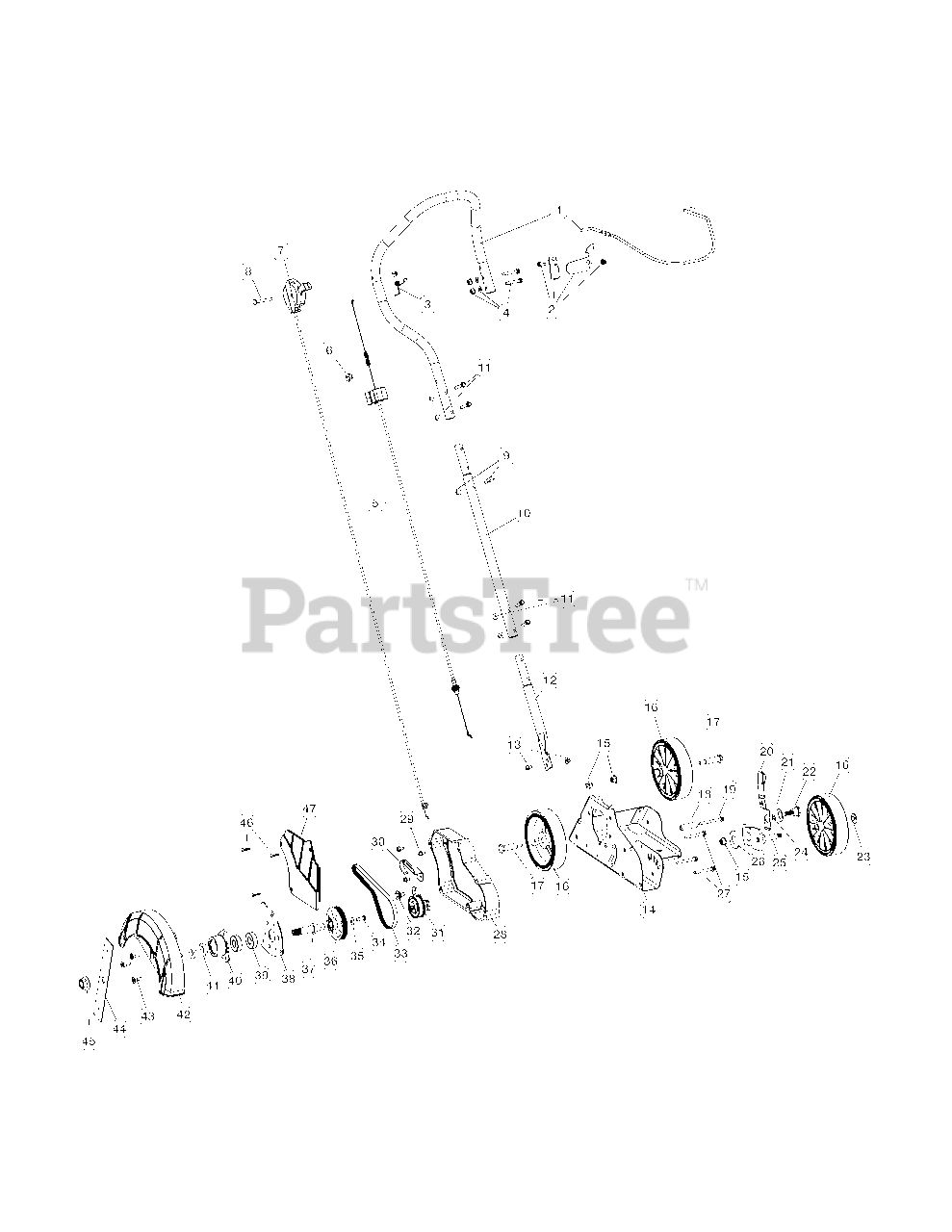

TBE 515 (25B-515-966) - Troy-Bilt Edger (2008) General Assembly Parts Diagram

Edger

General Assembly Parts Diagram

  • Title
1

MTD 753-05791

Handle Assembly

Note: (Incl. Ref No. 2-4)

$

$

Not available

2

Troy-Bilt 753-05797

Lockout Lever Assembly

$

$

Not available

3

Troy-Bilt 753-04043

Bale Spring

$

$

Not available

4

Troy-Bilt 753-05793

Lockout Hardware Assembly

$

$

Not available

5

Troy-Bilt 753-05795

Tensioner Cable Assembly

$31.99

$

Usually ships in 3-6 days

0

$10.99

$

In Stock, Qty 12

0

7

Troy-Bilt 753-05789

Throttle Assembly

$32.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05794

Throttle Hardware Assembly

$

$

Not available

9

Troy-Bilt 753-05524

Starter Rope Guide Assembly

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05787

Middle Handle Assembly

Note: (Incl. Ref No. 11)

$

$

Not available

11

Troy-Bilt 753-05526

Handle Hardware Assembly

$

$

Not available

12

Troy-Bilt 753-05557

Lower Handle
(Superseded to 749-04361)

$41.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05528

Lower Handle Screw & Nut Assembly
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-05539

Edger Frame

$

$

Not available

15

Troy-Bilt 753-05525

Lock Nut
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-05530

Wheel
(Superseded to 734-04261)

$21.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 753-05529

Wheel Bolt
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-05556

Spacer
(Superseded to 750-04783)

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05538

Spacer Screw
(Superseded to 710-1206)

$7.49

$

In Stock, Qty 6

0

20

Troy-Bilt 753-05531

Height Adjustment Lever Assembly
(Superseded to 987-02051)

$

$

Not available

21

Troy-Bilt 753-05532

Washer
(Superseded to 736-0741)

$4.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-05534

Shoulder Screw
(Superseded to 738-1172)

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05535

Nut
(Superseded to 712-04135)

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 753-05533

Washer
(Superseded to 936-0314)

$

$

Not available

25

Troy-Bilt 753-05536

Pivot Arm
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-05537

Height Adjustment Spacer
(Superseded to 741-0751)

$8.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-05538

Spindle Plate Screw
(Superseded to 710-1206)

$7.49

$

In Stock, Qty 6

0

28

MTD 753-05559

Spindle Spacer
(Superseded to 731-05809)

$

$

Not available

29

Troy-Bilt 753-05528

Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 753-05553

Belt Retainer
(Superseded to 787-01502)

$13.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-05540

Idler Pulley Assembly

$38.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-05541

Shoulder Screw
(Superseded to 738-0930)

$6.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 753-05560

Belt
(Superseded to 754-04149)

$30.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 753-05554

Screw
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 753-05555

Washer
(Superseded to 736-0270)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 753-05542

Pulley
(Superseded to 756-04087B)

$12.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 753-05543

Blade Spindle

$21.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 753-05544

Spindle Plate

$

$

Not available

39

Troy-Bilt 753-05550

Bearing
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 753-05545

Bearing Cup
(Superseded to 718-04012)

$21.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 753-05546

Washer
(Superseded to 936-04088)

$4.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 753-05547

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 753-05548

Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 753-05562

Edger Blade
(Superseded to 787-01503-0637)

$23.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 753-05549

Nut
(Superseded to 712-0417A)

$6.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 753-04595

Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 753-05552

Belt Cover
(Superseded to 731-05822)

$11.99

$

In Stock, only 2 left!

0
