TBE 15 (18A-212A766) - Troy-Bilt Walk-Behind Mower, Electric (2011) General Assembly Parts Diagram

Walk-Behind Mower, Electric

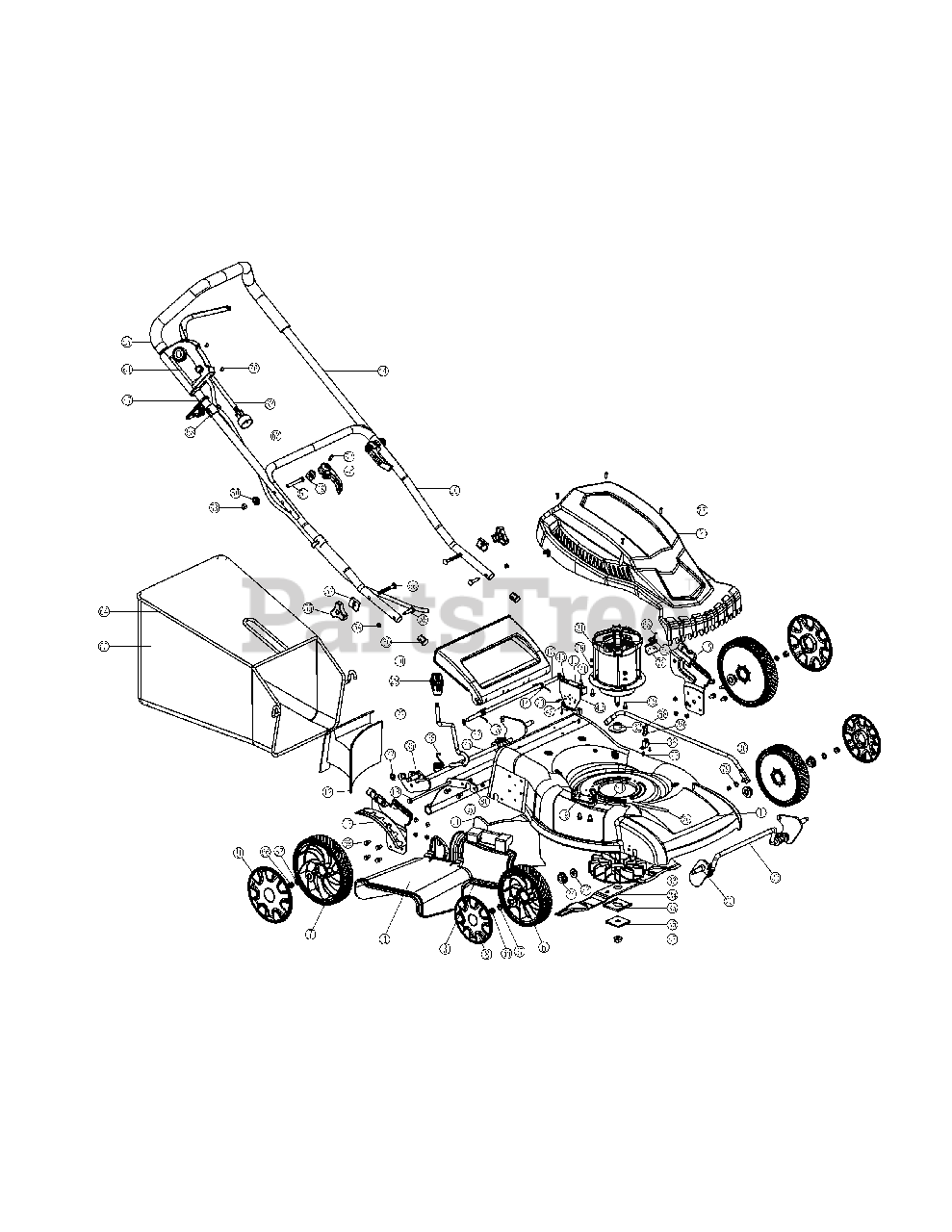

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 787-01823A

Deck

$

$

Not available

2

Troy-Bilt 731-07618

Shroud

$38.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-07619

Mulch Door

$8.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-07620

Discharge Chute

$15.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-07621

Trail Shield

$29.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 734-04553

Front Wheel

$25.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 734-04554

Rear Wheel

$

$

Not available

8

Troy-Bilt 731-07512

Wheel Cap

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 721-04378

Shroud Seal

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-07622

Rear Door

$20.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 731-07623

Rear Baffle

$16.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-07624

Mulch Plug

$21.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 711-05358

Pin

$7.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-04733

Spring

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-04734

Spring

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 787-01824A

Left Bracket

$31.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 787-01825A

Right Bracket

$35.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 711-05325

Trailshield Rod

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 787-01813

Mulch Door Bracket

$3.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 711-05326

Mulch Door Rod

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-04713

Mulch Door Spring

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 611-04181

Front Shaft Assembly

$57.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 741-04464

Spacer Bushing

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 731-07511

Wheel Bushing

$3.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 611-04182

Rear Shaft Assembly

$41.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 741-04465

Spacer Bushing
(Superseded to 941-04465)

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 732-04735

Height Adjust Handle

$16.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 732-04715

Height Adjust Spring

$3.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 720-04143

Height Adjust Knob

$7.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 787-01826

Height Adjust Rod

$20.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 724-04088

Motor
(Superseded to 924-04088)

$223.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-04486

Flange

$13.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 731-07515

Electric Motor Fan

$16.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 942-04317

Blade
(Superseded to 742-04317)

$

$

Not available

35

Troy-Bilt 731-07598

Washer

$3.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-04487

Washer

$4.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 712-04237

Nut

$3.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 731-07516

Strain Relief Bracket

$3.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 731-07520

Strain Relief Cap

$3.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 725-05071

Resistor

$11.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 725-05119

Resistor Holder

$3.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 731-07599

Resistor Bracket

$3.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 725-05118

Resistor Base

$

$

Not available

44

Troy-Bilt 749-04670A

Upper Handle

$29.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 731-07522

Handle Grip

$14.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 749-04688A

Lower Handle

$33.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 731-07523

Cord Retainer

$3.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 720-04145

Quick Release Handle

$3.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 736-04488

Washer

$4.49

$

Usually ships in 3-6 days

0

50

Troy-Bilt 720-04146

Quick Release Knob

$4.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 714-04086

Quick Release Pin

$3.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 715-04107

Pin

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 712-04239

Nut

$

$

Not available

54

Troy-Bilt 712-04250

Nylock Nut

$

$

Not available

55

Troy-Bilt 720-04147

Wing Knob

$4.49

$

Usually ships in 3-6 days

0

56

Troy-Bilt 710-05082

Screw, M8

$3.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 736-04489

Washer

$3.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 731-07524

Cord Clip

$3.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 714-04088

Shoulder Bolt

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 731-07513

Cap

$3.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 625-04125

Switch Box Assembly

$

$

Not available

62

Troy-Bilt 725-05115

AC Power Cord

$8.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 725-05116

Motor Cord

$

$

Not available

64

Troy-Bilt 747-05304

Grassbag Frame

$41.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 764-04096

Grassbag

$55.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 712-04251

Lock Nut

$3.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 736-04497

Washer

$3.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 710-05119

Screw, M4.2 x 16

$

$

Not available

69

Troy-Bilt 710-05117

Screw, M6 x 12

$3.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 712-04250

Lock Nut, M6

$

$

Not available

71

Troy-Bilt 710-05120

Screw, M4 x 12

$

$

Not available

72

Troy-Bilt 712-04251

Lock Nut, M4

$3.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 716-04163

Lock Ring

$

$

Not available

74

Troy-Bilt 725-05121

Rectifier Heat Sink

$

$

Not available

75

Troy-Bilt 725-05127

Rectifier

$13.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 710-05123

Screw, M4.8 x 16

$

$

Not available

77

Troy-Bilt 710-05124

Screw, M4.2 x 25

$3.49

$

Usually ships in 3-6 days

0

78

Troy-Bilt 710-05118

Screw, M5 x 12

$3.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 710-05119

Screw, M4.2 x 16

$

$

Not available

80

Troy-Bilt 736-04505

Spring Washer

$3.99

$

Usually ships in 3-6 days

0
