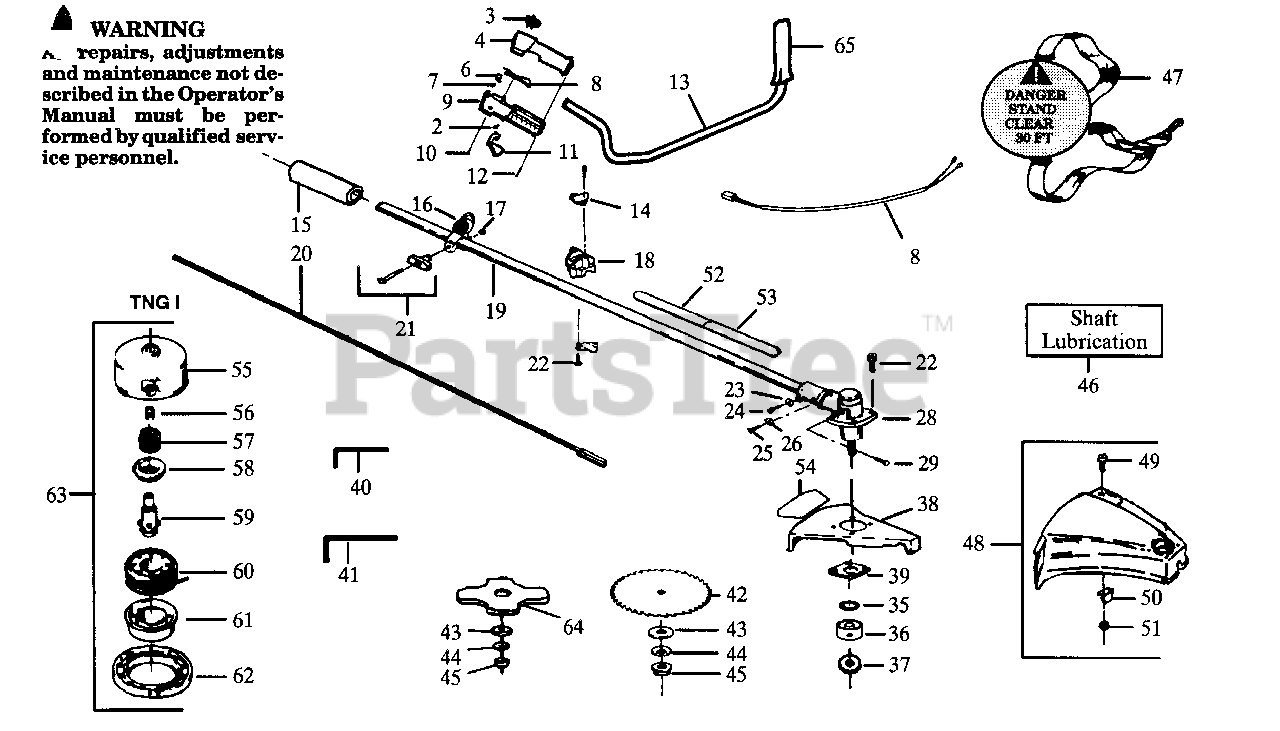

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title
1

Poulan 530047144

Wire Harness Ass'y.

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 502199301

Trigger Spring
(Superseded to 503794101)

$4.99

$

In Stock, Qty 5

0

3

Poulan 503718201

Rocker Switch

$13.99

$

In Stock, Qty 8

0

4

Poulan 502208502

Throttle Hsg.-Left
(Superseded to 502208507)

$24.99

$

Usually ships in 3-10 days

0

6

Poulan 502209602

Throttle Lock

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 502209701

Spring
(Superseded to 530403152)

$3.99

$

In Stock, only 2 left!

0

8

Poulan 502199403

Throttle Lockout

$

$

Not available

9

Poulan 502208602

Throttle Hsg.-Right

$6.49

$

Usually ships in 3-10 days

0

10

$2.49

$

In Stock, only 1 left!

0

11

Poulan 502199203

Throttle Trigger

$

$

Not available

12

$3.99

$

In Stock, only 4 left!

0

13

Poulan 530047139

Handlebar

$

$

Not available

14

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

15

Poulan 530027706

Drive Shaft Pad

$

$

Not available

16

Poulan 530094686

Clamp Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

18

Poulan 530012207

Handlebar Clamp

$

$

Not available

19

Poulan 530094650

Drive Shaft Housing

$84.99

$

Usually ships in 3-10 days

0

20

Poulan 530094566

Drive Shaft

$96.99

$

Usually ships in 3-10 days

0

21

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

22

Poulan 530016107

Screw, Use w/Plastic Shield

$3.99

$

In Stock, Qty 11

0

22

Poulan 530015791

Screw, Use w/Metal Shield

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

24

$0.99

$

Usually ships in 3-10 days

0

25

$1.99

$

In Stock, only 1 left!

0

26

Poulan 530001642

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530094568

Gear Box Ass'y.
(Superseded to 530071781)

$

$

Not available

29

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 530094639

Dust Cup

$

$

Not available

37

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

38

Poulan 530094627

Shield-Metal
(Superseded to 530094633)

$

$

Not available

39

Poulan 530027615

Shield Retention Plate

$7.99

$

Usually ships in 3-10 days

0

40

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

41

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 952701610

Brush Blade
(Superseded to 952711585)

$

$

Not available

43

$5.99

$

In Stock, only 2 left!

0

44

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 5

0

46

Poulan 952030133

Shaft Lubrication

$1.99

$

In Stock, only 1 left!

0

47

Poulan 530094417

Shoulder Strap

$

$

Not available

48

Poulan 530069256

Shield Kit Ass'y. (Incl. 49-51)

$

$

Not available

49

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

51

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 530029162

Decal-Shaft Warning (Upper)

$

$

Not available

53

Poulan 530029163

Decal-Shaft Warning (Lower)

$

$

Not available

54

Poulan 530027749

Decal-Blade Direction (Not a serviceable part)

$

$

Not available

55

Poulan 530093896

Hub Ass'y.
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

56

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

57

$3.99

$

Usually ships in 3-10 days

0

58

Poulan 530092068

Cap-Spring
(Superseded to 530328929)

$

$

Not available

59

Poulan 530095121

Drive Gear
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

60

Poulan 952701589

Spool w/Line

$6.99

$

In Stock, Qty 6

0

61

Poulan 530401183

Release Button

$

$

Not available

62

$

$

Not available

63

Poulan 952701643

Cutting Head Ass'y. (Incl. 55-62)

$

$

Not available

64

Poulan 952701611

4-Point Blade (Optional)
(Superseded to 952711585)

$

$

Not available

65

Poulan 502145101

Grip-Left
(Superseded to 502145103)

$17.99

$

Usually ships in 3-10 days

0

Poulan 530082299

Operator Manual, Type 1

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0

Poulan 530083185

Operator Manual, Type 2

Note: Not Shown.

$

$

Not available

Poulan 530026889

Operator Manual, Handlebar Warning Decal
