TBBT (41AJBT-C966) - Troy-Bilt Blower/Trimmer Attachment General Assembly Parts Diagram

Blower/Trimmer Attachment

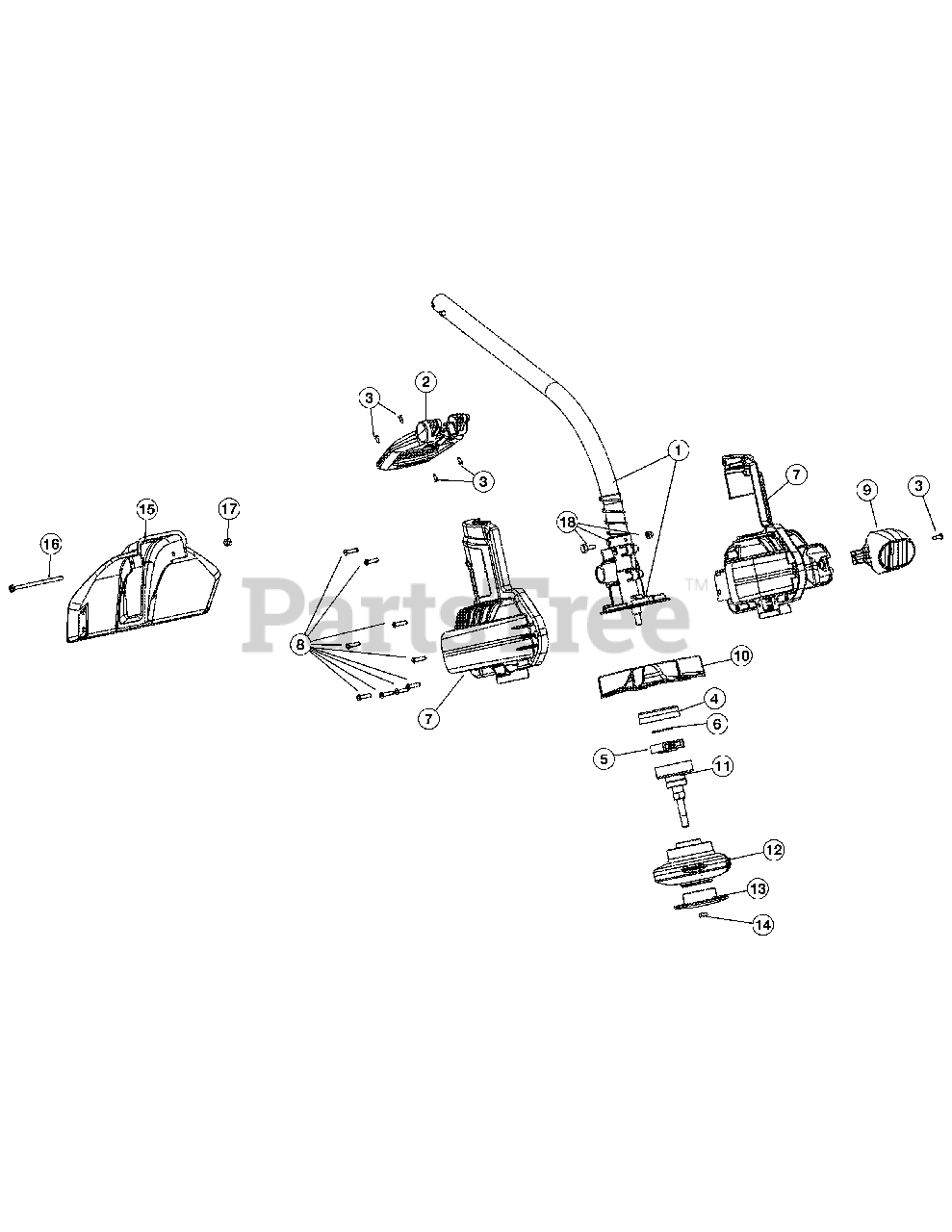

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05272

Lower Drive Shaft Housing Assembly (includes 18)

$108.99

$

Usually ships in 3-6 days

0

2

MTD 753-05307

Shift Handle Assembly (includes 3)

$

$

Not available

3

Troy-Bilt 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-05233

Clutch Drum Container

$

$

Not available

5

Troy-Bilt 753-05257

Clutch Assembly

$51.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 753-05273

Housing Assembly (includes 8)

$

$

Not available

8

Troy-Bilt 753-05274

Screw
(Superseded to 710-04508)

$4.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 753-05275

Nozzle

$39.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05276

Impeller

$33.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05277

Clutch Drum Assembly w/Spool Shaft

$

$

Not available

12

Troy-Bilt 753-05430

Fixed Line Head (includes 13 & 14)

$

$

Not available

13

Troy-Bilt 753-05428

Glide Cap
(Superseded to 731-05714)

$17.99

$

In Stock, Qty 8

0

14

Troy-Bilt 753-05429

Locknut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

15

Troy-Bilt 753-05282

Guard Assembly w/Blade (includes 16 & 17)

$

$

Not available

16

Troy-Bilt 753-05283

Screw
(Superseded to 710-04563)

$4.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 791-153597

Clamp

$

$

Not available

Troy-Bilt 791-612605

Hanger
(Superseded to 731-08926)

Note: Items Not Shown, Optional

$2.99

$

In Stock, only 3 left!

0

Troy-Bilt 753-05164

Replacement Line
(Superseded to 796-00027)

Note: Items Not Shown, Optional

$30.99

$

Usually ships in 3-6 days

0
