TBBC (41AJBC-C711) - Troy-Bilt Brush Cutter Attachment General Assembly Parts Diagram

Brush Cutter Attachment

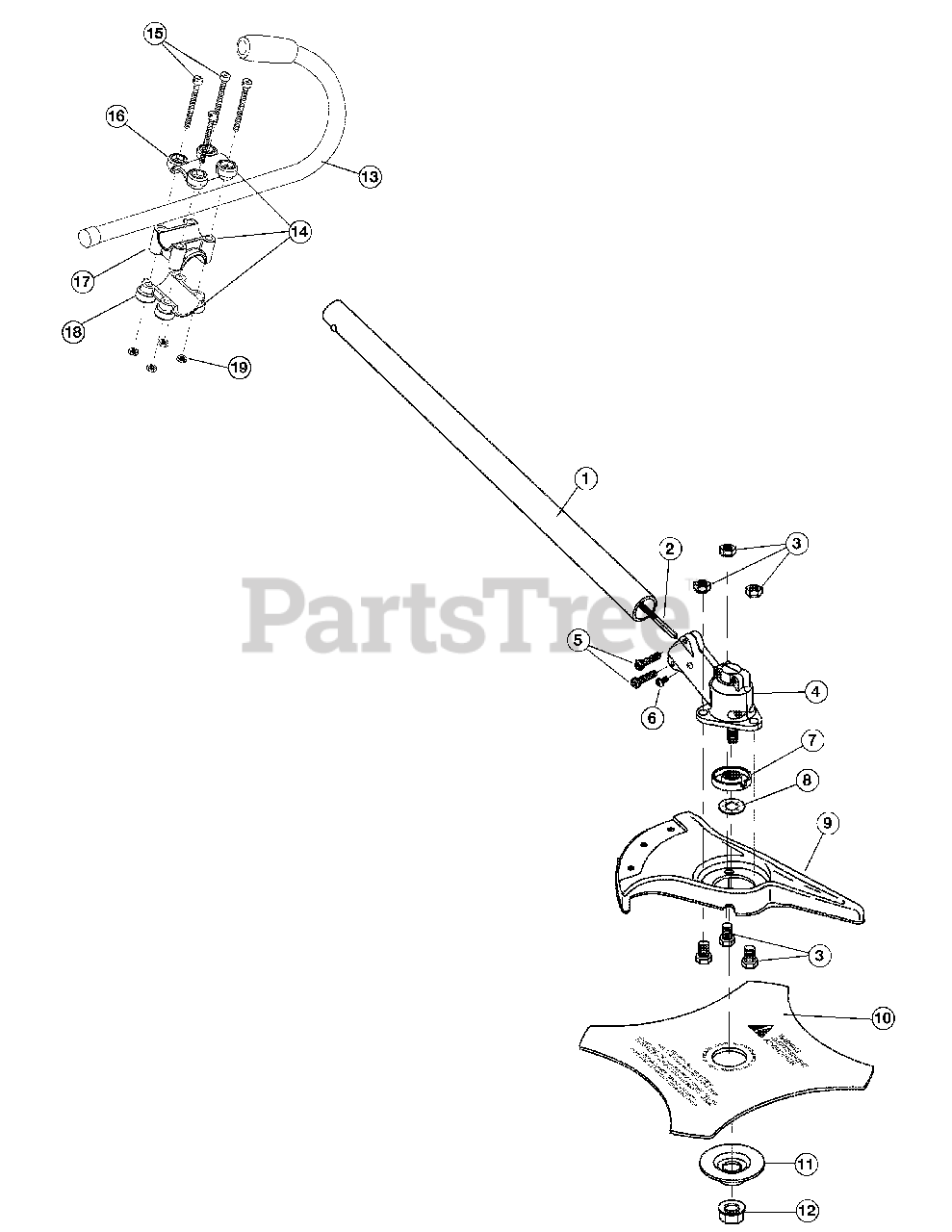

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 791-180804

Lower Drive Shaft Housing Assembly

$

$

Not available

2

Troy-Bilt 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182193

2 piece Gearbox Assembly (includes 28-30)

$99.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

7

Troy-Bilt 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

13

MTD 791-181099

J-Handle Assembly

$

$

Not available

14

Troy-Bilt 791-683295

Handle Bracket Assembly (includes 13-18)

$45.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180014B

Blade Retaining Kit (includes 11 & 12)

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod Tool

Note: not shown

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: not shown

$38.99

$

Usually ships in 3-6 days

0
