TB WC33 XP (12AE76JU066) - Troy-Bilt 33" Walk-Behind Mower (2016) Engine Accessories Parts Diagram

33" Walk-Behind Mower

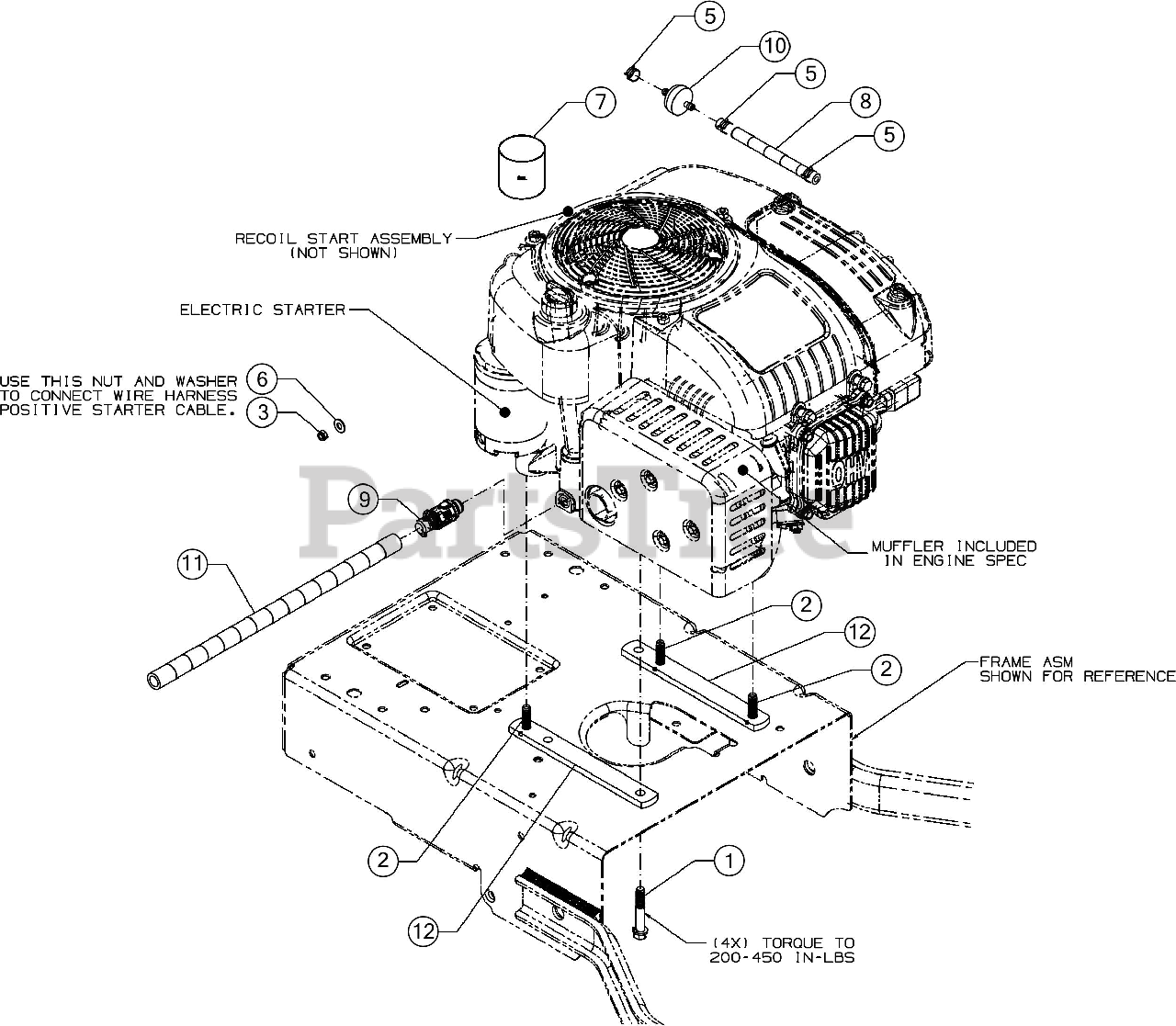

Engine Accessories Parts Diagram

  • Title
1

Troy-Bilt 710-05283

SCREW 3/8-16 X 2.25

$6.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1007

SCREW 3/8-16 X 1.500

$6.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 912-0691

HEX NUT
(Superseded to 712-0691)

$

$

Not available

5

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 936-0463

FLAT WASHER
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

7

N/A

OIL 10W30

Note: (Purchase Locally)

$

$

Not available

8

MTD 751-10349-6

FUEL HOSE LOW PERMEATION

$7.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 951-10517A

OIL DRAIN VALVE

$24.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 951-3013

FUEL FILTER

$5.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 751-3141-14

DRAIN HOSE 14''

$11.99

$

In Stock, Qty 8

0

12

Troy-Bilt 787-01932-4033

ENGINE PLATE MTG

$35.99

$

Usually ships in 3-6 days

0
