TB WC33 XP (12AE76JU011) - Troy-Bilt 33" Walk-Behind Mower (2017) Wheels Parts Diagram

33" Walk-Behind Mower

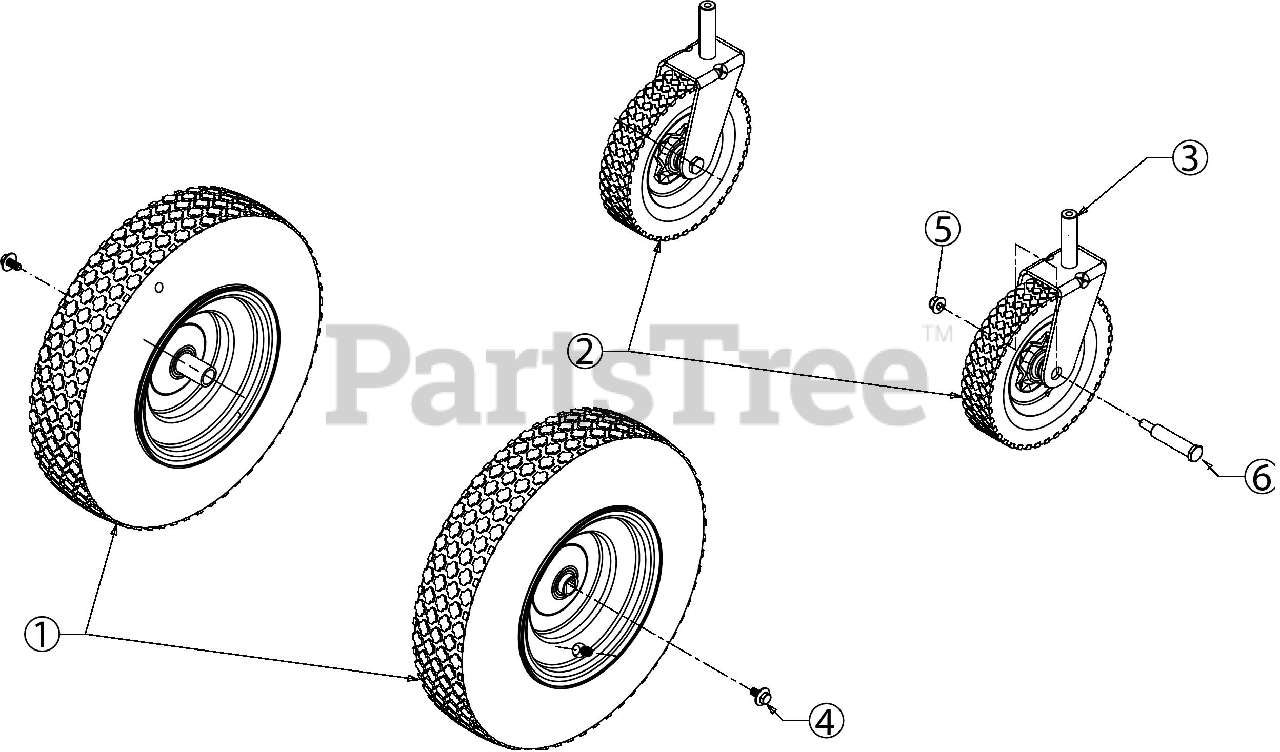

Wheels Parts Diagram

  • Title
1

Troy-Bilt 634-04285-0911

WHEEL ASSEMBLY (16 x 4 x 8)

$341.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 634-04173-0662

RIM ASSEMBLY (8.0X3.75) W/VALVE

$83.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 634-04140-0662

RIM ASSEMBLY (8 x 3.75 x .75)
(Superseded to 634-04173-0662)

$83.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 934-0255

TUBELESS VALVE

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 734-04237

TIRE 4.80 x 8

$122.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 941-0706

FLANGE BUSHING

$8.49

$

In Stock, Qty 7

0

2

Troy-Bilt 734-04243

CASTER WHEEL

$57.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 687-02263-4033

CASTER WHEEL YOKE

$83.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 738-04216A

SHOULDER SCREW:.625 x 2.515 x 1.00

$8.49

$

In Stock, Qty 9

0
