TB WC33 XP (12AE76JU011) - Troy-Bilt 33" Walk-Behind Mower (2016) Deck Assembly Parts Diagram

33" Walk-Behind Mower

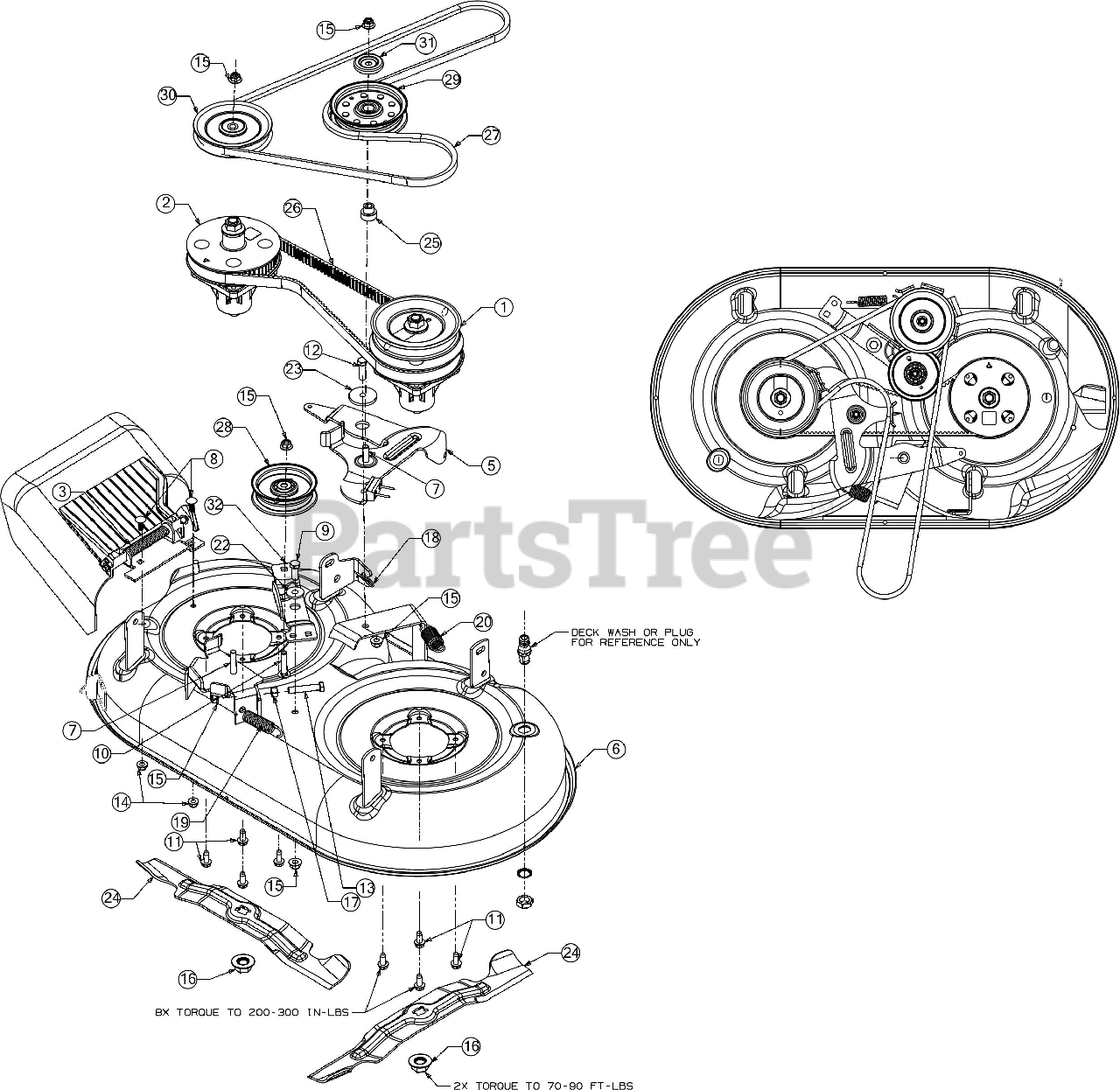

Deck Assembly Parts Diagram

  • Title
1

Troy-Bilt 918-04438C

SPINDLE ASSEMBLY

$223.99

$

In Stock, Qty 9

0

1

Troy-Bilt 710-04065

SCREW 1/4-10:.625

$6.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 913-04040A

TIMING PULLEY

$71.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 736-0315

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

1

Troy-Bilt 736-0564

THRUST WASHER .793X1.368X

$6.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 938-04233

SPINDLE SHAFT

$71.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 750-04724

DECK SPINDLE SPACER

$10.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 750-04936

SPACER- .792 X 1.060 X 1.860

$6.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 756-1188

DECK PULLEY

$36.99

$

In Stock, Qty 8

0

1

Troy-Bilt 787-01520

TIMING PULLEY PLATE

$11.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 712-05134

FLANGE NUT 5/8-18

$6.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 918-04439C

SPINDLE ASSEMBLY

$204.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 710-04065

SCREW 1/4-10:.625

$6.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 913-04040A

TIMING PULLEY

$71.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 936-0287

FLAT WASHER .793ID X 1.24OD X .060
(Superseded to 736-0287)

$

$

Not available

2

Troy-Bilt 736-0315

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

2

Troy-Bilt 938-04233

SPINDLE SHAFT

$71.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 750-04724

DECK SPINDLE SPACER

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 750-04936

SPACER- .792 X 1.060 X 1.860

$6.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 787-01520

TIMING PULLEY PLATE

$11.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 712-05134

FLANGE NUT 5/8-18

$6.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 931-04244

33" DISCHARGE CHUTE ASSEMBLY

$70.99

$

In Stock, Qty 10

0

4

Troy-Bilt 631-04252

33" MULCH COVER W/LABEL

Note: Not Shown

$33.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 987-02420

IDLER ARM ASSEMBLY

$75.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 687-02476-4033

33" DECK ASSEMBLY

$421.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0347

HEX SCREW 3/8-16 X 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-06234

BOLT 3/8-16 X 1.69 GR5

$6.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-1260A

SCREW 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3005

SCREW 3/8-16 X 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3184A

SCREW 3/8-16 X 2 GR5

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

16

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-04406

EXTENSION SPRING TIMING BELT

$10.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 732-04452

EXTENSION SPRING

$9.49

$

In Stock, Qty 9

0

22

Troy-Bilt 938-0347

SHOULDER SPACER

$10.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 942-04154A

17.9" BLADE

$20.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 754-04136

TIMING BELT .315 X 787 160T"

$73.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 954-04139

SPINDLE BELT A X 72.2

$36.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 756-04280A

IDLER PULLEY

$39.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 756-0616

V-IDLER PULLEY

$76.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 787-01440-0637

TIMING IDLER BRACKET

$19.99

$

In Stock, Qty 10

0
