TB WC28 (12ABW32G766) - Troy-Bilt 28" Walk-Behind Mower (2016) Grassbag Assembly Parts Diagram

28" Walk-Behind Mower

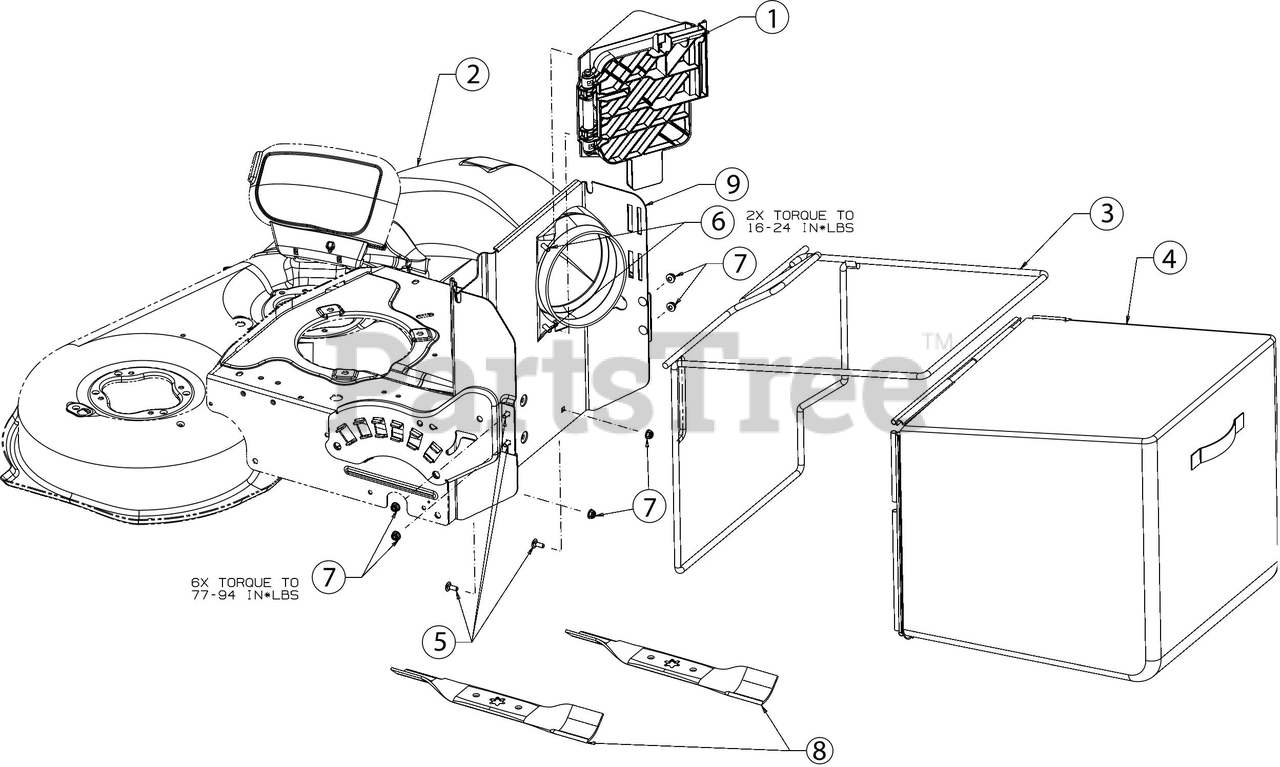

Grassbag Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-05335B

GRASSBAG DOOR ASSEMBLY

$53.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 726-04009

PUSH CAP
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

1

Troy-Bilt 747-06290B

CHUTE HINGE PIN

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 750-0885A

SPACER

$11.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 631-05337

CHUTE ASSEMBLY
(Superseded to 931-05337)

$135.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 647-05065

GRASSBAG FRAME

Variations

Troy-Bilt 647-05065-0637

Grass Catcher Bag Frame, 28" - POWDER BLACK (0637)

$81.99

$

In Stock, only 1 left!

0

$65.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 664-05086A

GRASSBAG - TROY-BILT 28" MOWER
(Superseded to 964-05086B)

$81.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 764-05060A

GRASSBAG - PLAIN 28" MOWER
(Superseded to 964-05060B)

$74.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 742-05235

BLADE (HI LIFT) (14.2)
(Superseded to 942-05235)

$28.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 787-03589

GRASSBAG SUPPORT BRACKET
(Superseded to 787-03589-0637)

Variations

Troy-Bilt 787-03589-0637

GRASSBAG SUPPORT B - POWDER BLACK (0637)

$112.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0
