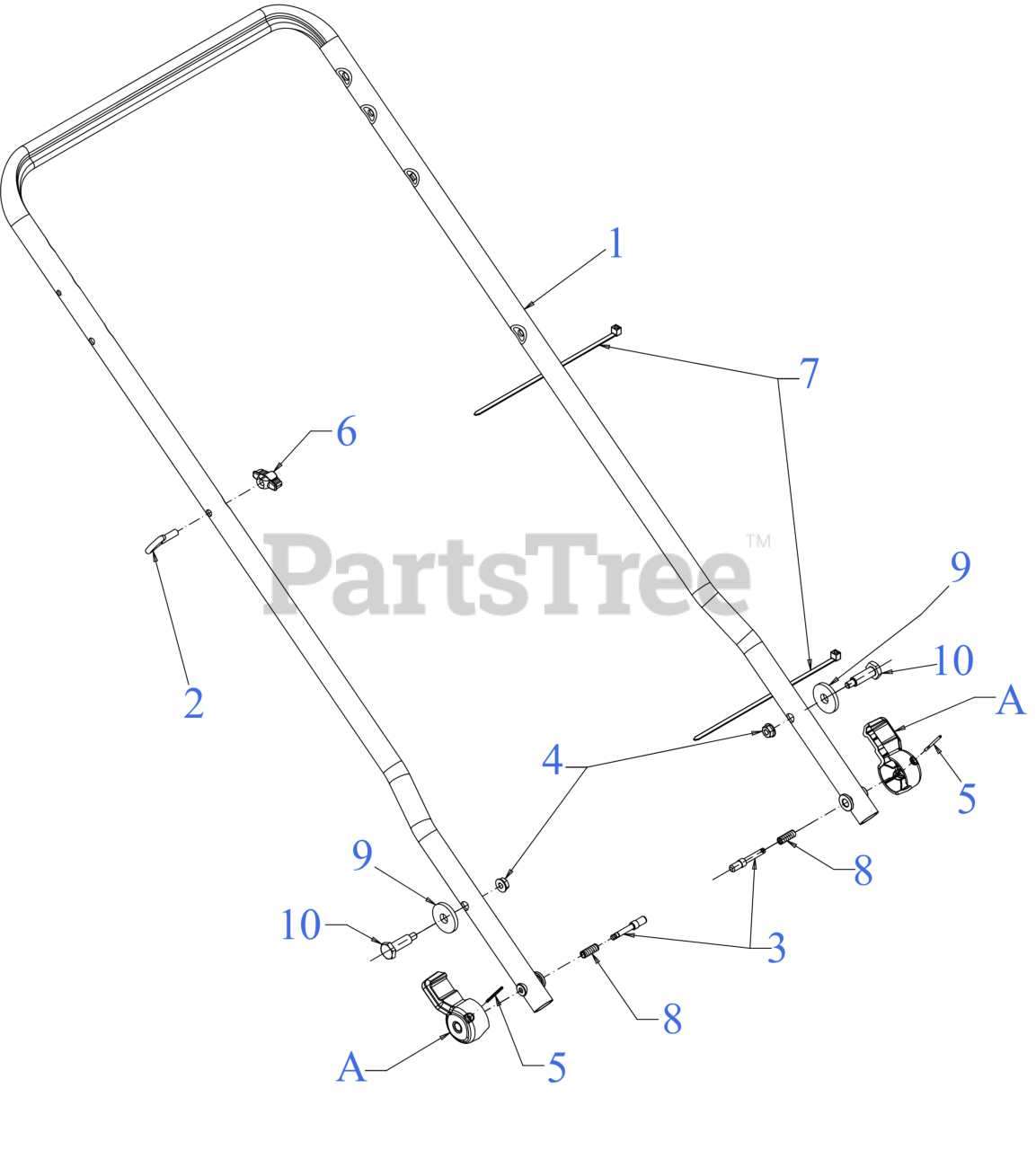

TB WC23 B XP (12ABR27B766) - Troy-Bilt 23" Walk-Behind Mower (2022) Handle Parts Diagram

23" Walk-Behind Mower

Handle Parts Diagram

  • Title
1

Troy-Bilt 649Z05213

23" HANDLE ASSEMBLY

$88.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 750-06473

HANDLE ADJUSTMENT SPACER

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 711-06563

HANDLE ADJUSTMENT PIN

$7.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 18

0

5

MTD 715-05060

SPLIT ROLL PIN 5/64 x 1.38

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 732-05422

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 736-0247

FLAT WASHER

$9.49

$

In Stock, Qty 14

0

10

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

A

Troy-Bilt 731-14531

LEVER HANDLE KNOB (7/8 RED)

$3.99

$

Usually ships in 3-6 days

0

A

Troy-Bilt 731-15031

LEVER HANDLE KNOB (7/8 YELLOW)

$3.99

$

In Stock, Qty 19

0

A

Troy-Bilt 731-16791

LEVER HANDLE KNOB (7/8 BLACK)

$3.49

$

Usually ships in 3-6 days

0

A

Troy-Bilt 731-17791

LEVER KNOB (SBD GRAY)

$3.49

$

In Stock, only 1 left!

0

A

Troy-Bilt 731-14531

LEVER HANDLE KNOB (7/8 RED)

$3.99

$

Usually ships in 3-6 days

0
