TB WC23 B XP (12ABR27B766) - Troy-Bilt 23" Walk-Behind Mower (2022) Deck Hardware Parts Diagram

23" Walk-Behind Mower

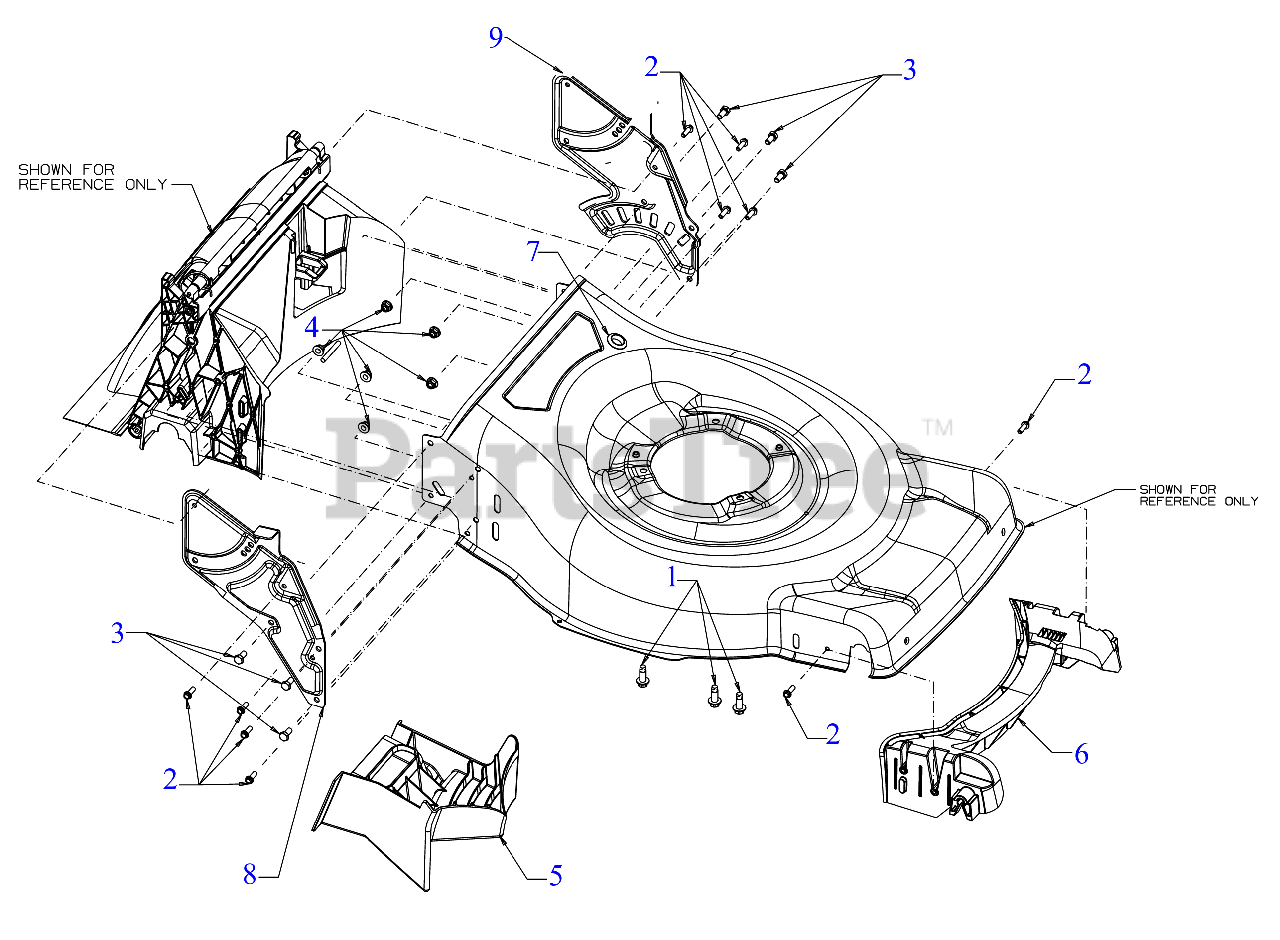

Deck Hardware Parts Diagram

  • Title
1

Troy-Bilt 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 4 left!

0

2

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3025

SCREW 5/16-18X .625 GR5

$3.99

$

In Stock, Qty 8

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 731-14438

23" MULCH PLUG

$25.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-14491

23" BAFFLE (FRONT)

$40.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 735-04059

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 787-04064

23" HANDLE BRACKET (RH)

Note: (Choose color when ordering)

$21.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 787-04065

23" HANDLE BRACKET (LH)

Note: (Choose color when ordering)

$21.99

$

Usually ships in 3-6 days

0
