TB WC23 B XP (12ABR27B766) - Troy-Bilt 23" Walk-Behind Mower (2022) Axles Parts Diagram

23" Walk-Behind Mower

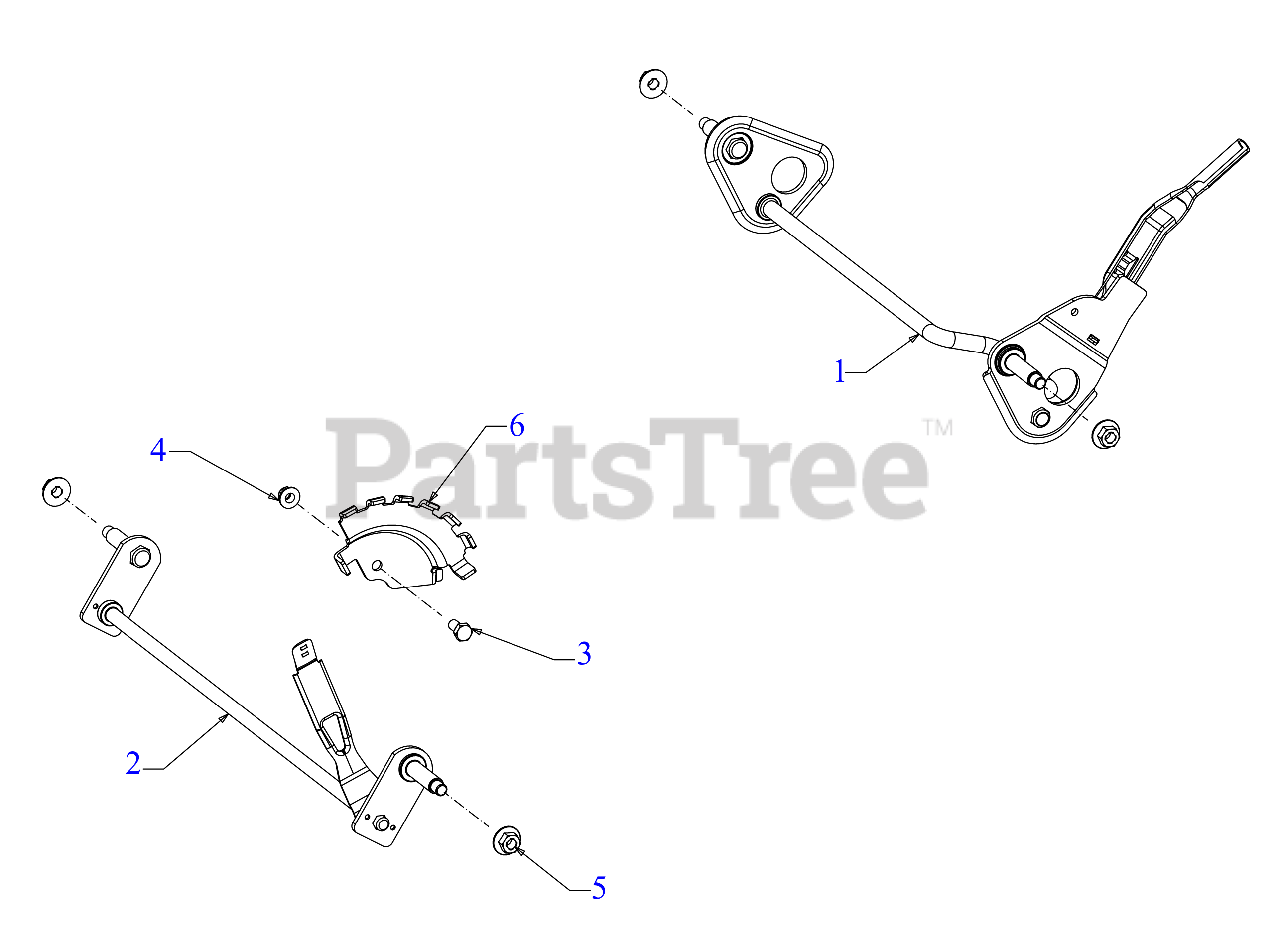

Axles Parts Diagram

  • Title
1

Troy-Bilt 611-05348

AXLE (REAR) (w/HGT ADJUSTMENT)

$76.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 611-05467

AXLE (FRONT) (9" WHEEL)

$46.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-3025

SCREW 5/16-18X .625 GR5

$3.99

$

In Stock, Qty 8

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 787-04085

23" HEIGHT ADJUSTMENT BRACKET(FRONT)

$12.99

$

Usually ships in 3-6 days

0
