TB 926 B (41AR926G711) - Troy-Bilt Handheld Blower Engine Parts Diagram

Handheld Blower

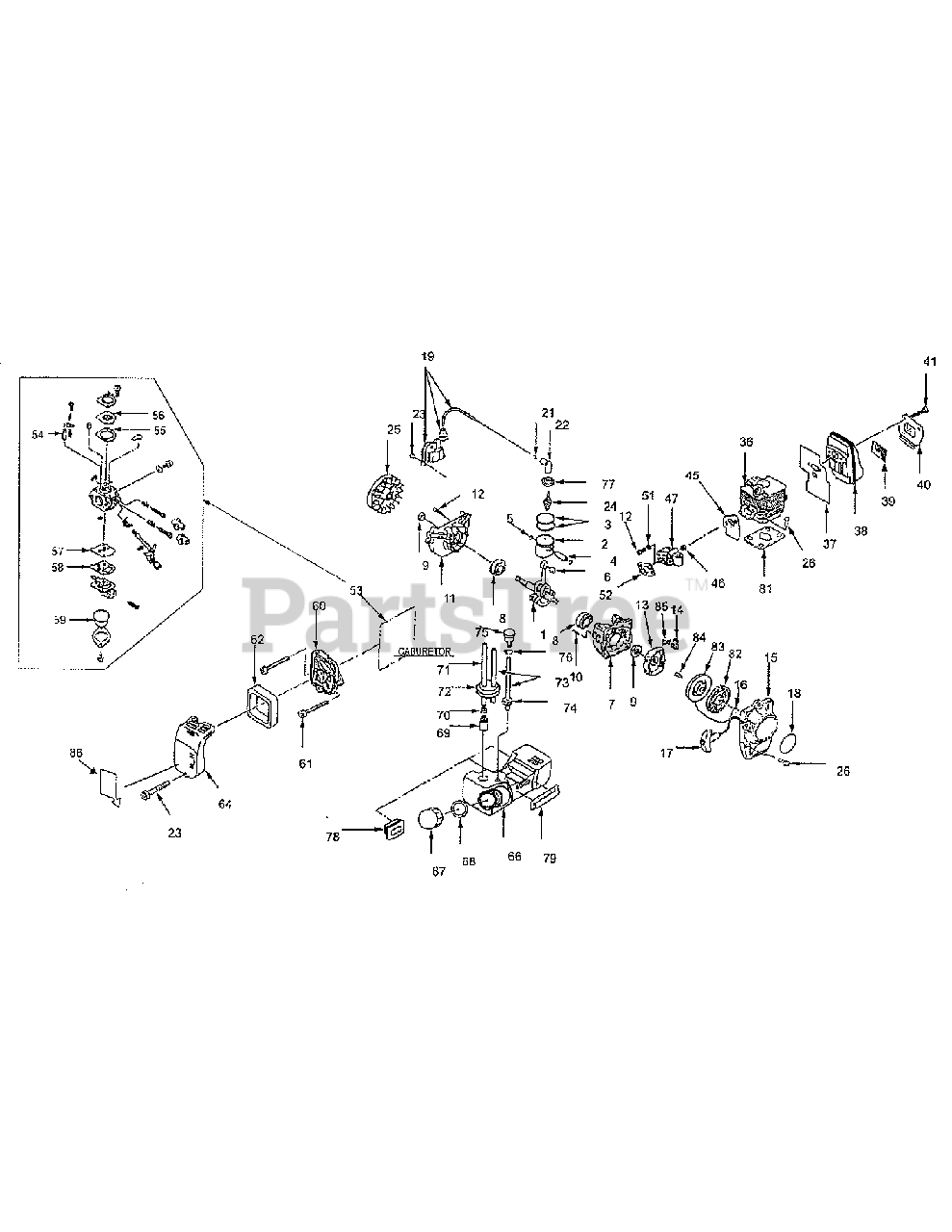

Engine Parts Diagram

  • Title

1

Troy-Bilt IM-115253470

Crankshaft

$

$

Not available

2

Troy-Bilt IM-11501331

Piston Assembly (Includes 2 Ref. 3)

$

$

Currently unavailable

3

Troy-Bilt IM-11511360

Ring, Piston

$

$

Currently unavailable

4

Troy-Bilt IM-115323040

Pin Piston
(Superseded to IM-115323041)

$

$

Not available

5

Troy-Bilt IM-198343210

Clip, Piston Pin

$

$

Not available

6

Troy-Bilt IM-042709008

Bearing, Needle

$

$

Not available

7

Troy-Bilt IM-110035190

Crankcase Assembly (Includes 1ea Ref. 8, 9 and 2 ea. Ref. 10)

$

$

Not available

8

Troy-Bilt IM-040106201

Bearing, Ball

$

$

Not available

9

Troy-Bilt IM-050209070

Seal, Oil

$7.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt IM-030500512

Pin, Dowel

$

$

Not available

11

Troy-Bilt IM-110035201

Crankcase Assembly (Includes 1 ea. Ref. 8 and 9

$

$

Not available

12

Troy-Bilt IM-010709010

Bolt M5x25

$

$

Not available

13

Troy-Bilt IM-155353090

Pulley Assembly Starter (Includes 1 ea. Ref. 14 and 85)

$

$

Not available

14

Troy-Bilt IM-155163110

Ratchet

$

$

Not available

15

Troy-Bilt IM-155103461

Recoil Assembly (Includes 1 ea. Ref. 16, 17, 82, 83 and 84)

$126.99

$

Usually ships in 3-6 days

0

16

MTD IM-155213050

Rope, Starter

$

$

Not available

17

MTD IM-155223061

Knob Starter

$

$

Not available

18

MTD IM-725960230

Name Plate

$

$

Not available

19

MTD IM-150053370

Coil Assembly Ignition

$

$

Not available

21

Troy-Bilt IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

22

MTD IM-150413034

Cap, Plug

$

$

Not available

23

Troy-Bilt IM-010709018

Bolt M4x20

$3.49

$

In Stock, Qty 5

0

24

Troy-Bilt IM-150265091

Spark Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt IM-150103500

Flywheel, Magneto

$47.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt IM-010709009

Bolt, M5x20

$

$

Not available

36

MTD IM-110213561

Cylinder

$

$

Not available

37

Gasket, Muffler See Ref. 80

$

$

Not available

38

Troy-Bilt IM-135403610

Muffler

$53.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt IM-135493010

Arrester

$4.49

$

In Stock, only 1 left!

0

40

Troy-Bilt IM-135433670

Baffle Plate, Outer

$

$

Not available

41

MTD IM-010709057

Bolt, M5x48

$

$

Not available

45

Gasket, Insulator See Ref. 80

$

$

Not available

46

Troy-Bilt IM-020100005

Nut

$

$

Not available

47

Troy-Bilt IM-199513590

Insulator
(Superseded to IM-199513590P)

$

$

Not available

51

MTD IM-026100005

Washer

$

$

Not available

52

Gasket See Ref. 80

$

$

Not available

53

MTD IM-130104401

Carburetor Assembly (Includes 1 ea Ref. 54, 55, 56, 57, 58 and 59)

$

$

Not available

54

Troy-Bilt IM-130153240

Valve, Float

$

$

Not available

55

Troy-Bilt IM-130123350

Gasket

$

$

Not available

56

Troy-Bilt IM-130283357

Diaphragm, Metering

$

$

Not available

57

MTD IM-130513409

Diaphragm, Pump

$

$

Not available

58

Troy-Bilt IM-130513413

Gasket

$

$

Not available

59

Troy-Bilt IM-198113900

Rubber

$24.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt IM-135713500

Case, Air Silencer

$19.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt IM-10709021

Bolt, M5x50

$

$

Currently unavailable

62

Troy-Bilt IM-135263360

Element, Air Filter

$9.49

$

In Stock, only 1 left!

0

64

Troy-Bilt IM-135713510

Cap, Case

$

$

Not available

66

Troy-Bilt IM-160113280

Tank, Fuel

$26.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt IM-160033200

Cap Assembly, Fuel Tank (Includes 1 ea Ref. 68)
(Superseded to IM-160033201)

$10.99

$

In Stock, Qty 6

0

68

Troy-Bilt IM-160993100

Gasket

$3.99

$

In Stock, Qty 6

0

69

Troy-Bilt IM-130303290

Filter, Fuel

$15.99

$

Usually ships in 3-6 days

0

70

MTD IM-198343260

Clip

$

$

Not available

71

MTD IM-198163080

Hose

$

$

Not available

72

Troy-Bilt IM-198113730

Rubber

$11.99

$

In Stock, only 1 left!

0

73

Troy-Bilt IM-068209182

Hose

$

$

Not available

74

Troy-Bilt IM-198113560

Rubber

$

$

Not available

75

Troy-Bilt IM-160043121

Valve, Reversing

$

$

Not available

76

Troy-Bilt IM-198343060

Clip

$

$

Not available

77

Troy-Bilt IM-198113920

Rubber

$

$

Not available

78

Troy-Bilt IM-198113620

Rubber

$

$

Not available

79

MTD IM-198113740

Rubber

$

$

Not available

80

Troy-Bilt IM-135994240

Gasket Kit (Includes 1 ea. Ref. 37, 45 and 52)

$

$

Not available

81

MTD IM-110993421

Gasket, Cylinder

$

$

Not available

82

Troy-Bilt IM-155263270

Spring, Spiral

$38.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt IM-155183121

Reel

$

$

Not available

84

Troy-Bilt IM-155343050

Screw

$

$

Not available

85

Troy-Bilt IM-155263261

Spring, Return

$

$

Not available

86

Troy-Bilt IM-725950160

Mark Sheet

$

$

Currently unavailable
