TB 86 K XP (12AI86K2266) - Troy-Bilt Walk-Behind Mower (2009) Drive Assembly Parts Diagram

Walk-Behind Mower

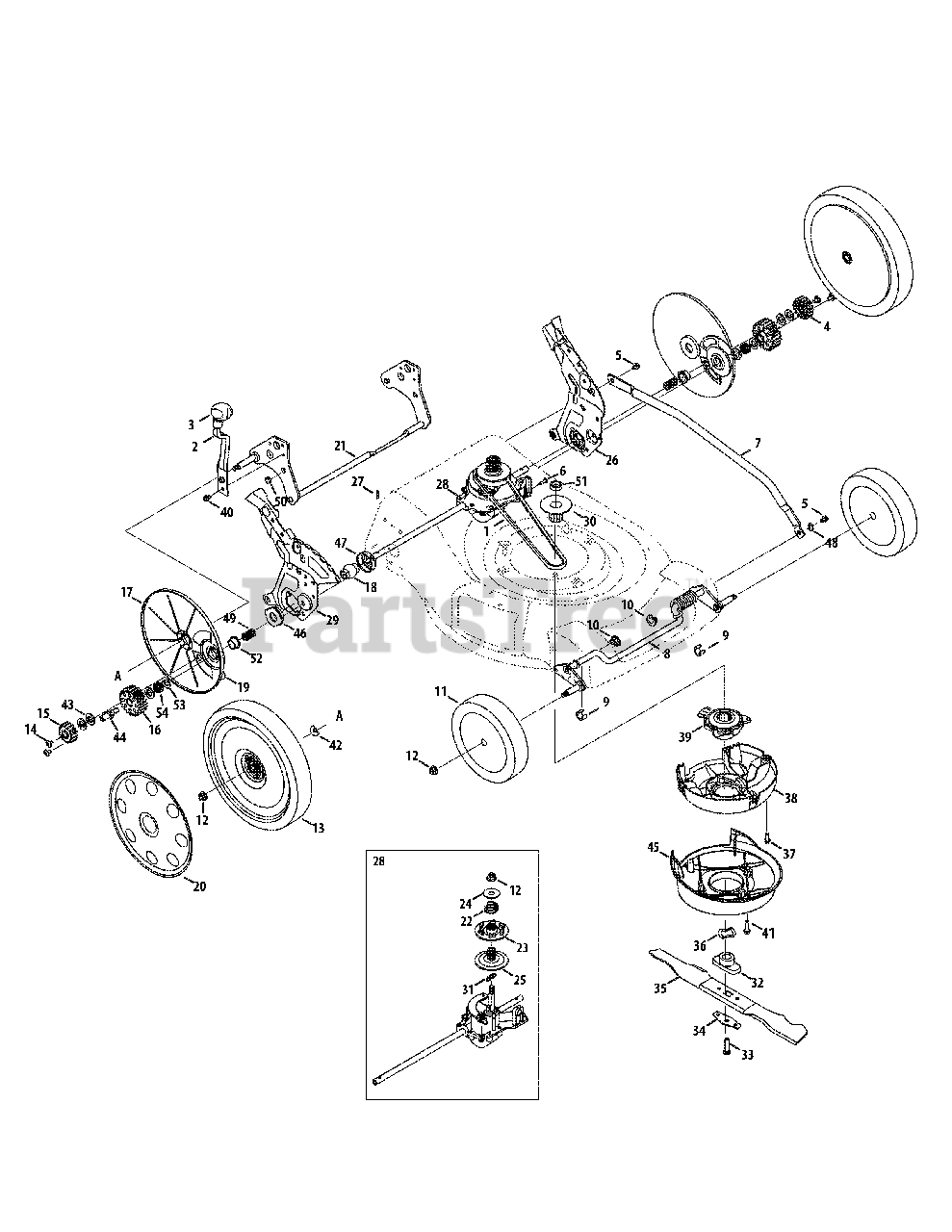

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 954-04176A

V-Belt

$23.99

$

In Stock, Qty 5

0

2

Troy-Bilt 732-04480A

Spring Lever

$9.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 720-04092

Height Adjuster Knob

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 917-04577A

Spur Gear, 16T - LH

$

$

Not available

5

Troy-Bilt 738-04278

Shldr. Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

6

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 749-04414A-0637

Cross Bracket

$18.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 687-02367B-0637

Front Bracket Assembly

$

$

Not available

9

Troy-Bilt 731-05470

Clip Spacer

$4.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

12

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 934-04404

Rear Wheel

$

$

Not available

14

Troy-Bilt 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 917-04578A

Spur Gear, 16T - RH

$15.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 917-04678

Gear, Spur, 23T

$35.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06145B

Wheel Dust Cover
(Superseded to 731-06145C)

$11.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

19

Troy-Bilt 787-01645

Dust Cover Seal Plate
(Superseded to 787-01645A)

$2.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 731-06146

Hub Cap

$20.99

$

Usually ships in 3-6 days

0

21

MTD 687-02390-0637

Rear Bracket Assembly

$

$

Not available

22

Troy-Bilt 732-04630

Compression Spring

$4.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-04316A

Upper Pulley

$

$

Not available

24

Troy-Bilt 936-0406

Flat Washer, .442 x 1.38 x .060

$6.99

$

In Stock, Qty 11

0

25

Troy-Bilt 756-04317A

Lower Pulley

$14.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 987-02503

Handle Bracket Assembly LH

Note: (Includes Ref. #’s 18, 46, & 47)

$34.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 918-04826A

Transmission Assembly

$105.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 987-02501

Handle Bracket Assembly RH
(Superseded to 987-02537)

Note: (Includes Ref. #’s 18, 46, & 47)

$48.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 756-04315A

Pulley, Half

$

$

Not available

31

Troy-Bilt 732-04313

Extension Spring

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

35

Troy-Bilt 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 936-0526

Washer, Wave, 1.38 x .88 x .029

$6.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-06112A

Engine Baffle

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 956-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

Troy-Bilt 710-0653

Screw, TT, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

41

Troy-Bilt 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 736-0182

Washer, Sprg, .500 x 1.00 x .022

$4.49

$

In Stock, Qty 7

0

43

Troy-Bilt 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 711-05040

Shf., .500 Dia.

$

$

Not available

45

Troy-Bilt 731-06284

Baffle

$26.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 748-04177

Bearing Support

$12.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 736-04413

Wshr, Wave, .385 ID x .598 OD

$3.99

$

In Stock, Qty 5

0

49

Troy-Bilt 732-04557

Sprg, Comp., .63 OD x 1.00 Lg.

$

$

Not available

50

Troy-Bilt 750-05061

Spacer, .690 x .870 x .150

$

$

Not available

51

Troy-Bilt 750-05022

Spcr., 7/8 x 1.265 x .27 Lg.

$

$

Not available

52

Troy-Bilt 750-05250

Spcr., Flg., .51 ID x .58 OD

$6.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 936-0369

Washer, Flat, .508 x 1.00 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 732-04650

Spr, Wave

$10.99

$

In Stock, only 2 left!

0
