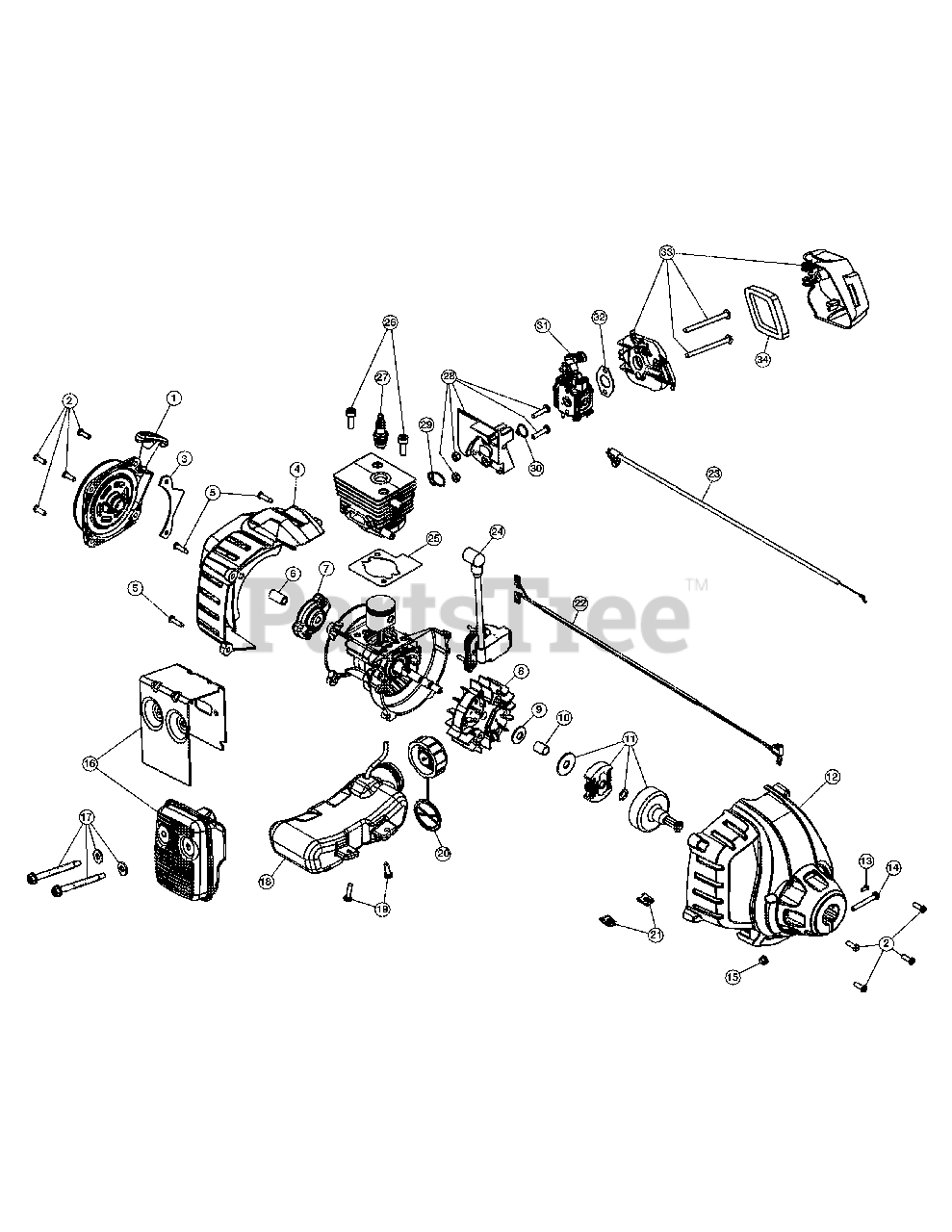

TB 80 EC (41BDT80C966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06829

Rear Cover Assembly (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-06244

Starter Assembly Guard (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-06245

Rear Engine Cover (Incl. 5)

$

$

Not available

5

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 753-06104

Adapter

$4.49

$

In Stock, Qty 7

0

7

Troy-Bilt 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

8

Troy-Bilt 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

12

Troy-Bilt 753-06249

Clutch Cover Assembly

Note: (Incl. 2, 13-15 & 21)

$

$

Not available

13

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 5

0

14

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-0161

Clamp Nut

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 753-06418

Muffler Assembly (Incl. 17)
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-06250

Fuel Tank Assembly (Incl. 19 & 20)

$21.99

$

In Stock, Qty 11

0

19

Troy-Bilt 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-06857

Fuel Cap

$7.99

$

In Stock, Qty 5

0

21

Troy-Bilt 791-182366

U-Shaped Nut

$5.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-06251

Throttle Cable

$7.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-06763

Module Assembly

$27.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 753-06440

Cylinder Gasket

$

$

Not available

26

Troy-Bilt 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-06189

Insulator Assembly (Incl. 29 & 30)

$7.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 753-06191

Aircleaner Assembly (Incl. 34)

$5.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 753-06954

Aircleaner Filter

$2.99

$

In Stock, Qty 20+

0

Troy-Bilt 753-06508

Short Block Assembly

Note: Not shown (Incl. Crankcase, Cylinder, Piston, 8-10 & 24-27)

$108.99

$

Usually ships in 3-6 days

0
