TB 80 EC (41ADT80C966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

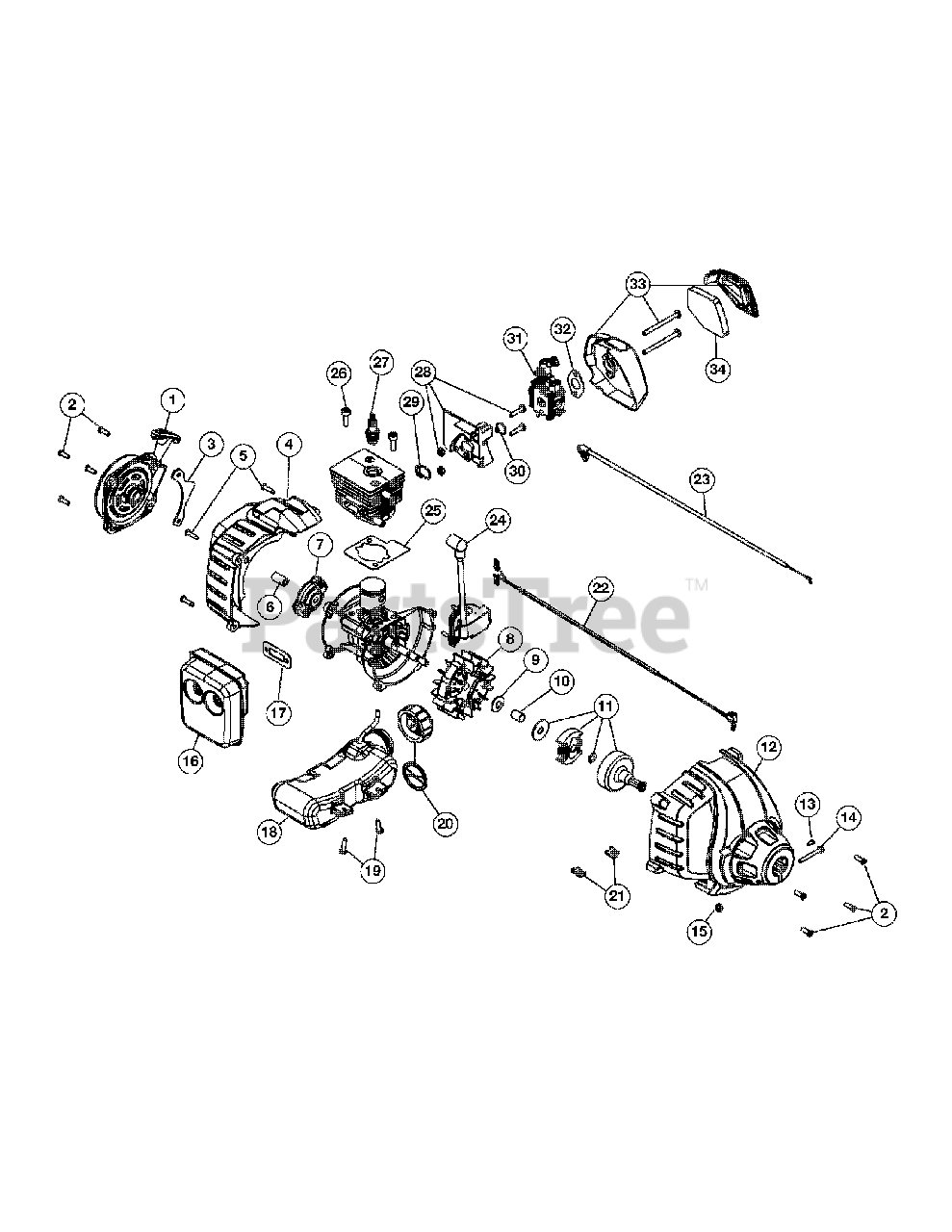

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06243

Rear Cover Assembly

Note: (Incl. Ref 2)

$19.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-06244

Starter Assembly Guard

Note: (Incl. Ref 2)

$3.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-06245

Rear Engine Cover

Note: (Incl. Ref 5)

$

$

Not available

5

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 753-06104

Adapter

$4.49

$

In Stock, Qty 7

0

7

Troy-Bilt 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

8

Troy-Bilt 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

12

Troy-Bilt 753-06249

Clutch Cover Assembly

Note: (Incl. Ref 2, 13-15 & 21)

$

$

Not available

13

Troy-Bilt 791-182519

Anti Rotation Screw

$4.99

$

In Stock, Qty 5

0

14

Troy-Bilt 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 791-180217

Clamp Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

16

MTD 753-06182

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-04619

Muffler Gasket

$9.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 753-06250

Fuel Tank Assembly

Note: (Incl. Ref 19 & 20)

$21.99

$

In Stock, Qty 11

0

19

Troy-Bilt 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 753-05057

Fuel Cap

$14.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182366

U-Shaped Nut

$5.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-06251

Throttle Cables

$7.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 753-05420

Module Assembly
(Superseded to 753-05376)

$

$

Not available

25

Troy-Bilt 753-06252

Cylinder Gasket

$3.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-06189

Insulator Assembly

Note: (Incl. Ref 28 & 29)

$7.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 753-06191

Aircleaner Assembly

Note: (Incl. Ref 34)

$5.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 753-06085

Aircleaner Filter

$3.49

$

In Stock, Qty 15

0

Troy-Bilt 753-06254

Short Block Assembly

Note: (Incl. Ref 8-10 7 24-27 Crankcase , Cylinder & Piston), Not shown

$

$

Not available

Troy-Bilt 49M2027P953

Electric Starter
(Superseded to 625-04120)

Note: Optional, Not shown

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 49MESCBP953

Power Start Bit
(Superseded to 49MASCBP953)

Note: Optional, Not shown

$20.99

$

In Stock, only 3 left!

0

Troy-Bilt 737-04041

Oil-2 cycle 3.20 oz Bottle
(Superseded to 737-05350)

Note: Optional, Not shown

$5.99

$

Usually ships in 3-6 days

0
