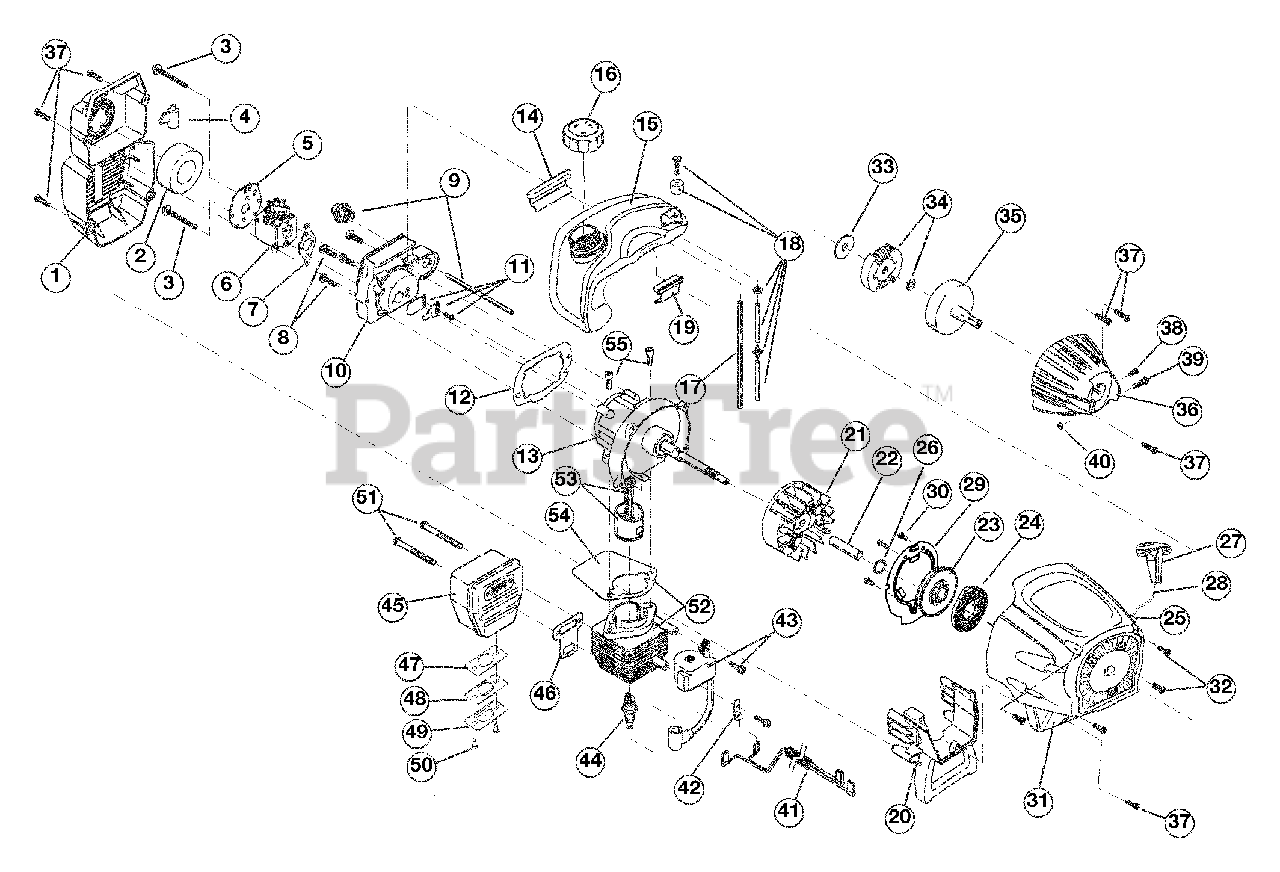

TB 75 SS (41BDT75C766) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04317

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 2 & 37)

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Troy-Bilt 753-1193

Choke Extension
(Superseded to 753-04227)

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-04318

Carburetor Assembly
(Superseded to 753-04338)

Note: (Incl. Ref No.7 & 18)

$96.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 18

0

10

Troy-Bilt 753-1196

Carb Mount Assembly

Note: (Incl. Ref No.8, 11 & 12)

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-04332

Crankcase Service Assembly

Note: (Incl. Ref No. 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04307

Fuel Tank Assembly

Note: (Incl. Ref No. 16-18)

$

$

Not available

16

Troy-Bilt 753-04084

Fuel Cap Assembly

$22.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 10

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 753-04702

Shroud Extension & Stand

Note: (Incl. Ref No. 37)

$29.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

MTD 791-181065

Spacer

$

$

Not available

23

Troy-Bilt 753-1199

Recoil Pulley Assembly

$24.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

25

Troy-Bilt 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 791-181247

Pulley Retainer
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 753-1201

Pressure Plate Assembly
(Superseded to 753-04417)

$

$

Not available

30

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-1203

Starter Housing Assembly

Note: (Incl. Ref No. 23-30,32 & 37)

$

$

Not available

32

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

33

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

34

Troy-Bilt 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

35

Troy-Bilt 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

MTD 753-1204

Clutch Cover Assembly

Note: (Incl. Ref No. 37-40)

$

$

Not available

37

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

41

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

42

MTD 791-611063

Ground Tab

$

$

Not available

43

Troy-Bilt 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 753-04618

Muffler Assembly
(Superseded to 753-05169)

Note: (Incl. Ref No. 46-51)

$112.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

47

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

48

MTD 753-04690

Exhaust Hood Diverter

$

$

Not available

49

MTD 753-04691

Exhaust Hood

$

$

Not available

50

Troy-Bilt 753-04315

Screws
(Superseded to 753-04110)

$

$

Not available

51

Troy-Bilt 753-04620

Muffler Mounting Bolts
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (Incl. Ref No. 54 & 55)

$83.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 753-04367

Piston and Rod Assembly

$

$

Not available

54

Troy-Bilt 753-1197

Cylinder Gasket

$

$

Not available

55

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

Troy-Bilt 753-1209

Piston Ring Set

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04381

Short Block Assembly
(Superseded to 753-04334)

Note: (Incl. Ref No.8,15,44,52-55) Not Shown

$224.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-181599

Clutch Springs

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0
