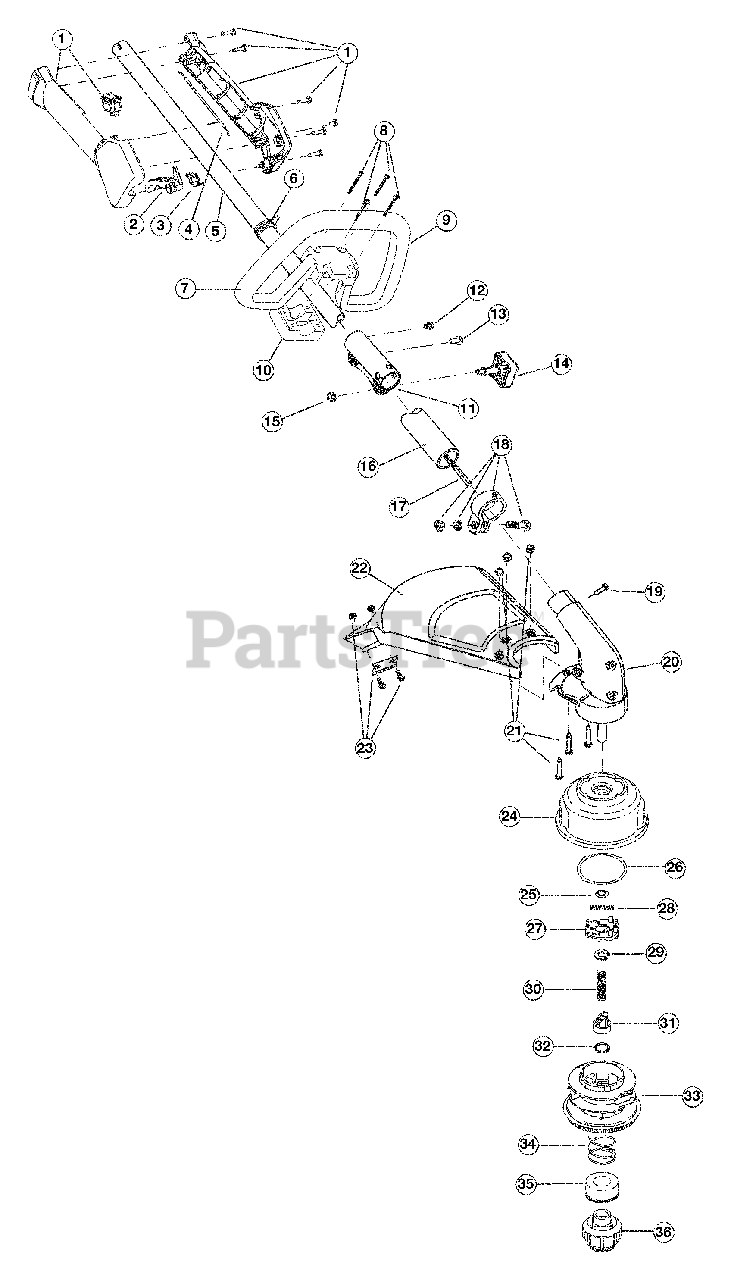

TB 75 SS (41ADT75C766) - Troy-Bilt String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

Boom And Trimmer Parts Diagram

  • Title
1

Troy-Bilt 753-04234

Throttle Housing Assembly

Note: (includes 2 & 3)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182877

Throttle Cable Assembly

$16.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

6

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (includes 8-10)

$

$

Not available

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

EZ-Link(TM) Coupler

Note: (includes 12-15)

$23.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, only 3 left!

0

$5.49

$

In Stock, Qty 11

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

15

Troy-Bilt 791-181886

Knob Retaining Bolt

$3.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly

Note: (includes 19)

$

$

Not available

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

20

Troy-Bilt 753-04309

Gear Box Assembly

$

$

Not available

21

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

22

Troy-Bilt 753-1213

Shield Assembly
(Superseded to 1A6902)

Note: (includes 23)

$

$

Not available

23

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 791-181457

Outer Spool Assembly

Note: (includes 25)

$39.99

$

In Stock, only 1 left!

0

25

$4.49

$

In Stock, Qty 12

0

26

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

$7.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

$4.49

$

In Stock, Qty 8

0

$4.49

$

In Stock, Qty 9

0

$

$

Not available

$3.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

35

$

$

Not available

36

Troy-Bilt 791-181468B

Bump Head Knob Assembly

Note: (includes 34 & 35)

$

$

Not available

Troy-Bilt 753-04218

Reel and Line Assembly

Note: Optional Accessory; Item Not Shown

$

$

Not available

Troy-Bilt 791-682075B

Shoulder Strap

Note: Optional Accessory; Item Not Shown

$38.99

$

Usually ships in 3-6 days

0
