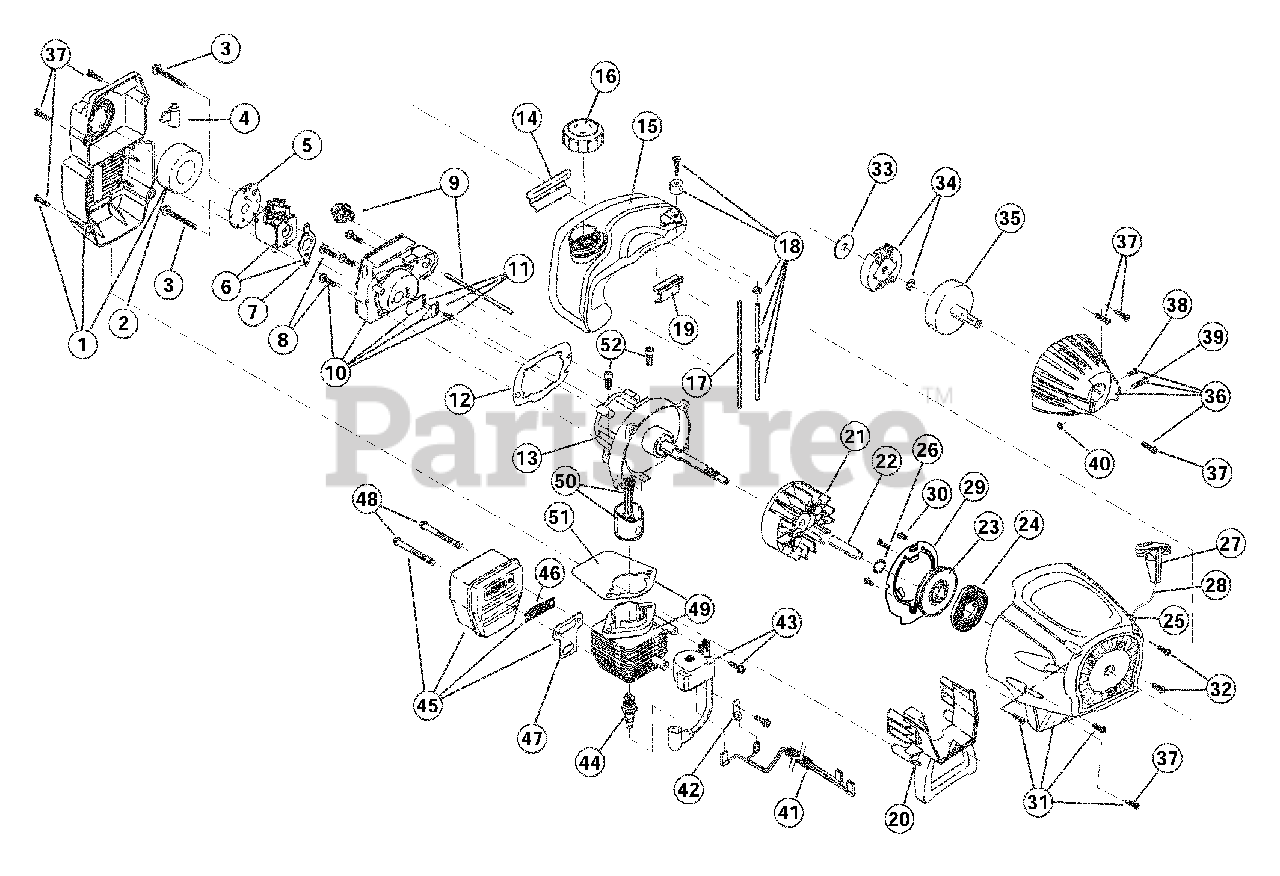

TB 75 SS (41ADT75C066) - Troy-Bilt String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

MTD 753-1192

Air Cleaner/Muffler Cover Assembly (includes 2 & 37)

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Troy-Bilt 753-1193

Choke Extension
(Superseded to 753-04227)

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-04338

Carburetor Assembly (includes 7 & 18)

$96.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

10

Troy-Bilt 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-04401

Crank Case Service Assembly (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04307

Fuel Tank Assembly (includes 16-18)

$

$

Not available

16

Troy-Bilt 753-04084

Fuel Cap Assembly

$22.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 10

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

21

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-04459

Recoil Pulley Assembly
(Superseded to 753-04823)

$33.99

$

In Stock, Qty 8

0

24

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

25

Troy-Bilt 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 753-04417

Pressure Plate Assembly

$

$

Not available

30

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-04402

Starter Housing Assembly (includes 23-30, 32 & 37)

$66.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

33

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

34

Troy-Bilt 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

35

Troy-Bilt 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

Troy-Bilt 753-04403

Clutch Cover Assembly (includes 37-40)

$

$

Not available

37

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

41

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

42

MTD 791-611063

Ground Tab

$

$

Not available

43

Troy-Bilt 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 791-182066

Muffler Assembly (includes 47, 48)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 791-182747

Spark Arrestor Screen

$

$

Not available

47

Troy-Bilt 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

48

Troy-Bilt 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

49

Troy-Bilt 753-04323

Cylinder Assembly (includes 51, 52)
(Superseded to 753-04814)

$83.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

51

Troy-Bilt 753-1197

Cylinder Gasket

$

$

Not available

52

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

Troy-Bilt 791-180090

O.E.M. Carburetor Repair Kit Item Not Shown

$60.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180091

Gasket Diaphragm Repair Kit Item Not Shown

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1209

Piston Ring Set Item Not Shown

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04404

Short Block Assembly (includes 8, 13, 44, 47, & 49-52)
(Superseded to 753-04812)

Note: Item Not Shown

$208.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-1815992

Clutch Springs Item Not Shown

$

$

Currently unavailable
