TB 75 SS (41ADT75C063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

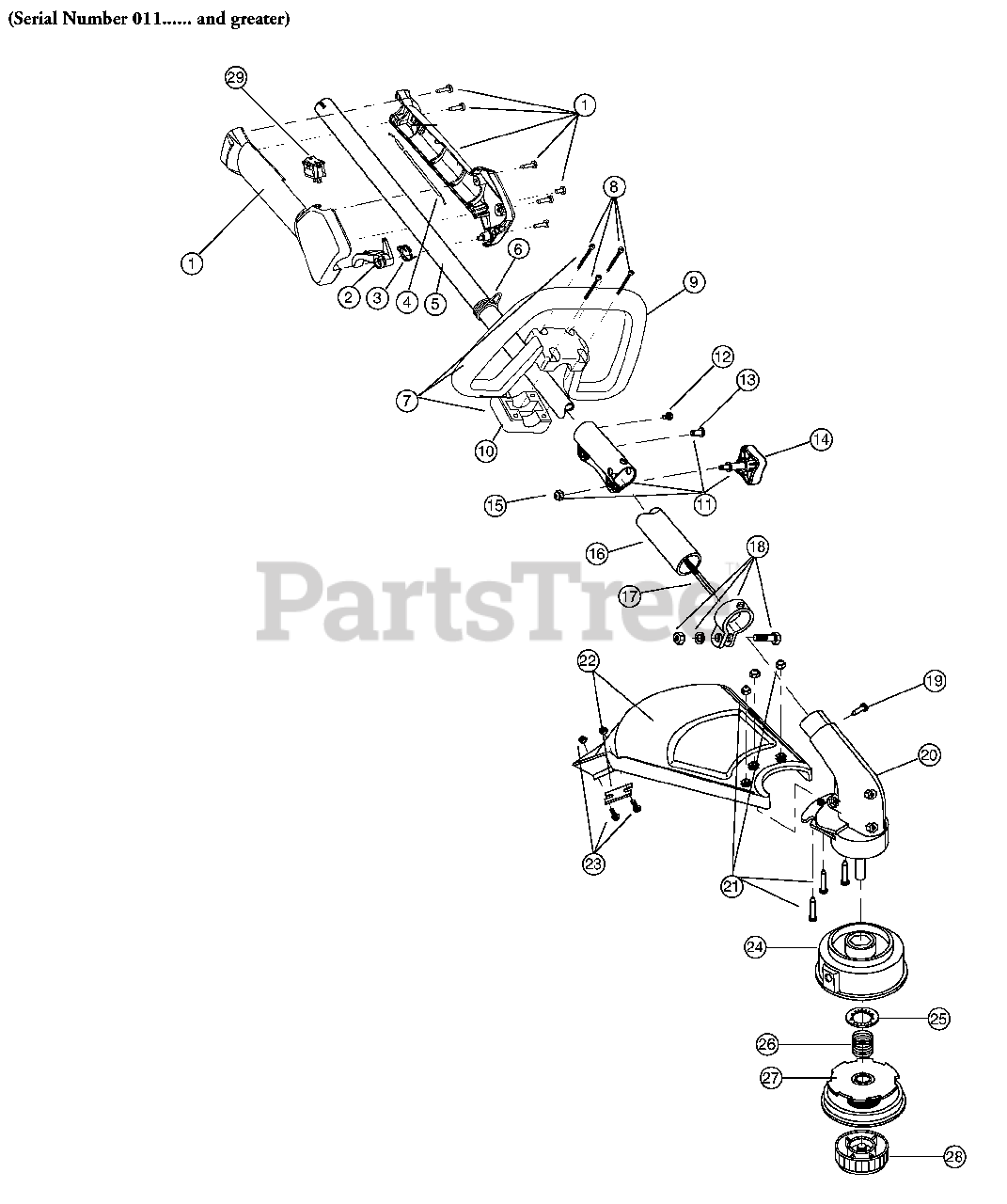

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 753-1211

Throttle Housing and Trigger Assembly
(Superseded to 753-04234)

Note: (includes 2 & 3)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-00042

Throttle Trigger
(Superseded to 753-06754)

$7.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182877

Throttle Cable Assembly

$16.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-182309

Upper Drive Shaft Housing Assembly
(Superseded to 753-04344)

$85.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

Troy-Bilt 753-1190

EZ-Link (tm) Coupler

Note: (includes 12-15)

$23.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

13

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

14

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

15

Troy-Bilt 791-181886

Knob Retaining Bolt

$3.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 791-153597

Lower Clamp Assembly

Note: (includes 19)

$

$

Not available

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

20

Troy-Bilt 791-180549

Gear Box Assembly

$

$

Not available

21

Troy-Bilt 791-180547

Shield Mounting Hardware

$

$

Not available

22

Troy-Bilt 753-1213

Shield and Blade Assembly
(Superseded to 1A6902)

$

$

Not available

23

Troy-Bilt 753-04013

Blade Assembly

$

$

Currently unavailable

24

Troy-Bilt 791-153619

Outer Spool and Eyelet Assembly

$27.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-610660

Reataining

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 791-153066B

Bunp Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

29

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: Optional Accessories;Items Not Shown

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 753-1156

Reel and Line Assembly
(Superseded to 953-1156)

Note: Optional Accessories;Items Not Shown

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

Shoulder Strap Assembly

Note: Optional Accessories;Items Not Shown

$38.99

$

Usually ships in 3-6 days

0
