TB 720 R (41AJTB-A034) - Ryobi Trimmer Plus Turbo Blower Attachment Replacement Parts Parts Diagram

Trimmer Plus Turbo Blower Attachment

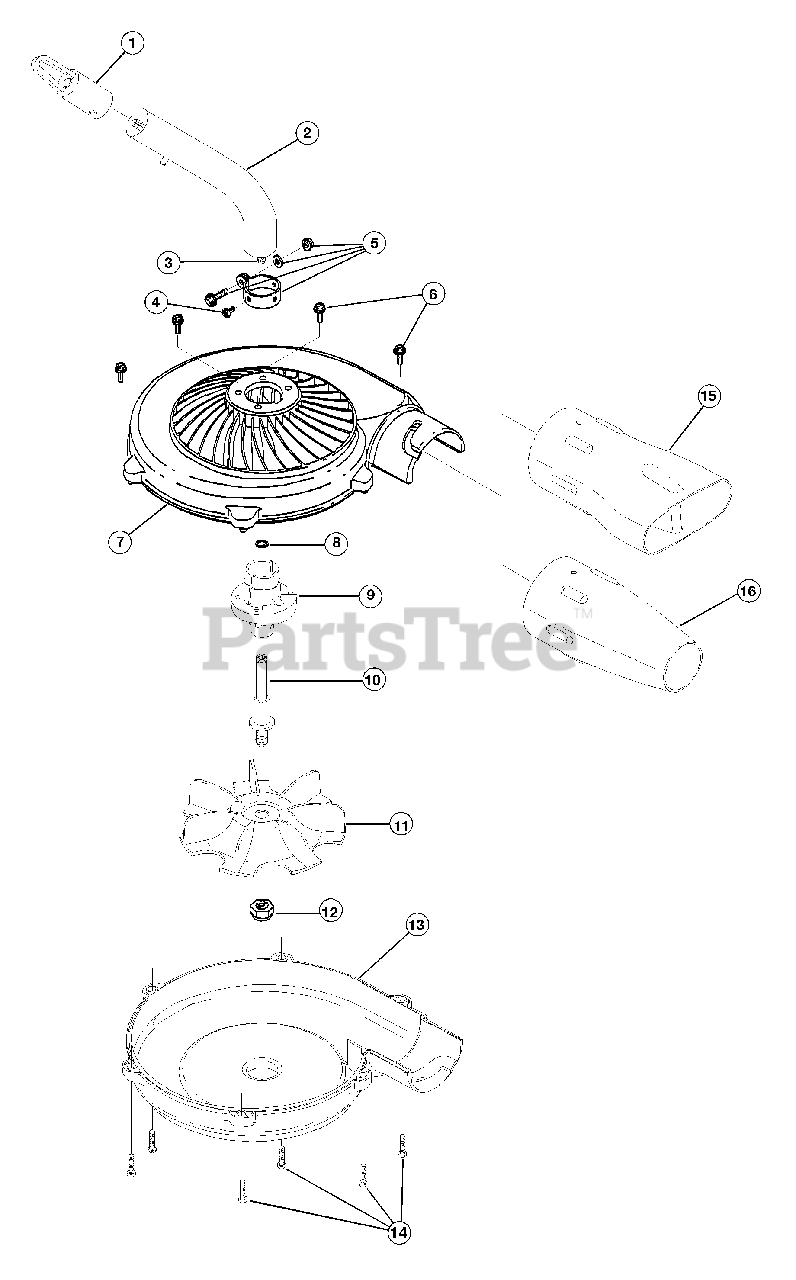

Replacement Parts Parts Diagram

  • Title

1

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

2

MTD 791-180340

Drive Shaft Housing Assembly
(Superseded to 753-1218)

$105.99

$

Usually ships in 3-6 days

0

3

MTD 791-181852

Drive Shaft Assembly

$59.99

$

In Stock, only 1 left!

0

4

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

5

MTD 791-153597

Lower Clamp Assembly

Note: (includes 4)

$

$

Not available

6

MTD 791-181853

Mounting Screw

$

$

Not available

7

MTD 791-181630

Upper Housing
(Superseded to 791-181996)

$

$

Not available

8

MTD 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

In Stock, only 2 left!

0

9

MTD 791-181636

Bushing Assembly Housing

$

$

Not available

10

MTD 791-181634

Shaft Impeller

$

$

Not available

11

MTD 791-181635

Impeller

$

$

Not available

12

MTD 791-181637

Lock Nut

$

$

Not available

13

MTD 791-181631

Lower Housing
(Superseded to 791-181997)

$

$

Not available

14

MTD 791-181345

Mounting Screw

$4.49

$

In Stock, only 4 left!

0

15

MTD 791-181632

Flare Nozzle

$

$

Not available

16

MTD 791-181633

Concentrator Nozzle

$24.99

$

In Stock, only 1 left!

0
