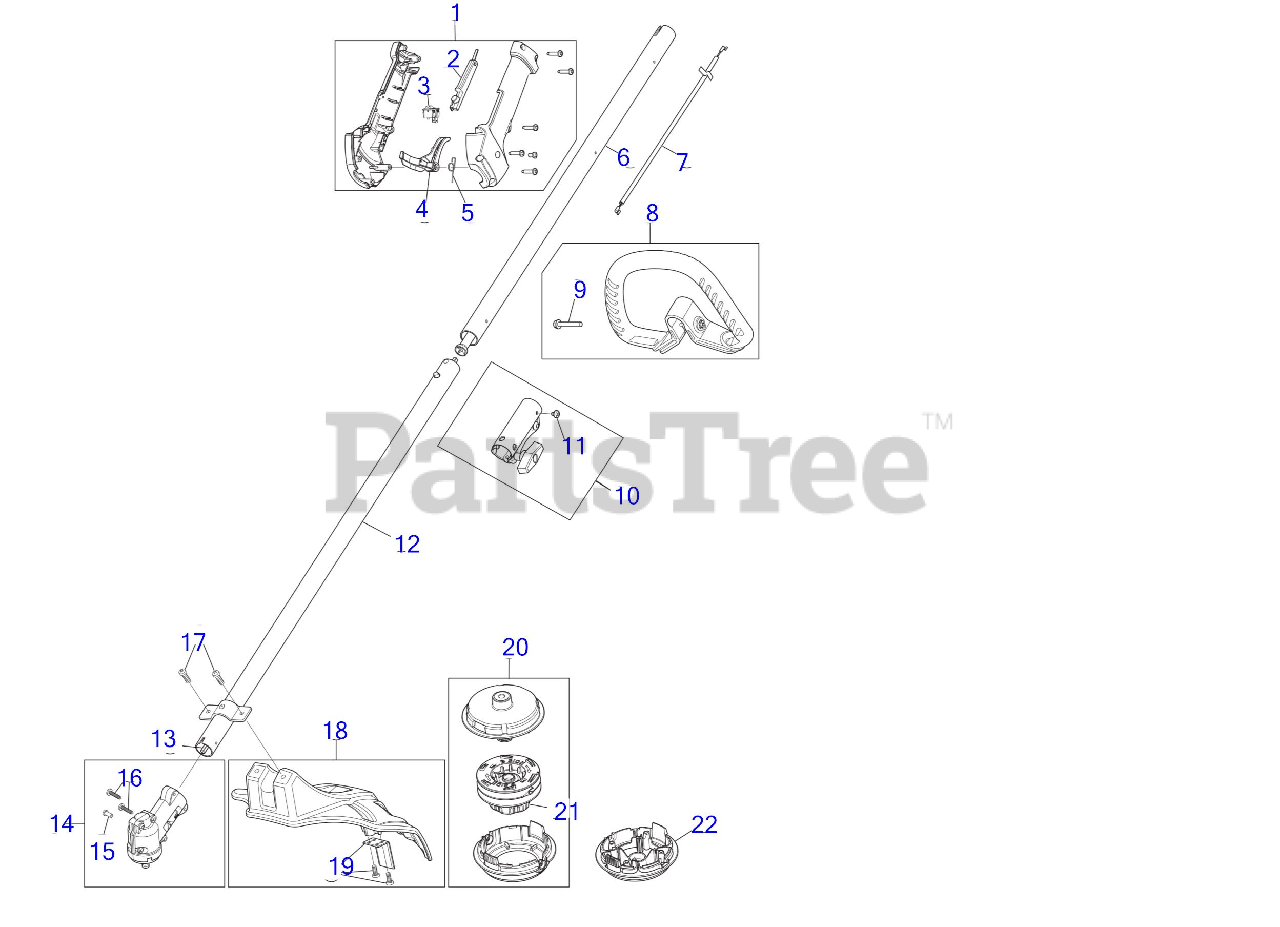

TB 685 EC (41CDZ68C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08344

Throttle Housing Assembly includes 2 - 5)

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-08433C-10

Throttle Trigger Lock-Out

$3.49

$

In Stock, Qty 14

0

3

Troy-Bilt 791-182405

Throttle Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

Troy-Bilt 731-04970B-10

Throttle Trigger

$9.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-08328

Upper Drive Shaft Assembly

$21.99

$

In Stock, Qty 6

0

7

Troy-Bilt 946-05123

Throttle Cable

$5.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-06039

D-Handle Assembly includes 9)

$11.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-1190

Split Boom Coupler includes 11)

$23.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 753-08332

Lower Drive Shaft Housing

$19.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-08180

Gearbox Assembly includes 15 and 16)

$45.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 6

0

16

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 753-08177

Shield Assembly includes 19)

$12.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

20

Troy-Bilt 841-012507S

Cutting Head Assembly includes 21)

$18.99

$

In Stock, Qty 11

0

21

Troy-Bilt 753-08563

Bump Knob

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 841-032560S

Cap Assembly (with Plug)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05756

Cutting Blades

Note: (Not Shown)

$7.99

$

In Stock, Qty 5

0
