TB 675 EC (41BDZ67C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

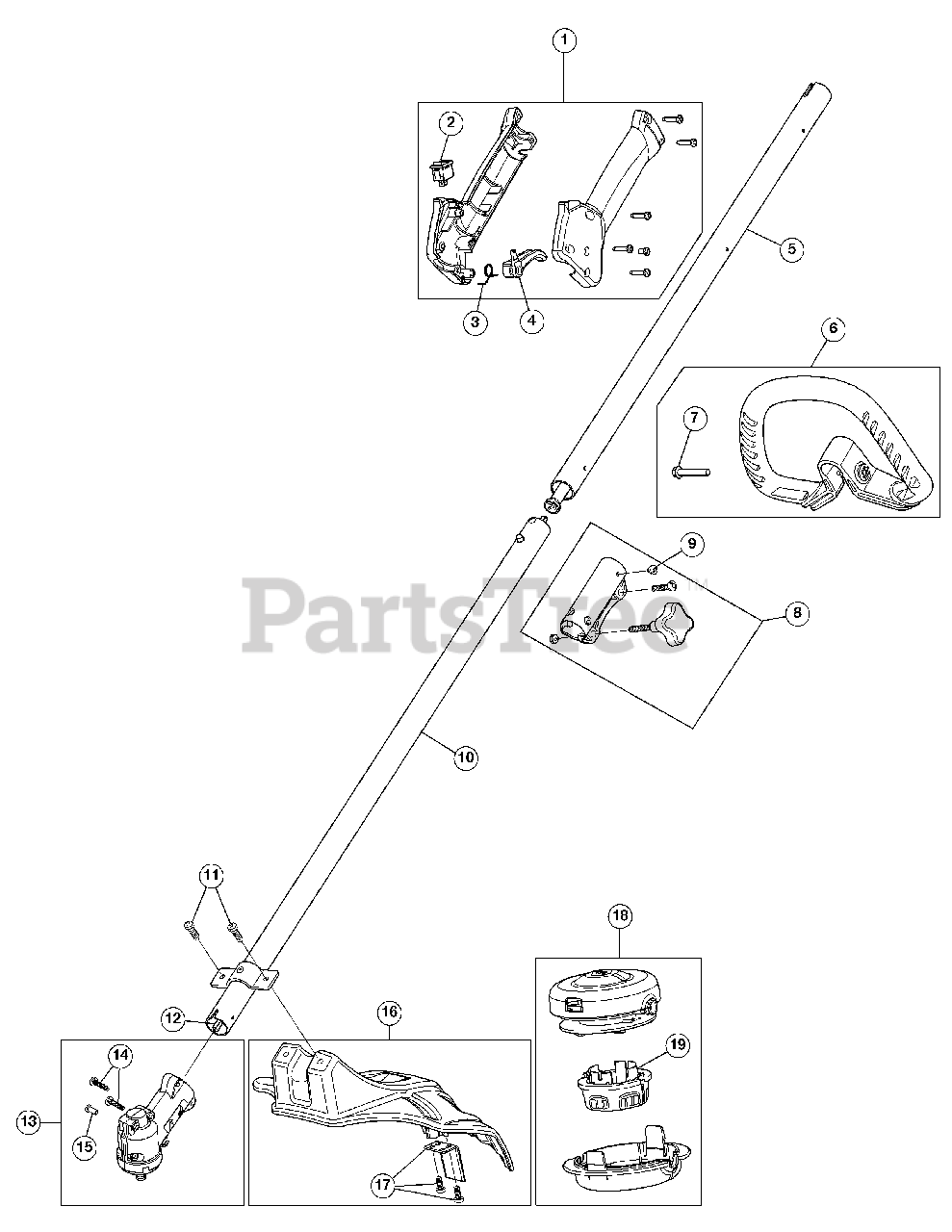

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, Qty 5

0

6

Troy-Bilt 753-06039

D-Handle Assembly (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 9)

$23.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

10

Troy-Bilt 753-06139

Lower Drive Shaft Housing

$20.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-08180

Gearbox Assembly (Incl. 14 and 15)

$45.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-08177

Shield Assembly (Incl. 17)

$12.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

18

Troy-Bilt 753-08202

Cutting Head Assembly (Incl. 19)

$20.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-08157

Bump Knob

$5.49

$

In Stock, Qty 9

0

Troy-Bilt 49U2341K953

Round Line-.095, 40' Trimmer Line

Note: (Optional Accessory)(not shown)

$

$

Not available

Troy-Bilt WLM-195

Maxi Edge .095, 200' Trimmer Line

Note: (Optional Accessory)(not shown)

$14.99

$

In Stock, only 4 left!

0
