TB 672 (24A-67M3066) - Troy-Bilt Jet Sweep Walk-Behind Blower (2012) 170-C0A-11 Cylinder Head Parts Diagram

Jet Sweep Walk-Behind Blower

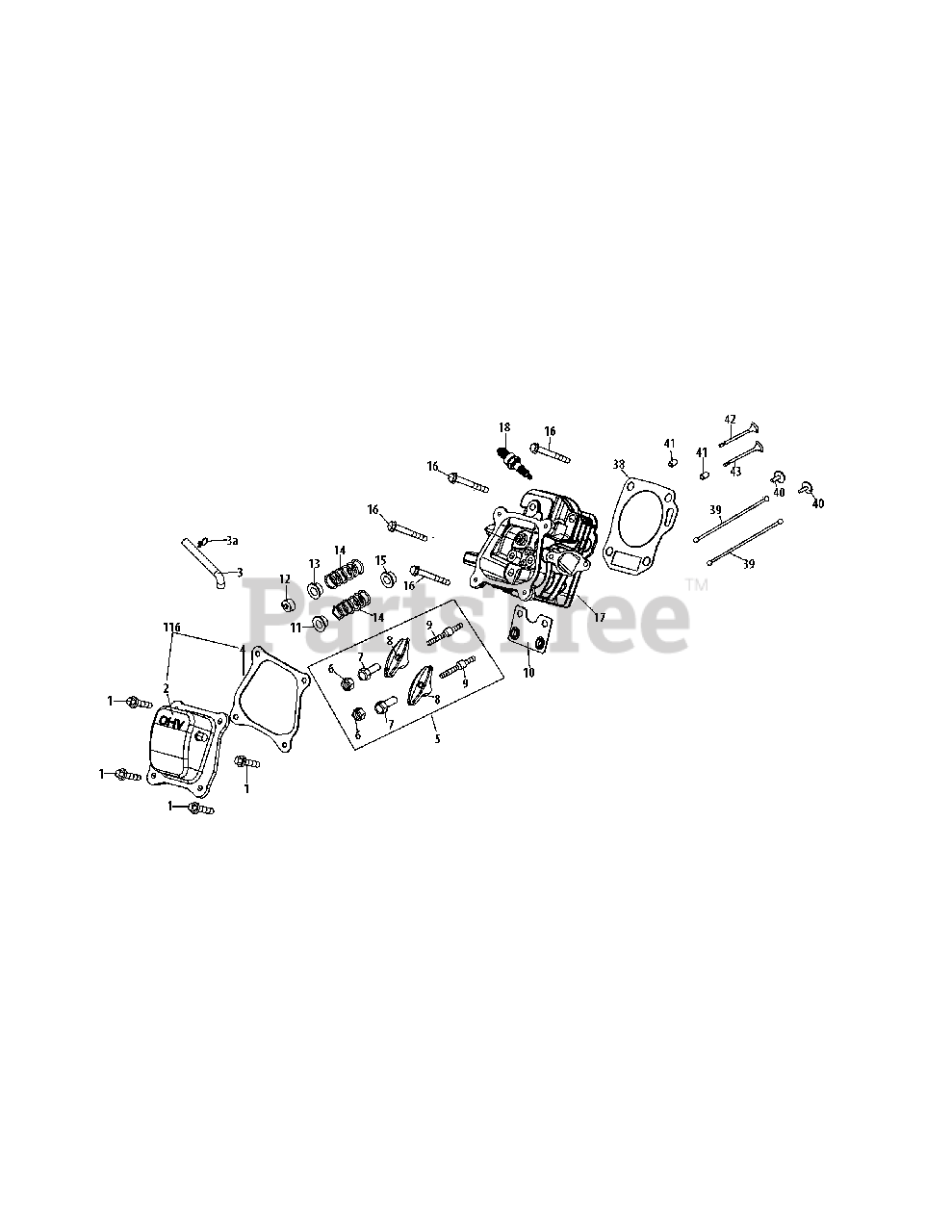

170-C0A-11 Cylinder Head Parts Diagram

  • Title
1

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11054A

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-07059

Breather Hose Assembly

$6.49

$

In Stock, only 1 left!

0

3a

Troy-Bilt 726-04101

Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 11

0

5

Troy-Bilt 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 751-11124

Nut,Pivot Locking

$9.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-12000

Retainer, Intake Valve Spring

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 951-12002

Adjuster, Exhaust Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 951-12003

Retainer, Exhaust Valve Spring

$4.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

15

Troy-Bilt 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

17

Troy-Bilt 951-10668A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl.4,6-15,17,20,25,26,38,42,43)

$170.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 951-11572

Gasket, Cylinder Head

$11.99

$

In Stock, Qty 18

0

39

$17.99

$

In Stock, only 3 left!

0

$8.49

$

In Stock, only 4 left!

0

41

Troy-Bilt 715-04090

Dowel Pin, 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

42

$64.99

$

Usually ships in 3-6 days

0

43

$64.99

$

Usually ships in 3-6 days

0

116

Troy-Bilt 951-11063A

Valve Cover Kit
(Superseded to 951-12626)

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z170-C0A-11

Complete Engine
(Superseded to 952Z170-CU)

Note: (Not Shown)

$675.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12573

Gasket Kit - External
(Superseded to 951-12026A)

Note: (Not Shown) (Incl.4,20,25-27,29)

$31.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12572

Gasket Kit - Complete

Note: (Not Shown) (Incl.4,20,25-27,29,38,52,53,62,66,69)

$66.99

$

Usually ships in 3-6 days

0
