TB 672 (24A-672J766) - Troy-Bilt Jet Sweep Walk-Behind Blower (2016) Louver Plate Parts Diagram

Jet Sweep Walk-Behind Blower

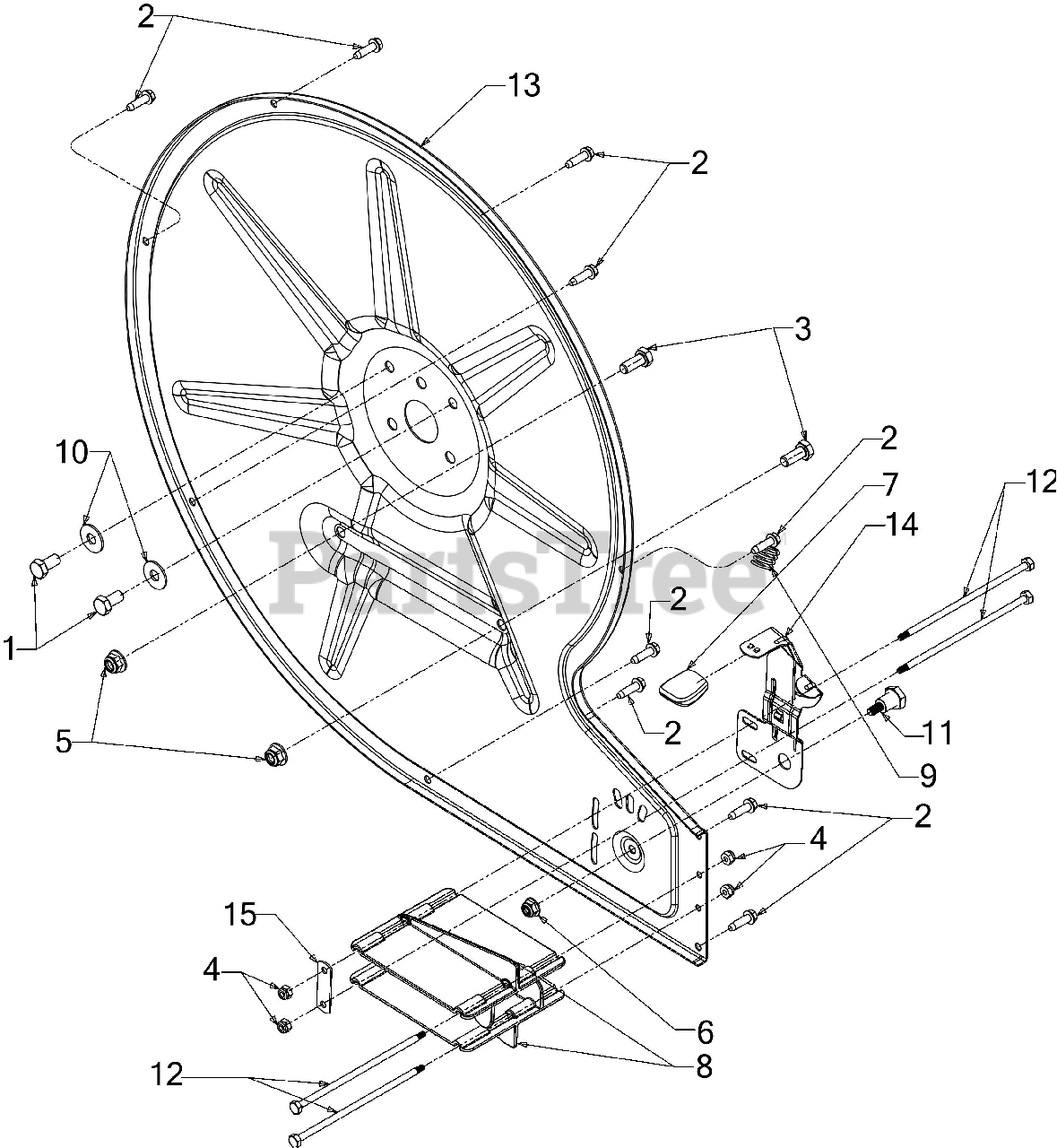

Louver Plate Parts Diagram

  • Title
1

Troy-Bilt 710-0237

HEX SCREW 5/16-24 x .62

$4.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-04373A

SCREW #12-16 .75

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-0426

HEIGHT ADJUSTMENT KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 731-05644

LOUVER BLOWER PLATE

$8.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 932-3042

COMPRESSION SPRING

$4.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 738-04222

SHOULDER SCREW .437X.50 1/4-20

$2.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 738-04223

SHOULDER SCREW 18 x 4.8 8-32 GR5

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 781-04165A

BACK BLOWER PLATE

Variations

Troy-Bilt 781-04165A-0606

PLATE-BACK BLOWER - MAJESTIC ORANGE (0606)

$59.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04165A-0638

PLATE-BACK BLOWER - MTD/TROY-BILT RED (0638)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04165A-0691

PLATE-BACK BLOWER - BLACK JACK (0691)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04165A-4021

PLATE-BACK BLOWER - CUB YELLOW 2 (4021)

$73.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

14

$22.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 781-04212-0637

GUIDE LOUVER PLATE

$7.99

$

Usually ships in 3-6 days

0
