TB 654 (24A-654E766) - Troy-Bilt Walk-Behind Blower (2005-2) General Assembly Parts Diagram

Walk-Behind Blower

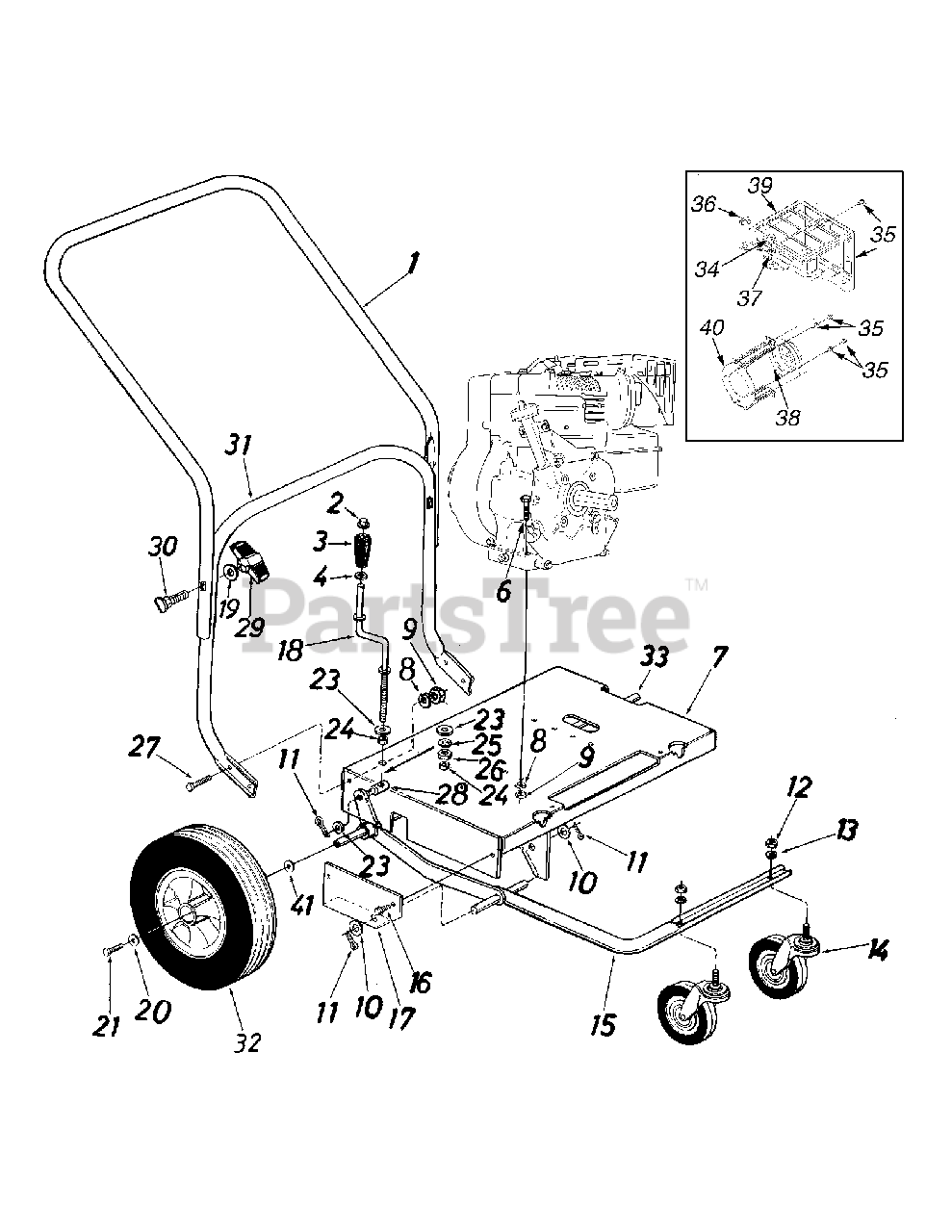

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 749-0784

Upper Handle
(Superseded to 749-0784-0637)

Variations

Troy-Bilt 749-0784-0637

HANDLE-UPPER-PAINT - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

$129.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 726-0100

Push Nut 3/8

$4.49

$

In Stock, Qty 18

0

3

Troy-Bilt 720-0171

Crank Knob
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 736-0117

Flat Washer.385 ID x.62 OD
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-0805

Hex Bolt 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 16453

Engine Mounting Frame Assembly

Variations

Troy-Bilt 16453-0637

FRAME ASSEMBLY-ENG MOUNTING - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 16453-0638

FRAME ASSEMBLY-ENG MOUNTING - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 16453-0691

FRAME ASSEMBLY-ENG MOUNTING - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 16453-0709

FRAME ASM-ENG MTG - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

8

Troy-Bilt 736-0119

Lock Washer 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0187

Flat Washer.63 ID x 1.25

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

14

Troy-Bilt 734-1036

Swivel Caster Wheel 5" Dia x 1.25

$75.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 16273

Caster Arm Assembly

Variations

Troy-Bilt 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)

$

$

Not available

Troy-Bilt 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)

$

$

Not available

Troy-Bilt 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

Troy-Bilt 710-0726

Hex Washer Screw 5/16x.75

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 14529

Caster Arm Bracket

Variations

Troy-Bilt 14529-0637

BRACKET-CASTER ARM - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 14529-0638

BRACKET-CASTER ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 14529-0691

BRACKET-CASTER ARM - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 14529-0709

CASTER ARM BRACKET - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

18

Troy-Bilt 747-0542

Height Adjustment Crank

$20.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0451

Saddle Washer.32 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

20

Troy-Bilt 736-0159

Flat Washer.34 ID x.87 OD

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-0170

Hex Lock Bolt 5/16-24 x.64

$6.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 736-0300

Flat Washer.38 ID x.57 OD

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 750-0528

Spacer.382 ID x.50 OD x.180Lg
(Superseded to 950-0528)

$

$

Not available

25

Troy-Bilt 736-0169

Lock Washer 3/8 ID

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0354

Hex Nut 3/8-8

$

$

Not available

27

Troy-Bilt 710-0118

Hex Bolt 5/16-18 x.75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

28

MTD 711-0797

Ferrule
(Superseded to 911-0797)

$

$

Not available

29

Troy-Bilt 720-0241

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 749-0785

Lower Handle

Variations

Troy-Bilt 749-0785-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

32

Troy-Bilt 734-1035

Wheel Assembly 12 x 3

$118.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 738-0185

Rear Axle

$

$

Not available

34

Troy-Bilt 710-0599

Self Tap Screw 1/4-20 x.5 (if equipped)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-1502

Screw 8-18 x.375 (if equipped)

$

$

Not available

36

Troy-Bilt 712-3004A

Hex Lock Nut 5/16-18 (if equipped)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-0329

Lock Washer (if equipped)
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

38

MTD 751-0447

Deflector (if equipped)

$

$

Not available

39

Troy-Bilt 751-0632

Muffler Guard (if equipped)

$

$

Not available

40

MTD 751-0646

Muffler Guard Bracket (if equipped)

$

$

Not available

41

Troy-Bilt 736-0162

Flat Washer

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0
