TB 654 (24A-654B766) - Troy-Bilt Walk-Behind Blower (2005-2) Impeller Parts Diagram

Walk-Behind Blower

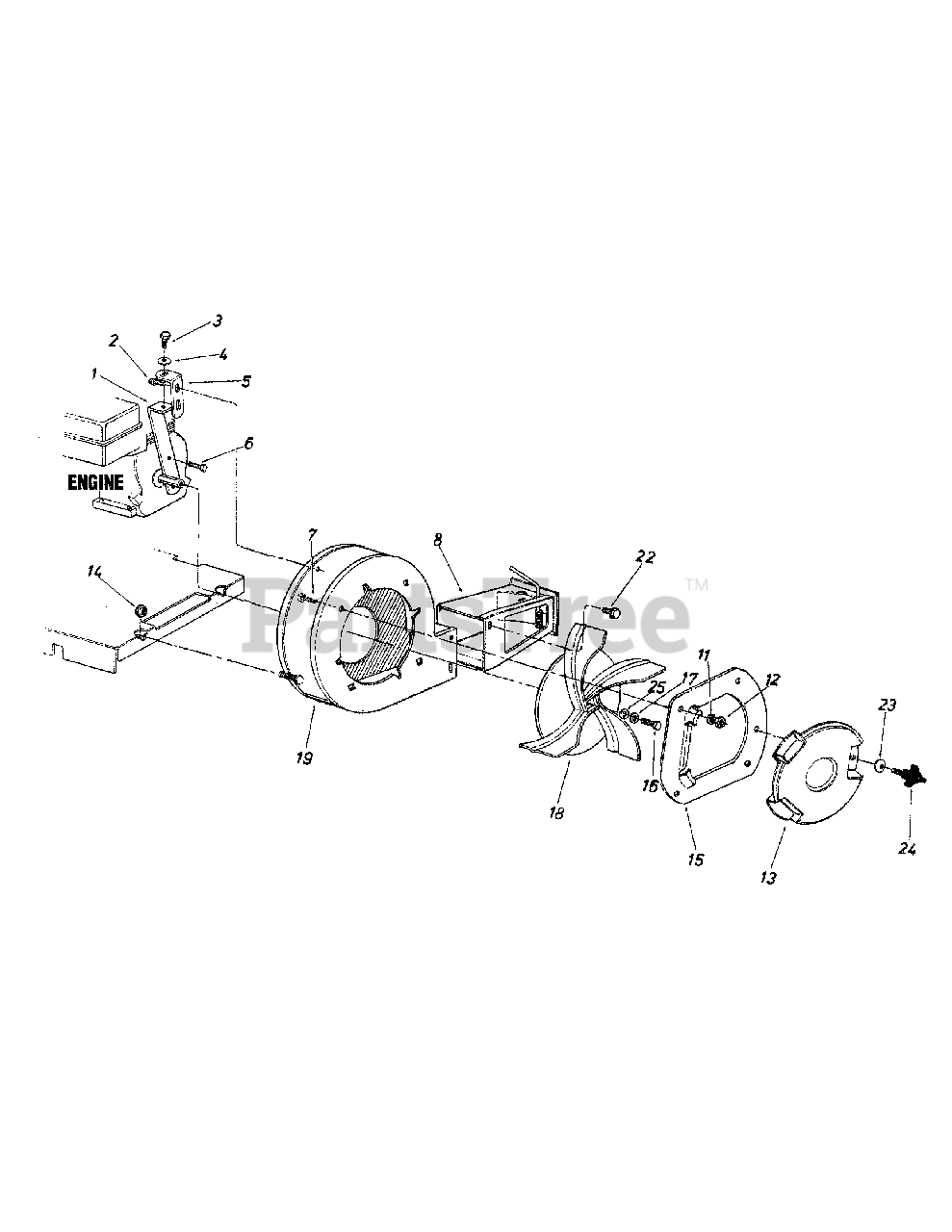

Impeller Parts Diagram

  • Title

1

Troy-Bilt 14540B

Engine Housing Brace Assembly
(Superseded to 14540B-0637)

Variations

Troy-Bilt 14540B-0637

BRACE-ENGINE HSG - POWDER BLACK (0637)

$

$

Not available

$

$

2

Troy-Bilt 710-0607

Hex Self Tapping Screw 5/16 x .5

$6.99

$

In Stock, Qty 11

0

3

Troy-Bilt 710-1260A

Hex Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0170

Special L-Washer 5/16" x.88 OD

$5.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

Troy-Bilt 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

6

Troy-Bilt 710-0627

Hex Locking Bolt 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

8

MTD 14479

Directional Discharge Assembly

Variations

Troy-Bilt 14479-0498

DISCHARGE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 14479-0637

DISCHARGE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 14479-0638

DISCHARGE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 14479-0691

DISCHARGE ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 14479-0483

DISCHARGE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 14479-0662

DISCHARGE ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 14479-0665

DISCHARGE ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 14479-0709

DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

11

Troy-Bilt 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 731-0608

Blower Guard

$

$

Not available

14

Troy-Bilt 711-0758

Hex Shoulder Nut .50"
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 14563A

Nozzle Plate Assembly

Variations

Troy-Bilt 14563A-0483

PLATE ASSEMBLY-NOZZLE - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 14563A-0498

PLATE ASSEMBLY-NOZZLE - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 14563A-0637

PLATE ASSY-NOZZLE - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 14563A-0638

PLATE ASSEMBLY-NOZZLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 14563A-0691

PLATE ASSY-NOZZLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 14563A-0709

PLATE ASSEMBLY-NOZZLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

Troy-Bilt 710-1254

Hex Bolt 3/8-24 x 1.25

$7.99

$

In Stock, Qty 8

0

17

Troy-Bilt 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 8

0

18

Troy-Bilt 681-0075A

Air Vane Plate Assembly

Variations

Troy-Bilt 681-0075A-0637

IMPLR ASM-BLOWER - POWDER BLACK (0637)

$

$

Not available

$

$

19

Troy-Bilt 14496B

Blower Housing Assembly

Variations

Troy-Bilt 14496B-0483

BLOWER HOUSING ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 14496B-0498

HOUSING ASM-BLOWER - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 14496B-0638

HOUSING ASM-BLOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 14496B-0662

BLOWER HOUSING ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 14496B-0665

BLOWER HOUSING ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 14496B-0691

BLOWER HOUSING ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 14496B-0709

BLOWER HOUSING ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

22

Troy-Bilt 710-0259

Hex Sems Bolt 5/16-18 x .62

$

$

Not available

23

Troy-Bilt 736-0242

Bell Washer .34 ID x .87 OD

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-3008

Screw 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0247

Flat Washer

$9.49

$

In Stock, Qty 14

0
