TB 65 SS (41CDT65G966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

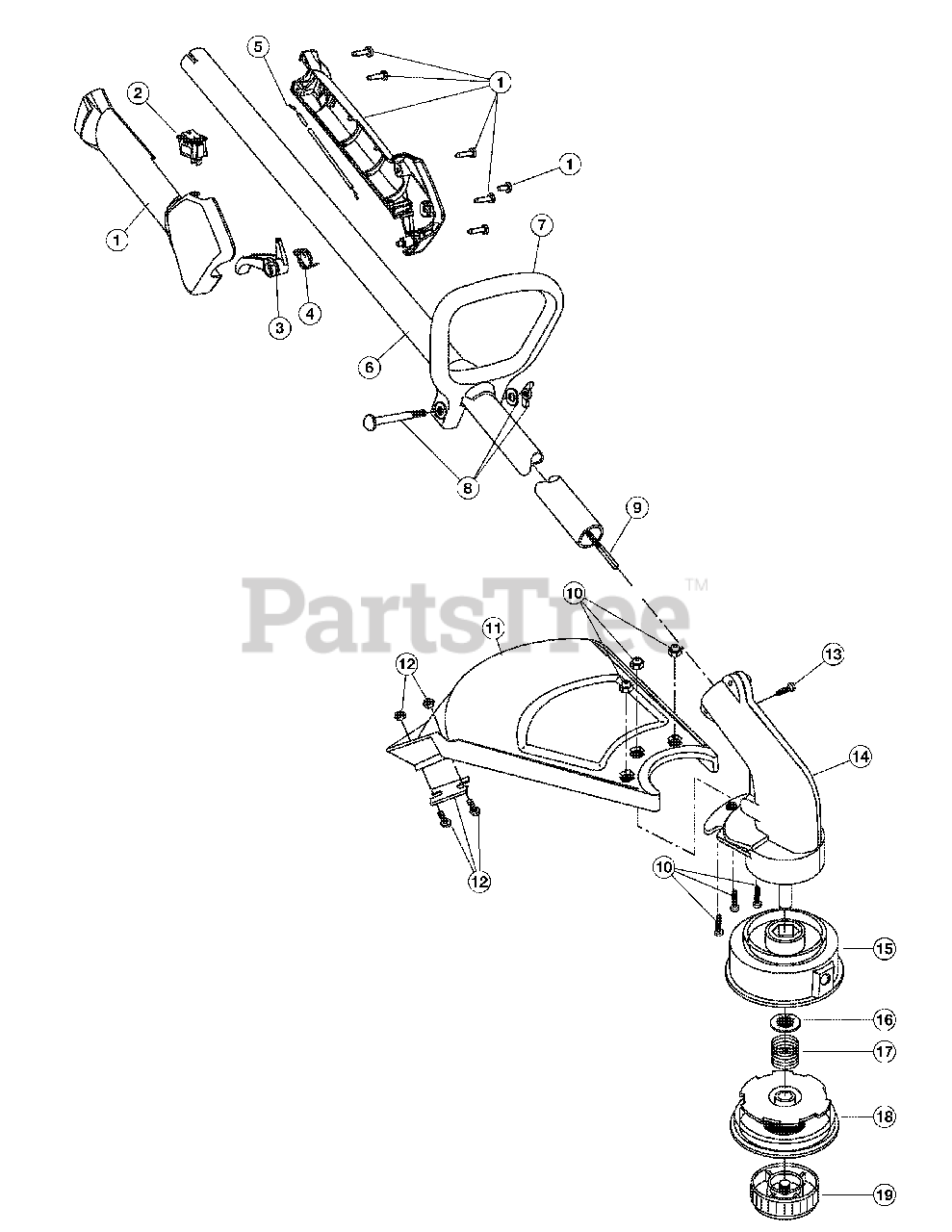

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 746-04085A

Throttle Cable

$10.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 753-06105

Drive Shaft Housing Assembly

$

$

Not available

7

Troy-Bilt 753-05461

D-Handle (Incl. Ref No. 8)

$22.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-04117

Flexible Drive Shaft

$64.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 791-180548

Guard Assembly (Incl. Ref No. 12)

$

$

Not available

12

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

14

Troy-Bilt 753-05185

Gearbox Assembly (Incl. Ref No. 15-19)

$

$

Not available

15

Troy-Bilt 791-153619

Outer Spool Assembly (Incl. Ref No. 16)

$27.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-610660

Retainer (10 pack)

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

Troy-Bilt 791-153577B

Reel & Line Assembly

Note: Not Shown

$28.99

$

In Stock, only 2 left!

0
