TB 65 SS (41ADT65G966) - Troy-Bilt String Trimmer ENGINE PARTS Parts Diagram

String Trimmer

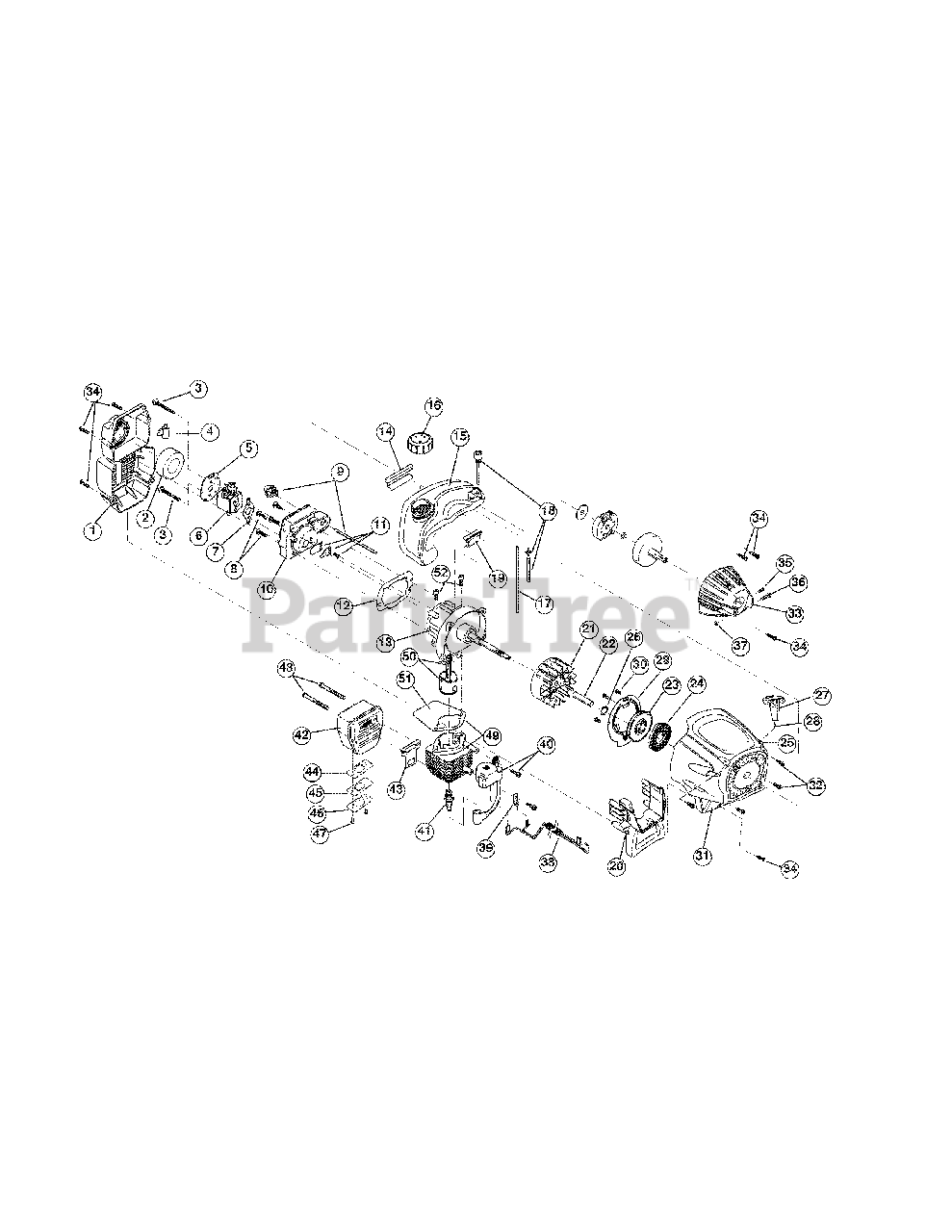

ENGINE PARTS Parts Diagram

  • Title

1

Troy-Bilt 753-04810

Air Cleaner Cover Assembly (includes 2 & 34)

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Troy-Bilt 753-04227

Choke Extension

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-04807

Carburetor Assembly (includes 7 & 18)

$93.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 17

0

10

Troy-Bilt 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-04321

Crankcase Service Assembly (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04307

Fuel Tank Assembly (includes 16-18)

$

$

Not available

16

Troy-Bilt 753-04084

Fuel Cap Assembly

$22.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 19

0

18

Troy-Bilt 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 12

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 791-182064

Shroud Extension & Stand (includes 34)
(Superseded to 753-04611)

$

$

Not available

21

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

MTD 791-610303

Spacer

$

$

Not available

23

Troy-Bilt 753-04459

Recoil Pulley Assembly
(Superseded to 753-04823)

$33.99

$

In Stock, Qty 8

0

24

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

25

Troy-Bilt 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 791-181247

Pulley Retainer
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

28

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 753-1201

Pressure Plate Assembly
(Superseded to 753-04417)

$

$

Not available

30

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-04887

Starter Housing Assembly(includes 23-30, 32 &34)

$

$

Not available

32

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

33

MTD 753-1204

Clutch Cover Assembly (includes 37-40)

$

$

Not available

34

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

36

Troy-Bilt 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

37

Troy-Bilt 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

38

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

39

MTD 791-611063

Ground Tab

$

$

Not available

40

Troy-Bilt 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 753-04618

Muffler Assembly (includes 46-51)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

44

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

45

MTD 753-04690

Exhaust Hood Diverter

$

$

Not available

46

MTD 753-04691

Exhaust Hood

$

$

Not available

47

Troy-Bilt 753-04315

Screws
(Superseded to 753-04110)

$

$

Not available

48

Troy-Bilt 753-04620

Muffler Mounting Bolts
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 753-04814

Cylinder Assembly (includes 51 & 52)

$83.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 753-04367

Piston and Rod Assembly

$

$

Not available

51

Troy-Bilt 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

Troy-Bilt 753-1209

Piston Ring Set

Note: (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04826

Short Block Assembly (includes 10, 13, &49-52)

Note: (NOT SHOWN)

$195.99

$

Usually ships in 3-6 days

0
