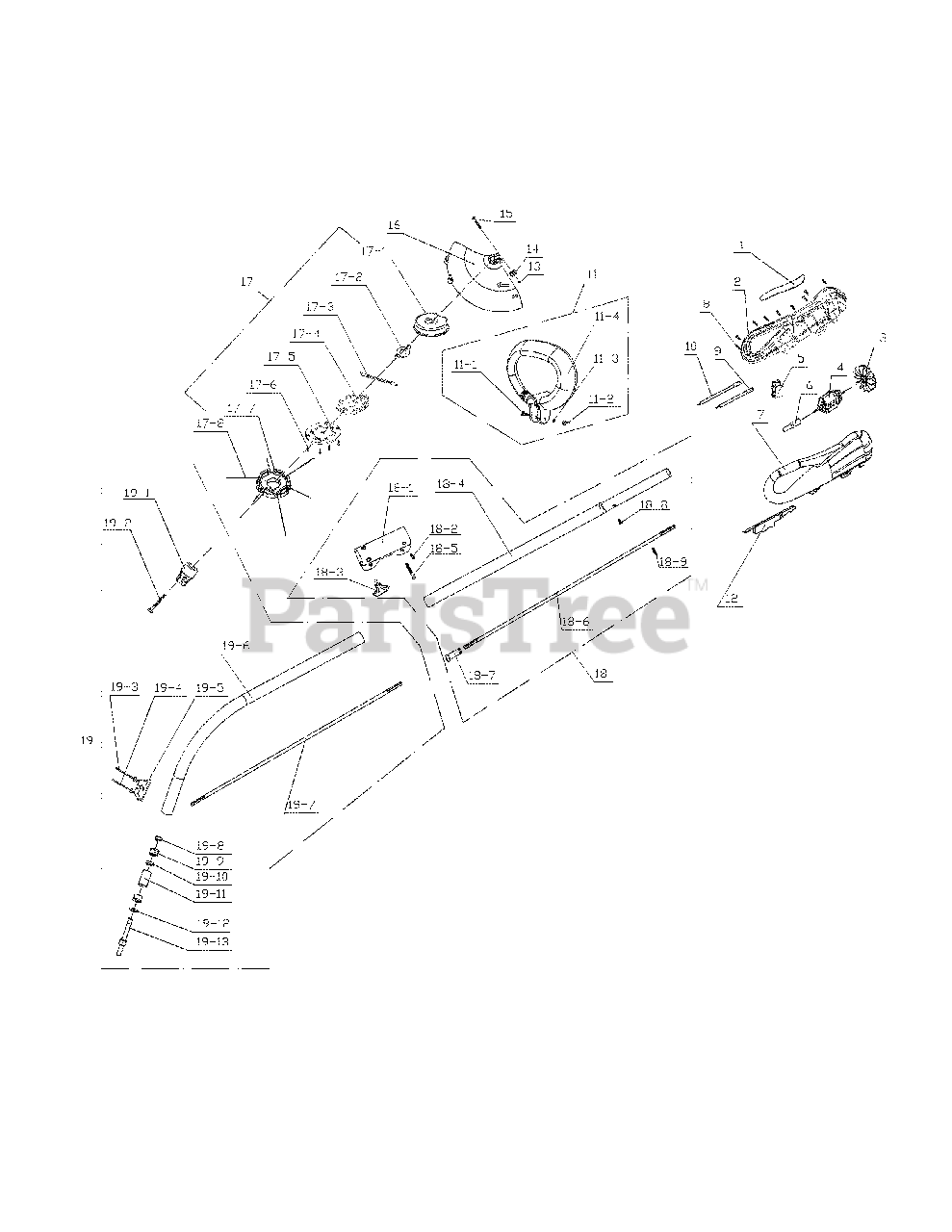

TB 65 REX (41AC65RP966) - Troy-Bilt String Trimmer, Electric General Assembly Parts Diagram

String Trimmer, Electric

General Assembly Parts Diagram

  • Title
1

MTD MC-6003-230301

READ HOUSING

$

$

Not available

2

MTD MC-6038-230305

HOUSING (R)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

6

MTD MC-6228-230304

CONNECTING HEAD ASS'Y

$

$

Not available

7

MTD MC-6038-230306

HOUSING (L)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

11

MTD MC-9228-332608

HANDLE ASS'Y

$

$

Not available

$

$

Not available

11-2

$

$

Not available

11-3

$

$

Not available

$

$

Currently unavailable

12

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

17

MTD MC-6228-230307

CUTTING LINE ASS'Y

$

$

Not available

$

$

Currently unavailable

17-2

$

$

Not available

17-3

$

$

Not available

17-4

MTD MC-6056-230304

PUSH BUTTON

$

$

Not available

17-5

Troy-Bilt MC-6158-230301

REX HEAD COVER

$

$

Not available

17-6

$

$

Not available

17-7

Troy-Bilt MC-6008-230303

SPOOL CARRIER
(Superseded to 753-05150)

$

$

Not available

17-8

Troy-Bilt MC-6194-230302

CUTTING LINE
(Superseded to 753-05150)

$

$

Not available

18

MTD MC-6228-230306

BAG BEHIND ASS'Y

$

$

Not available

18-1

MTD MC-9081-332101

CONNECTOR

$

$

Not available

18-2

$

$

Not available

18-3

$

$

Not available

18-4

MTD MC-6228-230305

BAG BEHIND

$

$

Not available

18-5

$

$

Not available

18-6

MTD MC-9111-332102

BACK SHAFT FLEX

$

$

Not available

18-7

MTD MC-9042-332101

CONNECTOR

$

$

Not available

18-8

$

$

Not available

18-9

MTD MC-9189-332101

GEAR SPRING

$

$

Not available

19

N/A

Order components

$

$

Not available

19-1

$

$

Not available

19-2

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

19-5

$

$

Not available

19-6

MTD MC-9228-A10112

BAG FRONT

$

$

Not available

19-7

MTD MC-9111-A10101

SHAFT FLEX ASS'Y

$

$

Not available

19-8

MTD MC-6131-230302

STEEL RING

$

$

Not available

19-9

$

$

Not available

19-10

$

$

Not available

19-11

$

$

Not available

19-12

$

$

Not available

19-13

MTD MC-6124-230303

CONNECTING HEAD

$

$

Not available
