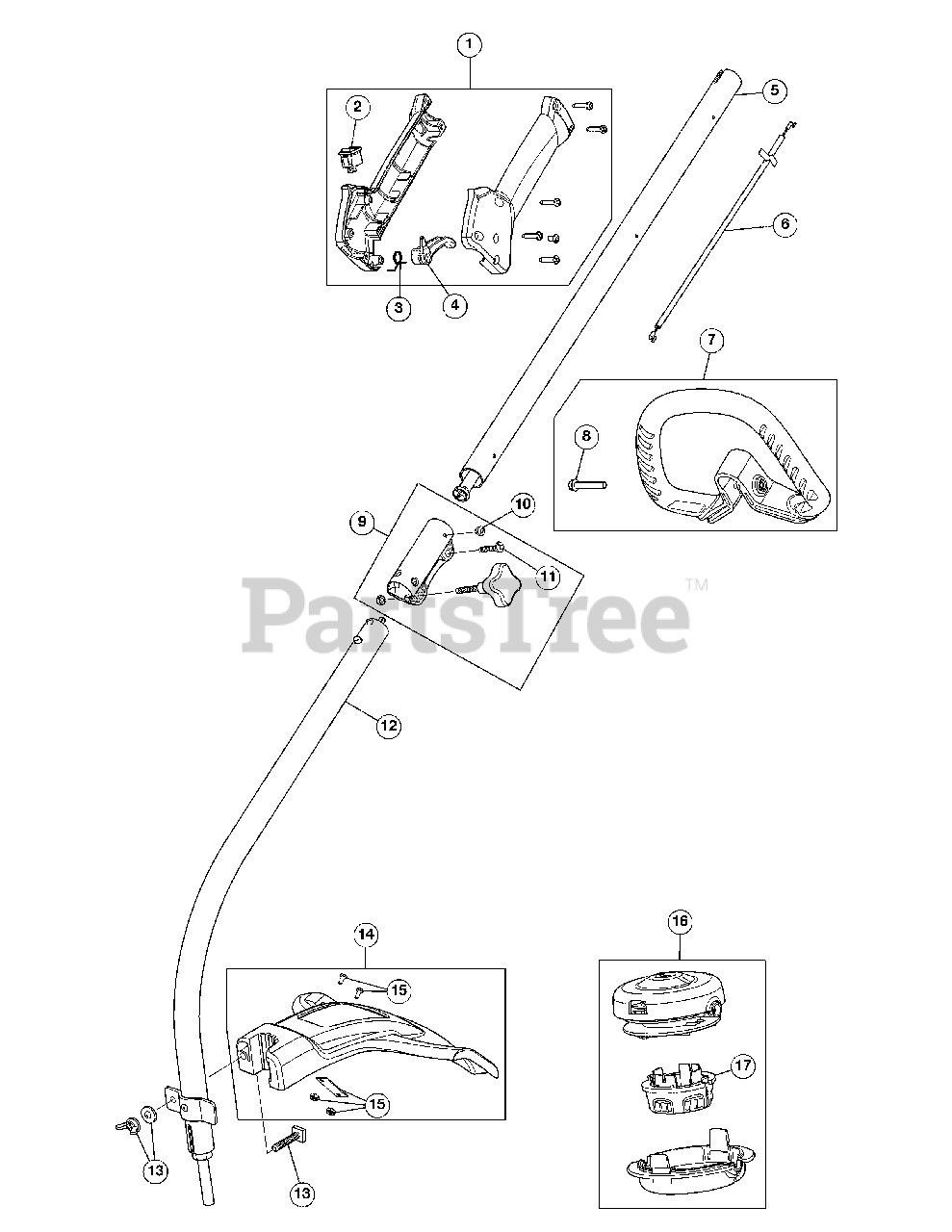

TB 625 EC (41ADZ62C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

Troy-Bilt 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, Qty 5

0

6

Troy-Bilt 746-05053

Throttle Cable Assembly

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 10-11)

$23.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 5

0

11

Troy-Bilt 791-181617

Coupler Bolt

$5.49

$

In Stock, Qty 11

0

12

Troy-Bilt 753-08155

Lower Drive Shaft Housing

$

$

Not available

13

Troy-Bilt 753-04282

Shield Mount Hardware

$25.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-04283

Shield Assembly (Incl. 15)

$50.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 753-08156

Cutting Head Assembly (Incl. 17)

$27.99

$

In Stock, Qty 18

0

17

Troy-Bilt 753-08157

Bump Knob

$5.49

$

In Stock, Qty 9

0

Troy-Bilt WLS-H95

Replacement Line, 0.095 Diameter Universal

Note: (Optional Accessory; Item Not Shown)

$10.99

$

In Stock, Qty 7
