TB 610 (18CGB2C7766) - Troy-Bilt Walk-Behind Mower, Electric (2018) Drive Parts Diagram

Walk-Behind Mower, Electric

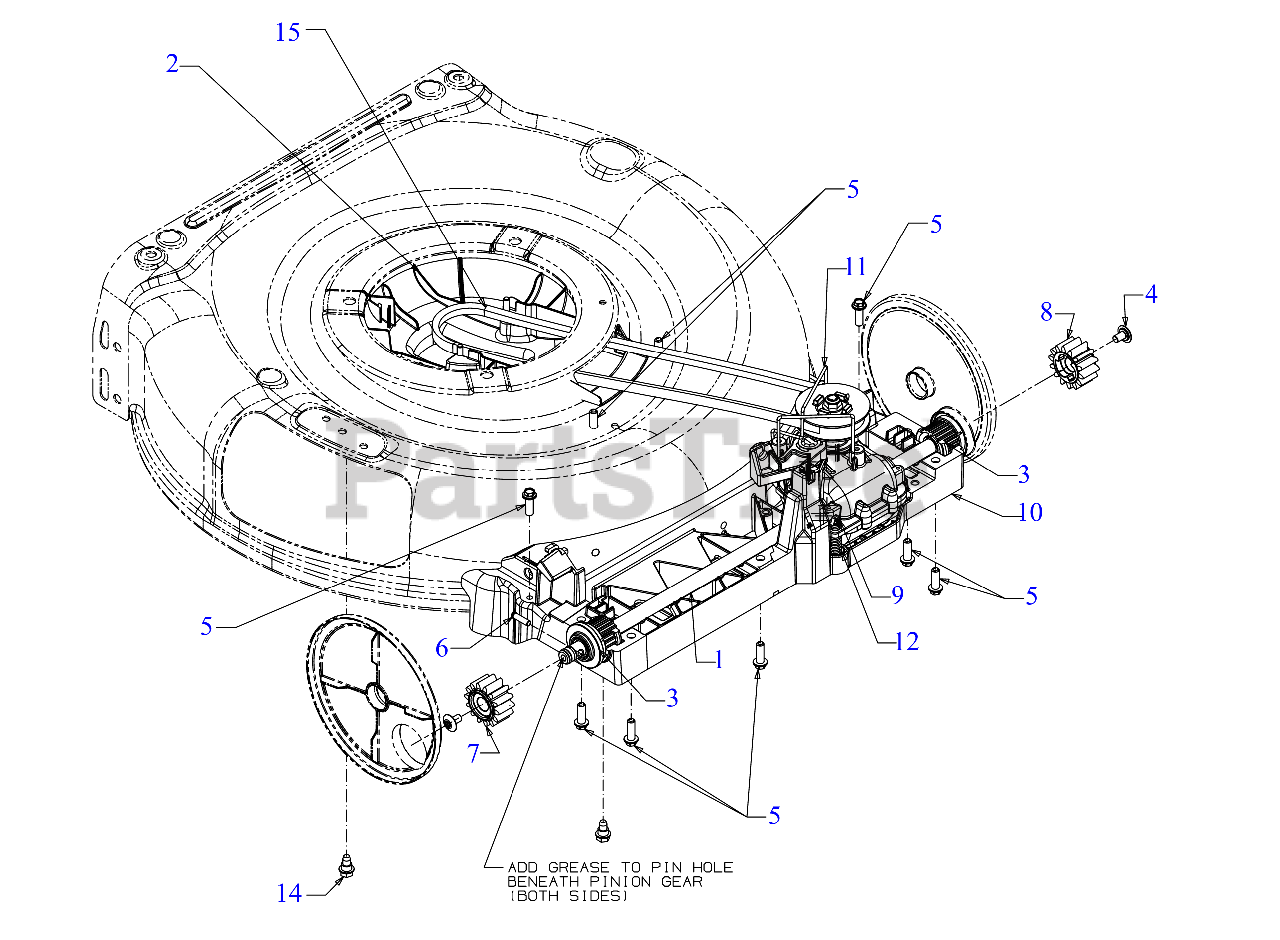

Drive Parts Diagram

  • Title

1

Troy-Bilt 918-04881C

FORWARD TRANSMISSION ASSEMBLY
(Superseded to 753-09444)

$148.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 721-04107A

OIL SEAL

Note: (Not Shown)

$4.99

$

In Stock, only 4 left!

0

1

Troy-Bilt 710-04329

SCREW .159 x .610

Note: (Not Shown)

$4.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 911-04547

INPUT WORM SHAFT

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 715-0129

SPRING PIN1/8 x .812

Note: (Not Shown)

$4.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 715-04103

DOWEL PIN

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

1

Troy-Bilt 741-04116

BALL BEARING

Note: (Not Shown)

$7.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 931-04535B

ENGINE BAFFLE ASSEMBLY
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

2

Troy-Bilt 715-04109

PIN

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 941-00019

BEARING ASSEMBLY

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-04531

SCREW 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 715-04099

DOWEL PIN

$4.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 917-04801

SPUR GEAR 14T (RH)

$9.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 917-04802

SPUR GEAR 14T (LH)

$9.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 731-07355

SPRING COMPRESSION

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-07789

LOWER TRAY
(Superseded to 731-07789A)

$33.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 732-04675A

TRANSMISSION WIRE
(Superseded to 732-04675B)

$3.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 732-04704

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 15

0

15

Troy-Bilt 954-04260

V-BELT 3L 34.18

$28.99

$

In Stock, Qty 20+
