TB 610 (18CGB2C7766) - Troy-Bilt Walk-Behind Mower, Electric (2017) Motor Housing Parts Diagram

Walk-Behind Mower, Electric

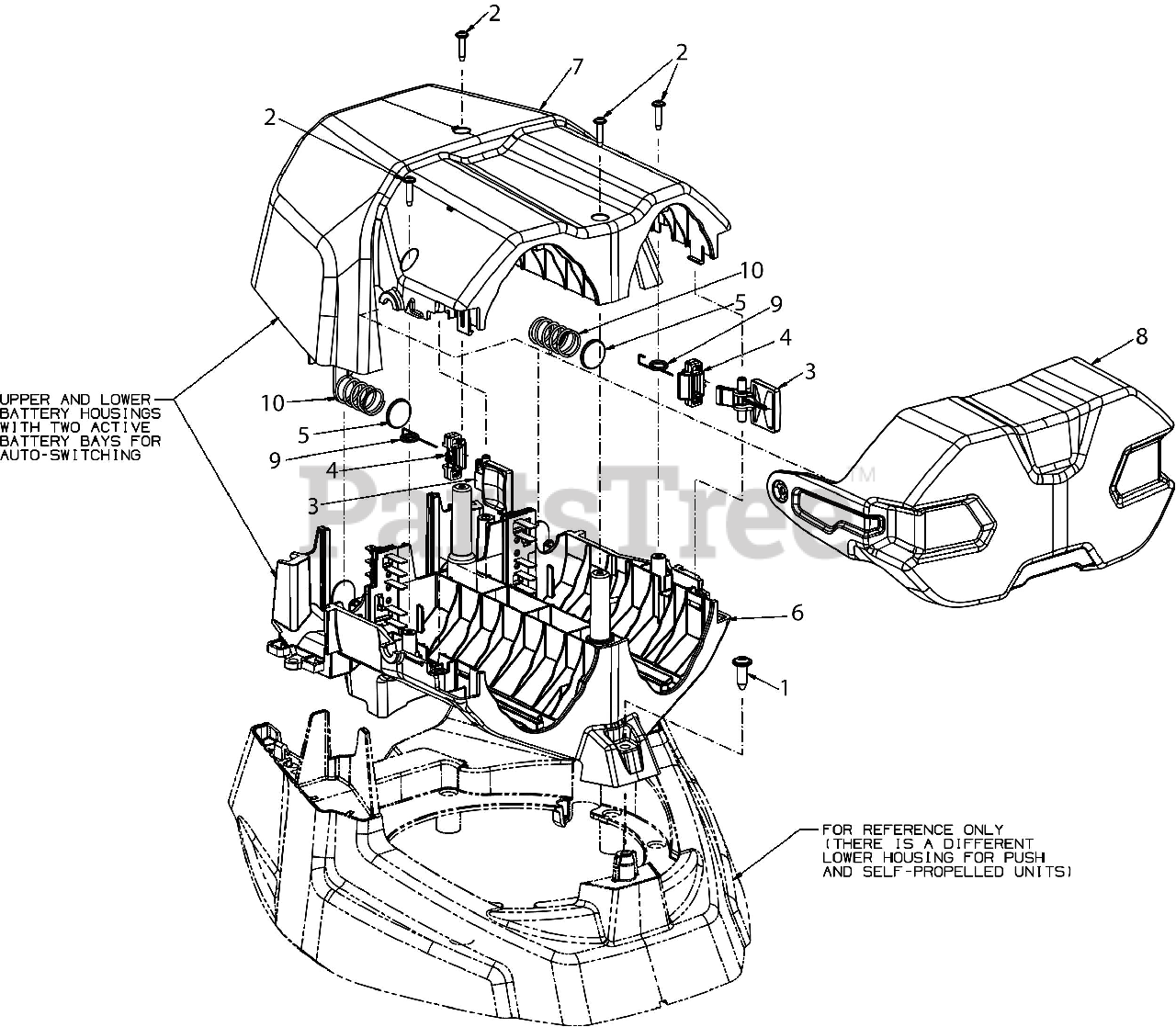

Motor Housing Parts Diagram

  • Title

1

Troy-Bilt 710-06476

SCREW - 1/4-10:.750

$

$

Currently unavailable

2

Troy-Bilt 710-06498

SCREW - #8-15:.710

$

$

Currently unavailable

3

MTD 731-11597

BATTERY RELEASE BUTTON

$

$

Not available

4

Troy-Bilt 731-11598

BATTERY RELEASE LATCH
(Superseded to 731-11598-10)

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-11649

BATTERY RELEASE SPRING CAP
(Superseded to 731-11649-1)

$3.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-11914

MIDDLE BATTERY HOUSING

$38.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-11915

DUAL BATTERY UPPER HOUSING

$48.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-11916

BATTERY HOUSING LID

$30.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

10

Troy-Bilt 732-05407

BATTERY RELEASE SPRING

$2.49

$

Usually ships in 3-6 days

0
